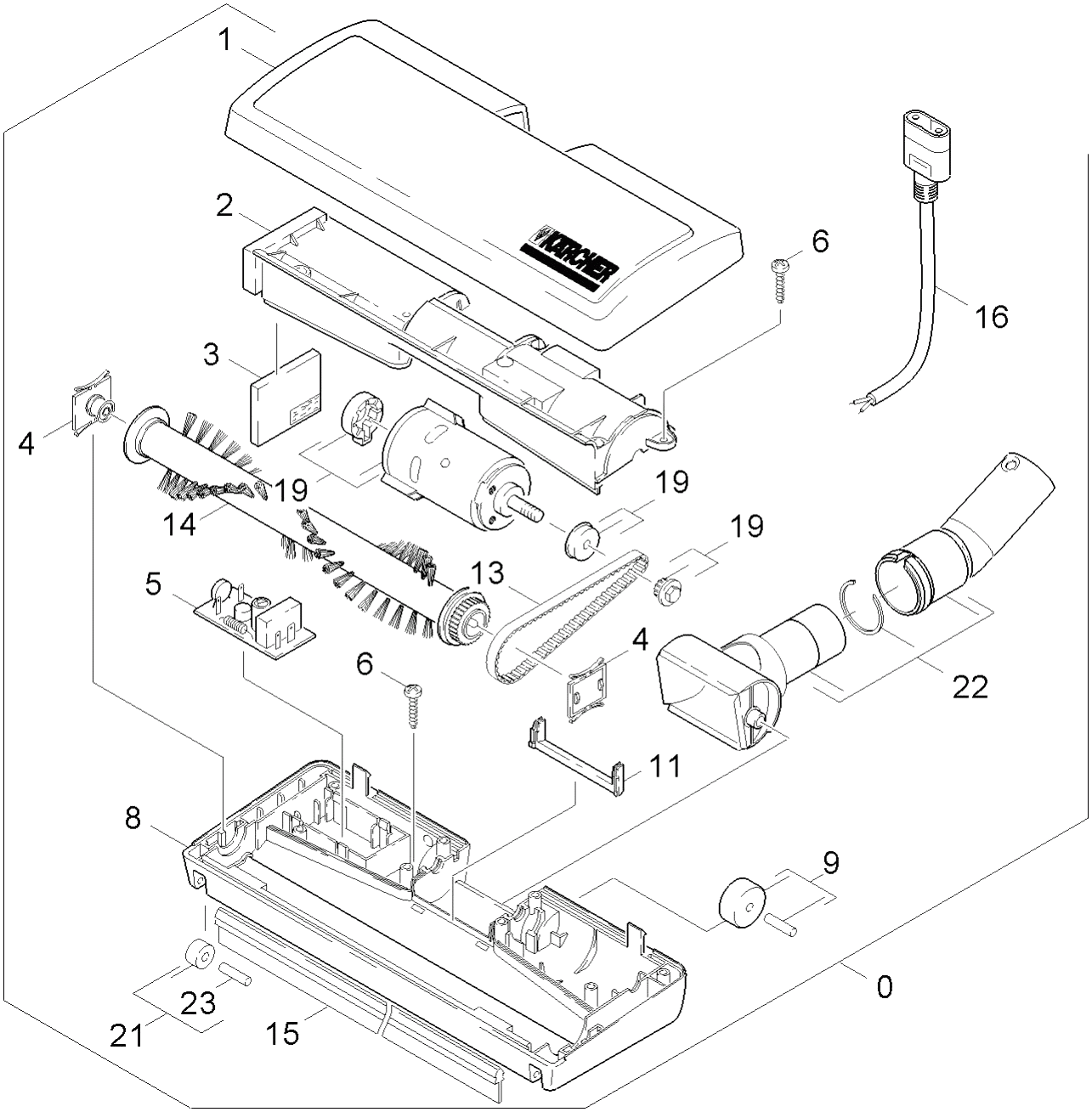

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 6.906-663.0 | Brush-head | |
| 1 | 6.905-980.0 | Housing top part | |
| 1 | 6.904-097.0 | Micro filter fleece | |
| 2 | 6.988-001.0 | Covering cap motor | |
| 3 | 6.988-002.0 | Counterweight | |
| 4 | 7.311-001.0 | Hexagon nut M4 -8-A2E ISO 4032 | |
| 4 | 5.037-077.0 | Hook | |
| 4 | 7.306-209.0 | Screw M 4X 20-A2-70 (In6Rd) | |
| 4 | 6.988-003.0 | Housing bearing | |
| 5 | 2.639-739.0 | Repair set | |
| 5 | 6.988-004.0 | Circuit board | |
| 6 | 6.903-889.0 | Elbow | |
| 6 | 6.988-016.0 | Screw | |
| 7 | 6.902-065.0 | Clamp sleeve | |
| 8 | 6.902-112.0 | Threaded ring | |
| 8 | 6.905-981.0 | Housing bottom part | |
| 8 | 5.363-308.0 | Joint ring | |
| 9 | 4.440-907.0 | Suction hose with elbow antistatic | |
| 9 | 4.515-342.0 | Roller complete with axle | |
| 9 | 5.408-038.0 | Tube elbow | |
| 10 | 6.903-850.0 | Suction tube DN 32 | |
| 10 | 5.343-010.0 | Locking ring | |
| 11 | 4.408-051.0 | Tube elbow | |
| 11 | 6.988-006.0 | Covering cap cable | |
| 11 | 6.906-077.0 | Elbow | |
| 11 | 6.273-058.0 | Sealing tape cellularrubber 9x4 | |
| 12 | 6.362-801.0 | Seal | |
| 13 | 6.988-007.0 | Toothed belt | |
| 13 | 5.032-729.0 | Slider | |
| 13 | 5.343-013.0 | Locking ring | |
| 14 | 6.905-938.0 | Roller brush only for replacement | |
| 14 | 5.031-703.0 | Tension ring C35 | |
| 15 | 6.273-218.0 | Rubber lip | |
| 16 | 6.647-787.0 | Spiral cable with plug | |
| 16 | 6.906-708.0 | Cable ESB 28 | |
| 17 | 6.988-008.0 | Pinion | |
| 18 | 6.988-009.0 | Motor flange | |
| 19 | 6.988-019.0 | Motor complete | |
| 20 | 6.988-011.0 | STORAGE (MOTOR) | |
| 21 | 6.905-520.0 | Roller complete D13 | |
| 22 | 6.906-707.0 | Swivel joint ESB 28 | |
| 23 | 6.906-712.0 | Axle front only for replacement |
