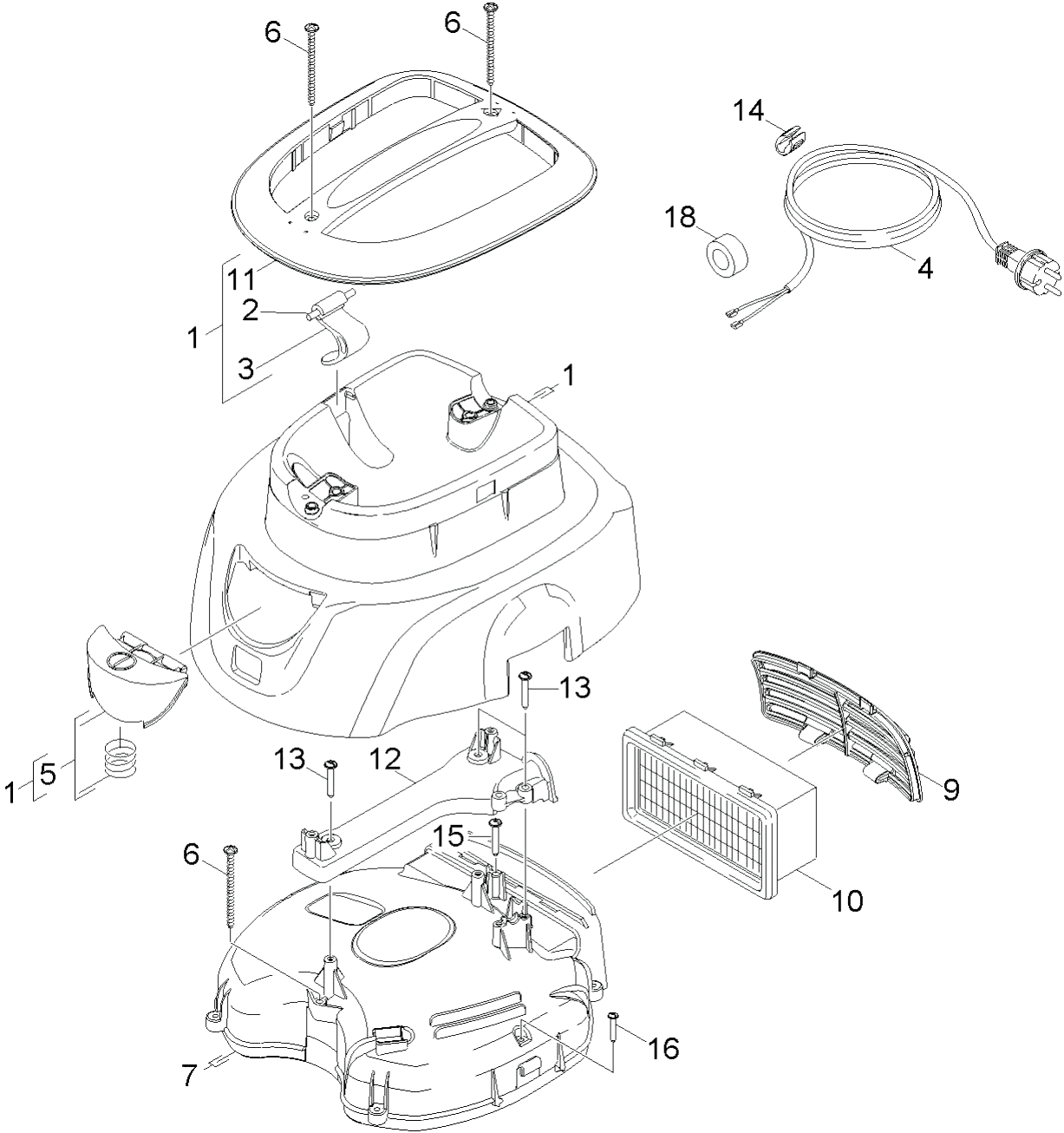

Karcher (Керхер) Корпус (0.166-462.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.069-011.0	Cover complete only for replacement
2	7.314-032.0	Straight pin 5m6x50 -St ISO 2338
3	5.032-597.0	Catch for cable
4	6.649-580.0	Power cable 15m PUR *EU
5	4.324-019.0	Pushbutton complete
6	7.303-118.0	Screw 5x40 -A2-70 (IN6Rd)
7	6.959-003.0	Cartridge filter
7	4.692-036.0	Air circulation complete only for replac
8	6.310-052.0	Knurled nut
9	5.033-650.0	Grate exhaust opening qusty grey RAL 703
10	6.362-163.0	O-Ring seal 30,2 X 3,0-NBR 70
10	6.414-801.0	Filter HEPA
11	6.906-077.0	Elbow
11	5.321-771.0	handhold
12	6.905-054.0	Filter cloth
12	5.672-305.0	Fixed adapter
13	6.903-292.0	Locking hook
13	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
14	6.903-294.0	Joint closure
14	5.033-928.0	Plug fixing RAL 1018
15	6.903-355.0	Holder closure
15	7.303-234.0	Screw 5x60 -10.9-A2K (K-In6Rd)
16	6.959-416.0	Tank complete
16	6.959-004.0	Емкость
16	6.905-051.0	Емкость
16	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
17	6.903-258.0	Double castor
17	6.435-353.0	Castor D 42
18	6.905-055.0	Filter protection
18	6.346-043.0	Ferrite ring
19	5.343-010.0	Locking ring
20	6.905-053.0	Suction nipple
21	7.306-071.0	Screw M5x10 -8.8-R2R (In6Rd)
22	6.903-402.0	Upholstery nozzle DN32
23	6.903-403.0	Crevice nozzle DN32
