Karcher (Керхер) Корпус (0.166-467.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

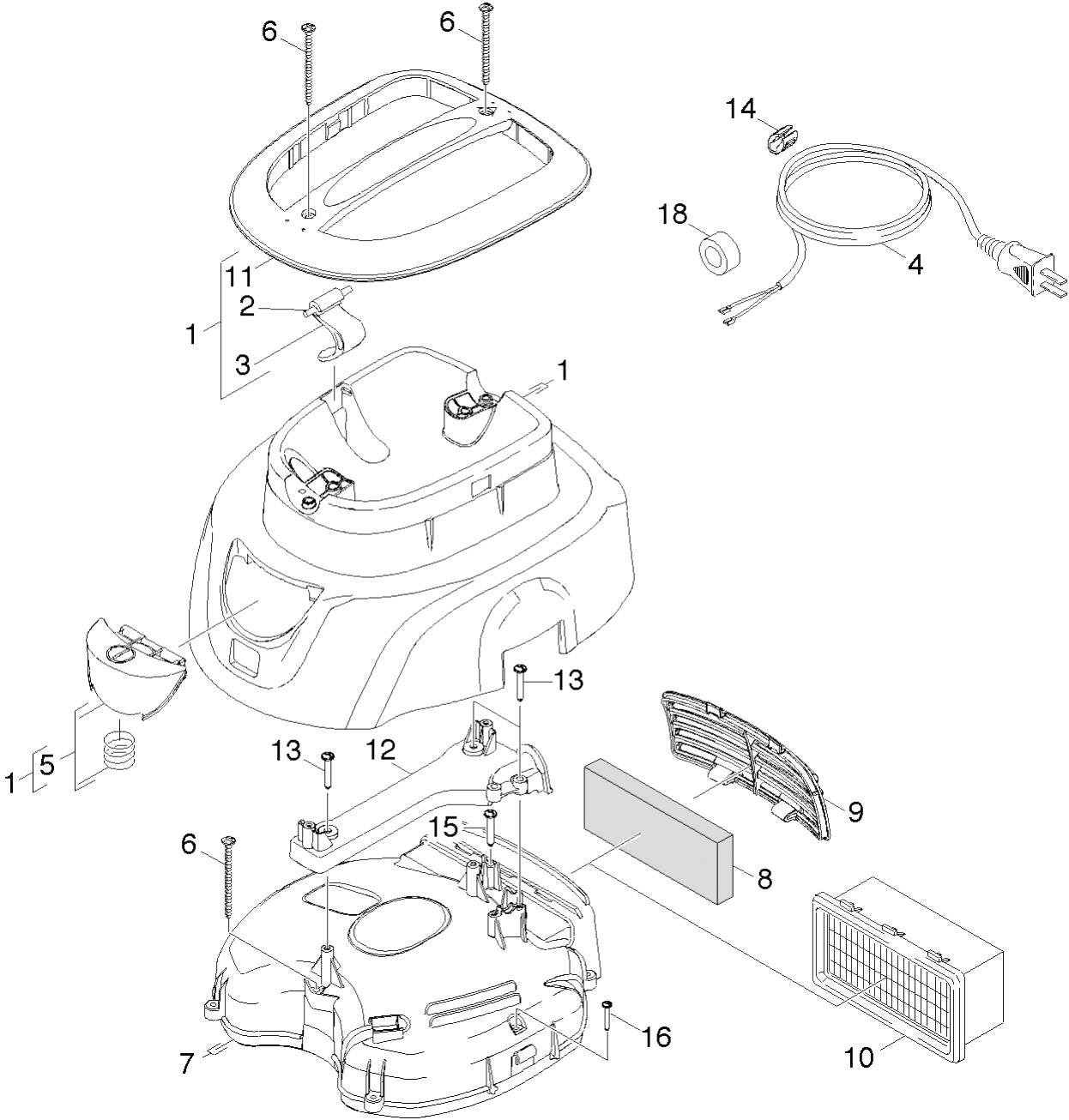

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.069-012.0	Cover only for replacement
2	7.314-032.0	Straight pin 5m6x50 -St ISO 2338
3	5.032-597.0	Catch for cable
4	6.649-640.0	Power cable 15m PVC
5	4.324-019.0	Pushbutton complete
6	7.303-118.0	Screw 5x40 -A2-70 (IN6Rd)
7	4.839-436.0	Electrical small parts T 8/1
7	4.692-031.0	Air circulation complete
8	5.692-120.0	Air circulation ALA
8	6.414-802.0	Blowing filter
9	9.755-250.0	Blowing filter set
9	5.033-650.0	Grate exhaust opening qusty grey RAL 703
10	6.414-801.0	Filter HEPA
10	5.033-788.0	Adapter strain relief ALA
11	5.321-727.0	Handhold
11	5.033-789.0	Strain relief ALA
11	5.321-771.0	handhold
12	6.346-043.0	Ferrite ring
12	6.303-547.0	Screw 4x50 -10.9-IN6RD T20
12	5.672-305.0	Fixed adapter
13	6.346-043.0	Ferrite ring
13	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
14	9.770-650.0	Cable with plug ALA *EU
14	5.033-938.0	Plug fixing *JP RAL 1018
15	7.303-234.0	Screw 5x60 -10.9-A2K (K-In6Rd)
16	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
18	6.346-043.0	Ferrite ring
