Karcher (Керхер) Корпус (0.165-915.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

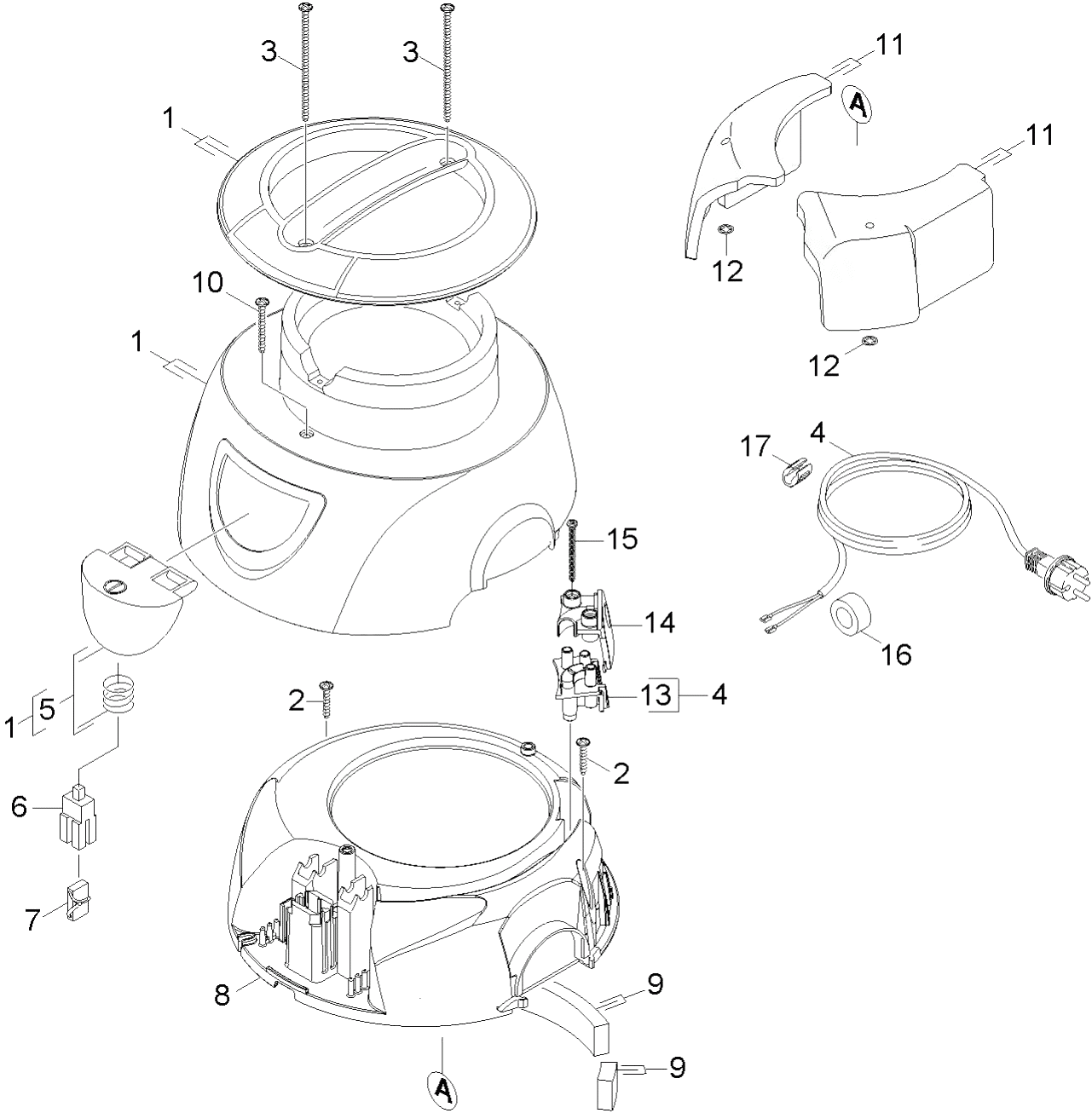

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.069-007.0	Cover complete T 7/ 1 Advanced
2	7.303-084.0	Screw 4x25 -10.9-R2R (K-In6Rd)
3	7.303-155.0	Screw 5x100-A2-70 (IN6RD)
4	5.363-618.0	Bearing motor bottom T12/1
4	4.880-080.0	Spare part set power cable
5	5.032-568.0	Locking clip
5	5.033-412.0	Locking clip
5	4.324-023.0	Pushbutton complete T 7/1
6	4.605-083.0	Корпус в сборе T 7/1
6	6.630-032.0	Switch
7	5.731-649.0	Filtering basket packaged
7	4.839-357.0	Electrical small parts T 7/1
7	5.731-624.0	Filtering basket packaged T 7/1
8	5.692-106.0	Air circulation
8	6.414-611.0	Filter 5 St.
8	5.692-116.0	Air circulation basalt grey RAL 7012
9	5.032-674.0	Grate filter motor protecting
9	2.889-081.0	Filter blowing filter 3 St.
10	6.273-261.0	Seal string cellular rubber D6 850 +/-5
10	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
11	6.286-505.0	Insulating mat set
12	6.343-145.0	Lock washer 5
13	6.490-274.0	Thermal switch 125°C
13	5.033-894.0	Adapter strain relief
14	5.032-888.0	Strain relief T 7/1
15	6.303-547.0	Screw 4x50 -10.9-IN6RD T20
16	6.346-043.0	Ferrite ring
17	5.032-940.0	Plug fixing
