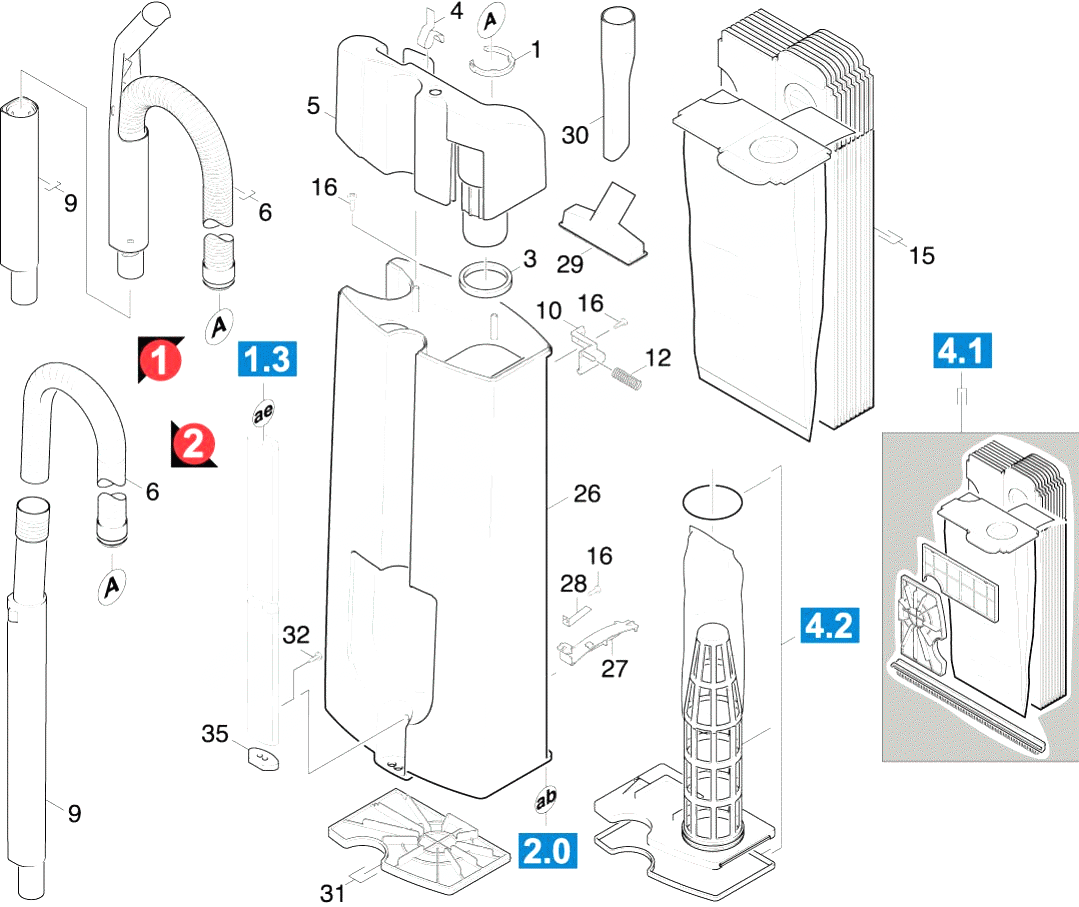

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.762-371.0 | Верхняя часть щетки | |
| 0 | 4.762-221.0 | Brush-head CW 100 | |
| 1 | 5.031-011.0 | Locking ring | |
| 1 | 5.060-656.0 | Housing top part | |
| 1 | 5.731-047.0 | Filter motor protecting | |
| 2 | 5.382-132.0 | Label CW 50 | |
| 2 | 5.731-048.0 | Filter | |
| 3 | 6.362-860.0 | Seal | |
| 3 | 6.682-291.0 | Printed circuit board 230V | |
| 3 | 6.906-097.0 | Filter bags 10 St. | |
| 4 | 7.303-129.0 | Screw 4x16 -10.9-R2R (K-In6Rd) | |
| 4 | 6.905-861.0 | Brush strip | |
| 4 | 6.905-691.0 | Brush strip | |
| 5 | 5.060-660.0 | Housing accessories yellow | |
| 5 | 7.312-281.0 | Washer 4 -200HV-A2E ISO7093-1 | |
| 5 | 5.031-451.0 | Ring | |
| 6 | 6.390-253.0 | Suction hose DN32 | |
| 6 | 4.025-398.0 | Suction tube above complete | |
| 6 | 5.031-009.0 | Bearing motor bottom part | |
| 6 | 5.031-164.0 | Moulded part | |
| 7 | 6.612-384.0 | Motor -240V (LAMB) | |
| 7 | 6.612-403.0 | Motor | |
| 8 | 6.648-055.0 | Cable | |
| 9 | 4.025-399.0 | Suction tube bottom complete | |
| 9 | 5.029-293.0 | Suction tube | |
| 9 | 6.647-862.0 | Cable with plug | |
| 10 | 5.031-012.0 | Retaining clip filter bag | |
| 10 | 5.481-148.0 | Lever right | |
| 11 | 5.515-070.0 | Adjusting wheel | |
| 12 | 5.332-361.0 | Helical spring | |
| 12 | 6.648-707.0 | Slider locking part | |
| 13 | 5.352-043.0 | Pinion | |
| 14 | 6.348-266.0 | Toothed belt | |
| 14 | 6.348-277.0 | Toothed belt | |
| 15 | 6.906-097.0 | Filter bags 10 St. | |
| 16 | 7.303-116.0 | Screw 4x12-A2-70 (IN6RD) | |
| 16 | 6.362-906.0 | Joint ring D.26 | |
| 17 | 4.481-120.0 | Lever left -CW 50- | |
| 17 | 6.362-907.0 | Seal | |
| 18 | 6.273-058.0 | Sealing tape cellularrubber 9x4 | |
| 19 | 5.105-239.0 | Axle | |
| 19 | 4.481-120.0 | Lever left -CW 50- | |
| 20 | 5.031-155.0 | Bracket top part | |
| 20 | 5.112-571.0 | Bush | |
| 21 | 5.105-241.0 | Axle | |
| 22 | 6.273-058.0 | Sealing tape cellularrubber 9x4 | |
| 22 | 5.390-913.0 | Label red pedestal | |
| 26 | 5.060-775.0 | Housing yellow | |
| 26 | 5.061-045.0 | Housing black neutrally | |
| 26 | 5.060-546.0 | Корпус серый K 35E | |
| 27 | 5.042-836.0 | Holder filter | |
| 28 | 5.332-339.0 | Spring | |
| 29 | 6.900-233.0 | Upholstery nozzle DN35 | |
| 30 | 6.905-531.0 | Crevice nozzle DN35 | |
| 31 | 5.731-047.0 | Filter motor protecting | |
| 32 | 7.303-031.0 | Screw M4x10 -St-P2R (In6Rd) | |
| 35 | 5.363-351.0 | Seal |
