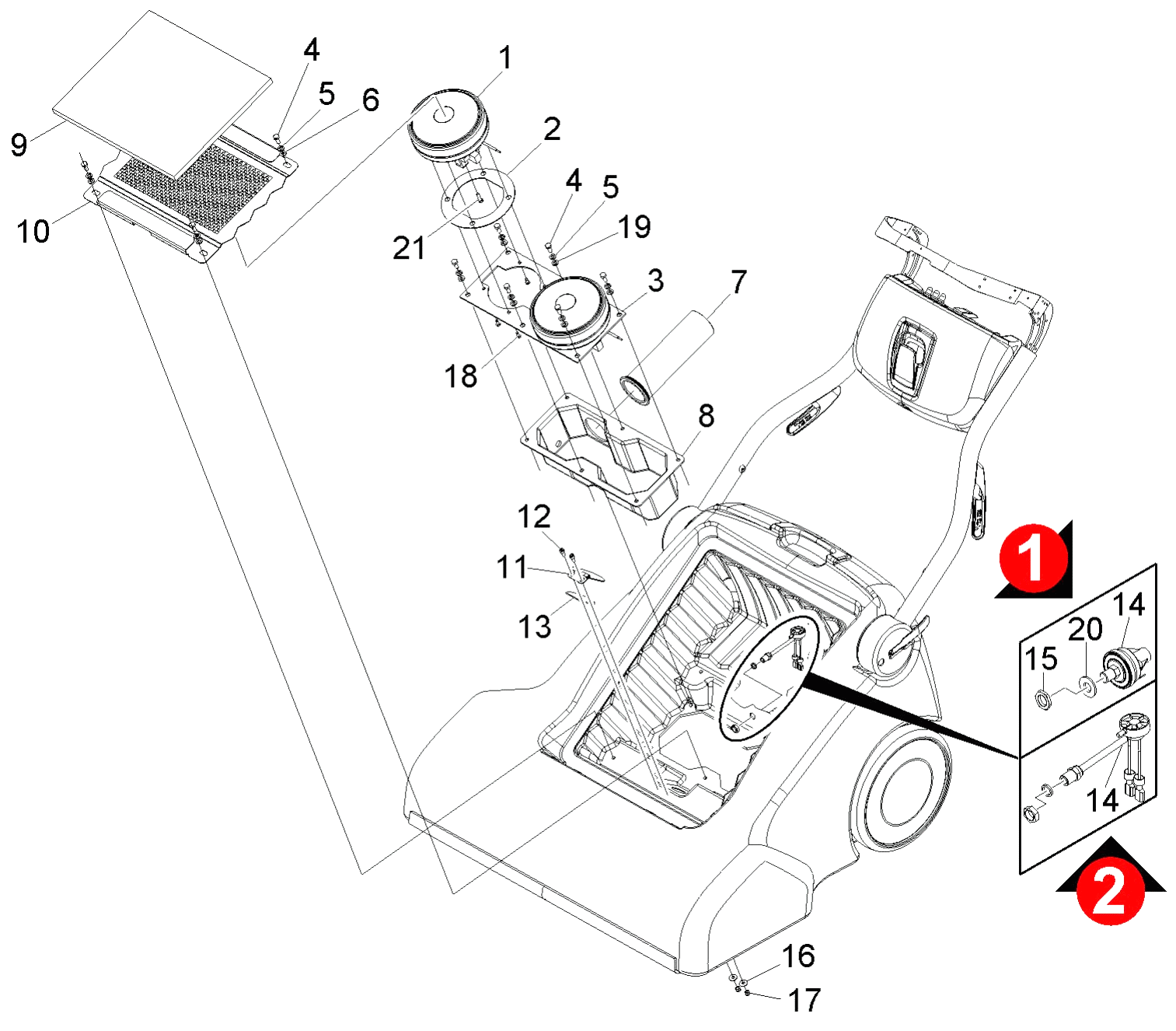

Karcher (Керхер) Турбина (0.164-854.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
8.622-552.0 |
VAC MOTOR, 230V 5.7 1ST TF |
|
| 1 |
8.634-955.0 |
MOTOR, VAC, 220-240 50HZ, 600W |
|
| 2 |
8.621-831.0 |
GASKET, 5.50OD X 3.85ID X .06 |
|
| 3 |
8.622-307.0 |
PLATE, MOUNT, VAC MOTOR |
|
| 4 |
8.629-343.0 |
SCREW, M6-1 X 15 HHCS GR10.9 BLKOX |
|
| 5 |
8.617-331.0 |
WASHER,SPRNG LK,M6,DIN127B,SST |
|
| 6 |
8.627-907.0 |
WASHER, M6 FLAT |
|
| 7 |
8.629-045.0 |
TUBE, EXHAUST, VAC CHAMBER |
|
| 8 |
8.629-012.0 |
BOX, ENCLOSURE, VAC MOTOR |
|
| 9 |
8.621-785.0 |
FILTER, VAC CHAMBER |
|
| 10 |
8.622-396.0 |
SCREEN, VAC CHAMBER |
|
| 11 |
8.623-476.0 |
COVER, ACCESSORY PORT |
|
| 12 |
8.629-339.0 |
SCREW, M5-.8 X 15 SCHCS GR10.9 BLKOX |
|
| 13 |
8.600-378.0 |
GASKET, ACCESSORY PORT |
|
| 14 |
8.634-351.0 |
"""SWITCH, VACUUM, 250VAC, 15"""" H2O """ |
|
| 14 |
8.625-716.0 |
"""SWITCH VACUUM 15"""" H20 NC/NO """ |
|
| 15 |
8.613-735.0 |
WASHER, 1/8NPT BRASS |
|
| 16 |
8.617-333.0 |
WASHER, M5, FLAT, ISO7093, SS |
|
| 17 |
8.602-475.0 |
Nut, M5 hex nylock, ss |
|
| 18 |
8.627-738.0 |
SCR, M4.8 X 16 PHTF |
|
| 19 |
8.622-573.0 |
WASHER, M6 (20.5 ODX1.6T) PLT |
|
| 20 |
8.601-072.0 |
Washer M10 X 30 PLTD |
|
| 21 |
8.628-845.0 |
SCR, M4.8 X 10 PHTF TYPE B |
|
