Karcher (Керхер) Верхняя часть (0.163-754.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

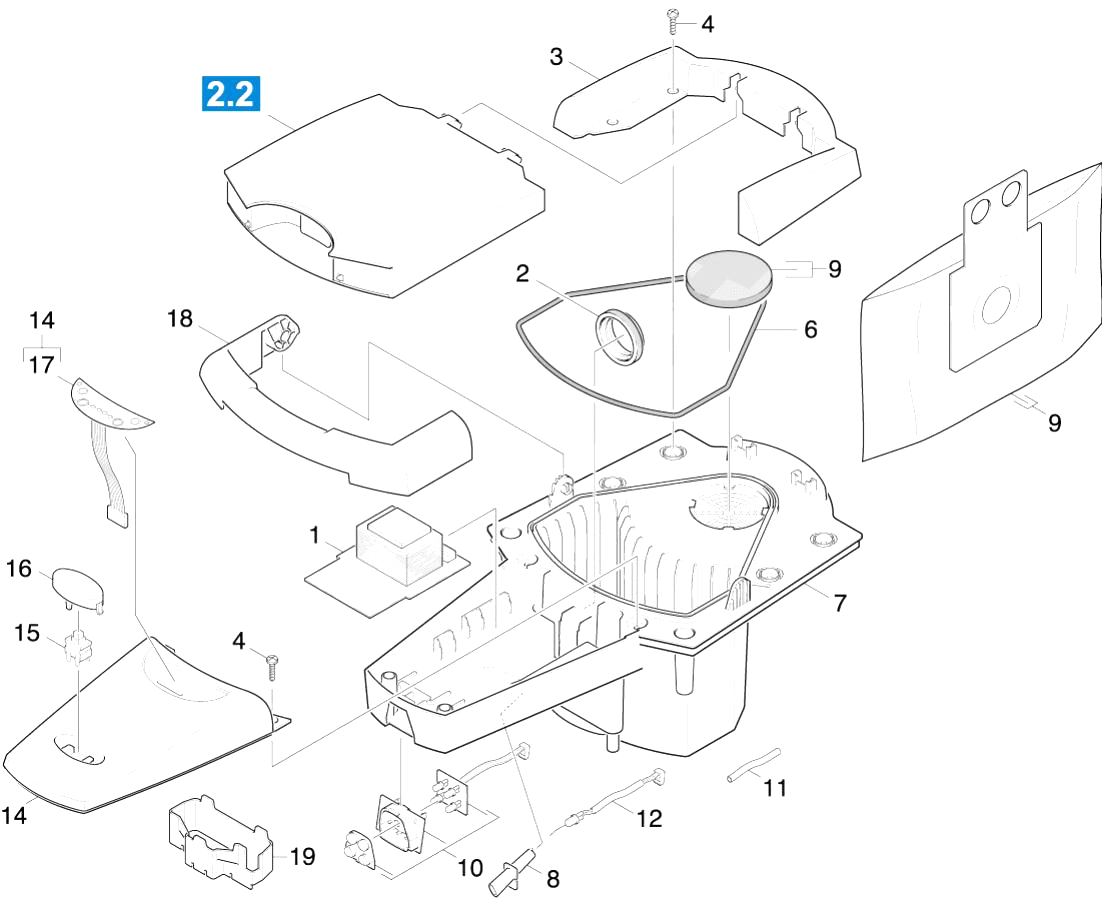

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.682-697.0	Electronics charging station RC-3000/ 12
1	6.682-601.0	Electronics charging station RC 3000
2	5.363-593.0	Joint ring
3	7.303-092.0	Screw 3x12 -10.9-R2R (K-In6Rd)
3	5.031-923.0	Covering cap
4	4.669-013.0	Dust sensor complete
4	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
5	6.630-332.0	Micro switch
6	5.672-231.0	Holder
6	6.273-224.0	Cord cellular rubber D5
7	4.481-000.0	Foot pedal complete only for replacement
7	4.181-001.0	Charge contact complete
7	5.031-924.0	Carrier
7	5.032-615.0	Carrier
8	5.515-188.0	Wheel
8	4.669-014.0	Drop sensor complete
8	5.031-925.0	Retainer sensor
9	6.906-643.0	Roller brush black
9	4.669-015.0	Drop sensor complete
9	6.904-257.0	Filter bags 5St.
10	6.343-187.0	Lock washer
10	2.891-029.0	Accumulator packaged RC 3000
10	4.043-277.0	Lens complete only for replacement
11	6.343-119.0	Lock washer
11	7.306-056.0	Screw M4x8 -8.8-R2R (In6Rd)
11	6.390-908.0	Hose EPDM
12	5.401-288.0	Screw connector part
12	6.651-499.0	Infrared-LED completely
13	7.303-106.0	Screw 4x12 -10.9-R2R (IN6RD)
14	4.063-892.0	Covering cap complete brush Aluminiumdru
14	4.063-864.0	Cover electronics complete Nur fuer Ersa
15	4.063-774.0	Covering cap complete belt
15	6.630-437.0	Switch on/off
16	5.324-052.0	Pushbutton
17	6.348-460.0	Toothed belt
17	6.634-220.0	Pushbutton touch pad panel
18	6.303-200.0	Screw 5x25-IN6RD
18	5.321-646.0	Handhold
19	9.412-178.0	Axle
20	5.033-452.0	Lens
21	6.630-135.0	Micro switch
22	6.682-290.0	Printed circuit board 115 V
23	4.613-003.0	Motor complete
24	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
25	5.033-459.0	Pinion
26	6.286-573.0	Protecting cap
27	5.332-082.0	Helical spring
