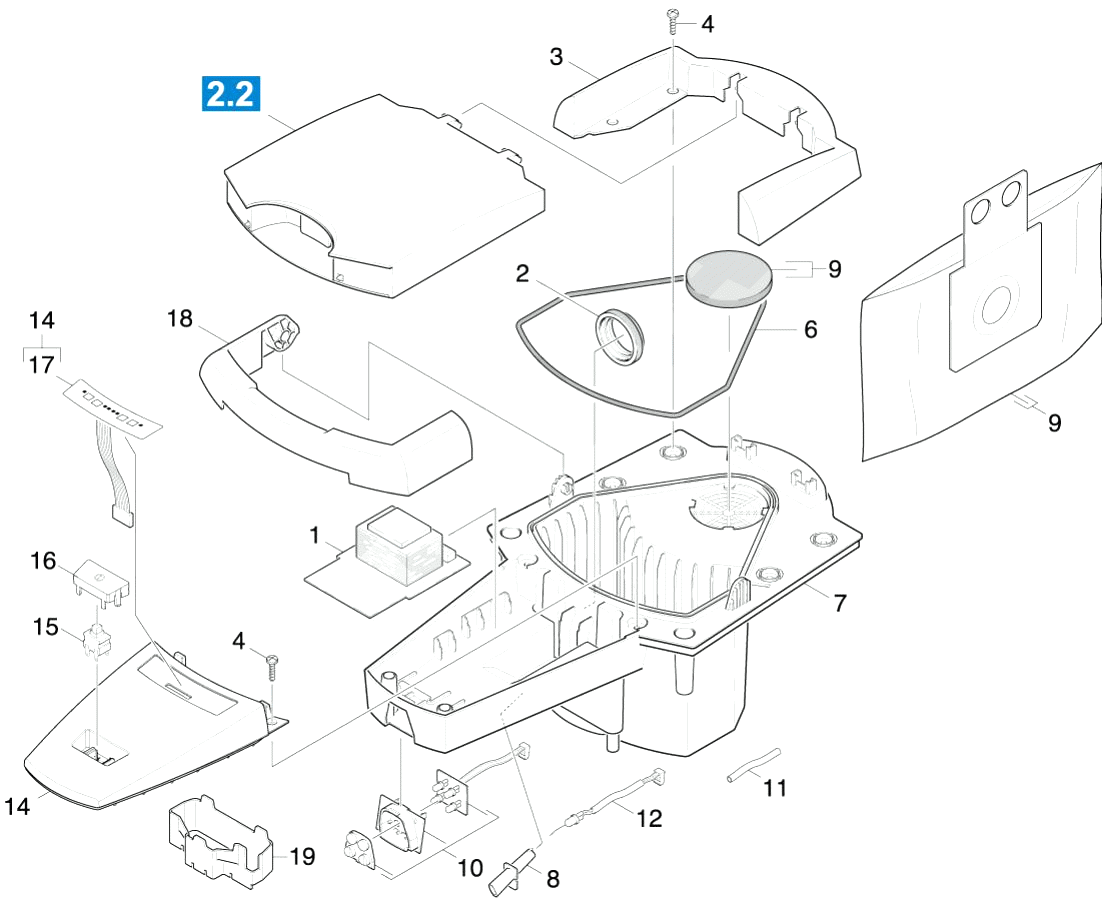

Karcher (Керхер) Верхняя часть (0.161-350.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.682-601.0	Electronics charging station RC 3000
2	5.363-593.0	Joint ring
3	5.031-923.0	Covering cap
4	7.303-129.0	Screw 4x16 -10.9-R2R (K-In6Rd)
6	6.273-224.0	Cord cellular rubber D5
7	5.031-924.0	Carrier
8	5.031-925.0	Retainer sensor
9	6.904-317.0	Filter bags 5St.
10	4.043-277.0	Lens complete only for replacement
11	6.390-908.0	Hose EPDM
12	6.651-499.0	Infrared-LED completely
14	4.063-860.0	Cover electronics complete
15	6.630-437.0	Switch on/off
16	5.324-075.0	Pushbutton
43	6.646-330.0	Plug blue 75A
44	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
45	6.646-979.0	Switch contact
46	6.388-482.0	Hose coupling
48	6.390-892.0	Spiral hose NW12
49	4.040-712.0	Holder brush-head
50	7.303-112.0	Screw 6x20 -10.9-R2R (In6Rd)
51	4.481-261.0	Holder pivot point complete BR
52	7.312-008.0	Washer 12-200HV-A3E ISO 7090
53	6.313-022.0	Spring clip
54	7.343-047.0	Lock washer 10-FST-A2E DIN 6799
55	7.343-302.0	Lock washer 8 -St-ph DIN 6799
