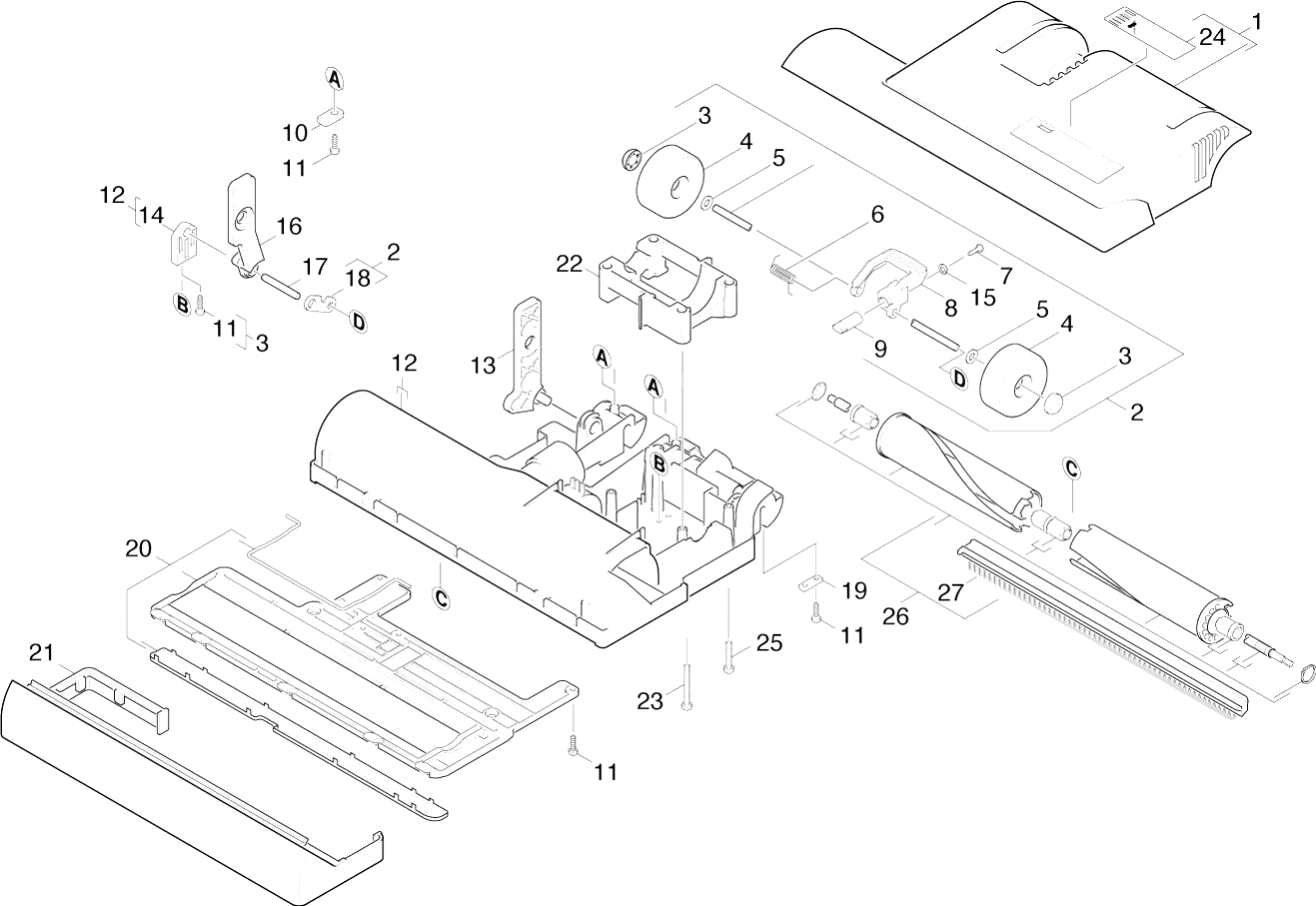

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.060-646.0 | Housing top part yellow | |
| 1 | 5.060-544.0 | Housing top part grey K 35E | |
| 2 | 4.510-030.0 | Axle complete | |
| 3 | 6.343-187.0 | Lock washer | |
| 4 | 5.515-068.0 | Wheel | |
| 5 | 7.312-003.0 | Washer 6 -200HV-A3E ISO 7090 | |
| 6 | 5.332-332.0 | Leg spring | |
| 7 | 6.303-296.0 | Screw M4X8 | |
| 8 | 5.481-218.0 | Lever CW 50 | |
| 9 | 5.316-829.0 | Bolt -CW 50- | |
| 10 | 5.004-658.0 | Strap | |
| 11 | 6.303-318.0 | Screw 3,5x12-10.9-R2R (IN6RD) | |
| 12 | 4.060-326.0 | Housing bottom part only for replacement | |
| 13 | 5.481-148.0 | Lever right | |
| 14 | 5.251-028.0 | Moulded part | |
| 15 | 7.313-001.0 | Spring washer B 4-FSt-A3E DIN 127 | |
| 16 | 4.481-120.0 | Lever left -CW 50- | |
| 17 | 5.105-239.0 | Axle | |
| 18 | 6.303-318.0 | Screw 3,5x12-10.9-R2R (IN6RD) | |
| 18 | 5.004-698.0 | Strap | |
| 19 | 5.481-148.0 | Lever right | |
| 19 | 5.004-808.0 | Strap | |
| 20 | 5.251-028.0 | Moulded part | |
| 20 | 4.038-594.0 | Slide part only for replacement | |
| 21 | 5.031-429.0 | Bumper | |
| 22 | 6.304-120.0 | Oval head screw M 5X 16-8.8-A2R (IN6RD) | |
| 22 | 5.031-009.0 | Bearing motor bottom part | |
| 23 | 6.304-125.0 | Oval head screw M 5X 30 | |
| 24 | 5.004-808.0 | Strap | |
| 24 | 5.390-420.0 | Label only for replacement K 35E | |
| 25 | 4.060-331.0 | Bottom part housing only for replacement | |
| 26 | 4.038-611.0 | Slide part only for replacement | |
| 27 | 5.031-082.0 | Bumper |
