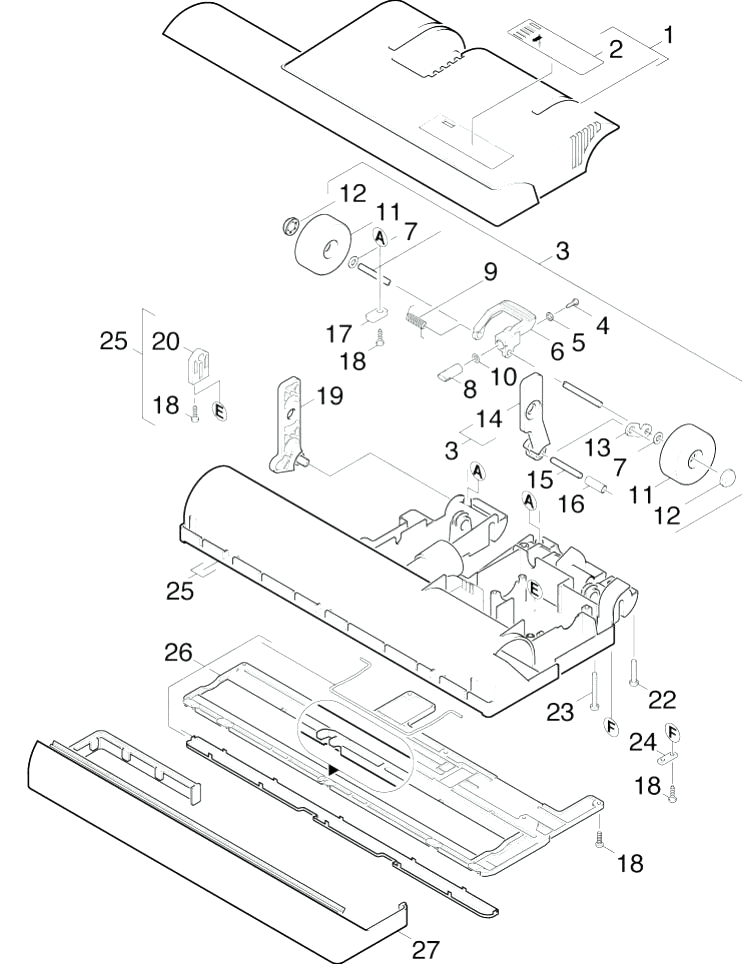

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.060-656.0 | Housing top part | |
| 3 | 4.510-032.0 | Axle complete CW100 | |
| 4 | 6.303-296.0 | Screw M4X8 | |
| 5 | 7.313-001.0 | Spring washer B 4-FSt-A3E DIN 127 | |
| 6 | 5.481-218.0 | Lever CW 50 | |
| 7 | 7.312-003.0 | Washer 6 -200HV-A3E ISO 7090 | |
| 8 | 5.316-829.0 | Bolt -CW 50- | |
| 9 | 5.332-332.0 | Leg spring | |
| 10 | 7.343-048.0 | Shim ring 5x10x0,5-ST2K50 DIN 988 | |
| 26 | 7.312-292.0 | Washer 6 -A2 ISO 7093-1 | |
| 29 | 7.343-201.0 | Lock washer 6-FST-PHR DIN 6799 | |
| 31 | 5.030-670.0 | Moulded part | |
| 32 | 6.362-402.0 | O-Ring seal 11,0 X 1,3-NBR 70 | |
| 33 | 5.332-082.0 | Helical spring | |
| 34 | 5.584-034.0 | Valve pin | |
| 35 | 5.587-139.0 | Valve housing | |
| 36 | 6.362-401.0 | O-Ring seal 3,1 X 1,6 | |
| 37 | 5.584-033.0 | Valve pin |
