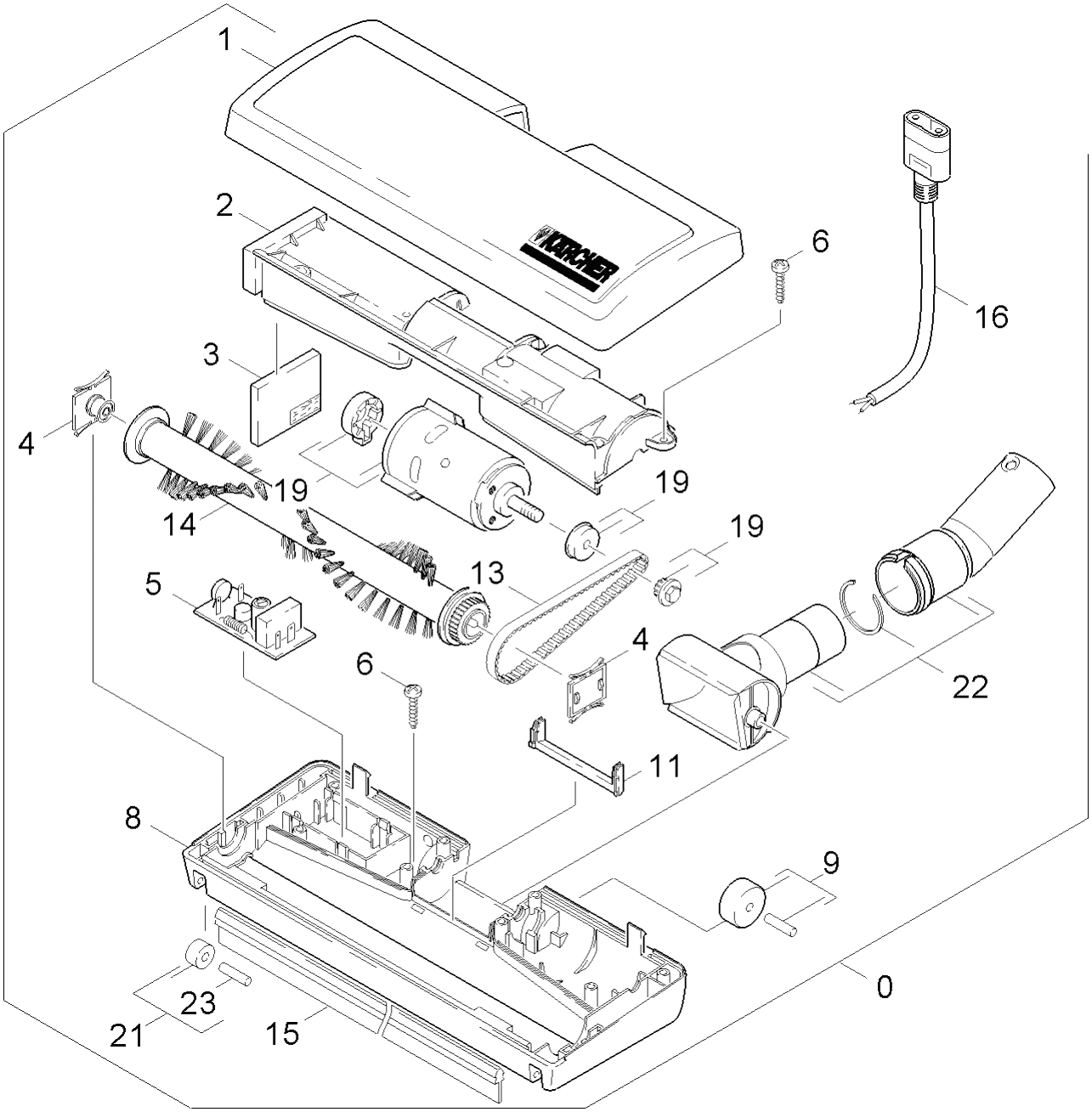

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 6.906-663.0 | Brush-head | |
| 1 | 6.905-980.0 | Housing top part | |
| 2 | 5.321-730.0 | Handhold tool | |
| 2 | 6.988-001.0 | Covering cap motor | |
| 3 | 5.789-024.0 | Joining piece tool | |
| 3 | 6.988-002.0 | Counterweight | |
| 4 | 6.988-003.0 | Housing bearing | |
| 4 | 6.388-701.0 | Hose clip with insert 13,3 | |
| 5 | 6.988-004.0 | Circuit board | |
| 5 | 6.391-104.0 | Шланг подвод сжатого воздуха 8 x 2 | |
| 6 | 7.343-115.0 | Locking ring 47x1,75 -St-ph DIN 472 | |
| 6 | 6.988-016.0 | Screw | |
| 7 | 6.902-112.0 | Threaded ring | |
| 8 | 6.905-981.0 | Housing bottom part | |
| 8 | 5.407-116.0 | Муфта | |
| 9 | 4.515-342.0 | Roller complete with axle | |
| 9 | 6.902-068.0 | Snap-in ring | |
| 10 | 6.391-106.0 | Suction hose DN32 | |
| 11 | 6.988-006.0 | Covering cap cable | |
| 11 | 6.902-065.0 | Clamp sleeve | |
| 12 | 6.390-311.0 | Hose clip 22,5 | |
| 13 | 6.988-007.0 | Toothed belt | |
| 13 | 6.391-111.0 | Всасывающий шланг DN17 | |
| 14 | 6.905-938.0 | Roller brush only for replacement | |
| 14 | 5.789-023.0 | Joining piece compressed air | |
| 15 | 6.273-218.0 | Rubber lip | |
| 15 | 4.060-557.0 | Module 35 | |
| 16 | 6.906-708.0 | Cable ESB 28 | |
| 16 | 6.385-916.0 | Глушитель шума G3/8 | |
| 17 | 6.391-107.0 | Муфта NG 8 | |
| 18 | 6.391-119.0 | Hose clip | |
| 19 | 6.988-019.0 | Motor complete | |
| 19 | 5.105-312.0 | Axle module | |
| 20 | 5.332-514.0 | Пружина | |
| 21 | 6.905-520.0 | Roller complete D13 | |
| 21 | 5.324-072.0 | Микропереключатель | |
| 22 | 6.906-707.0 | Swivel joint ESB 28 | |
| 22 | 6.362-127.0 | Joint ring 17X22X2 | |
| 23 | 6.906-712.0 | Axle front only for replacement | |
| 23 | 4.324-015.0 | Pushbutton module complete |
