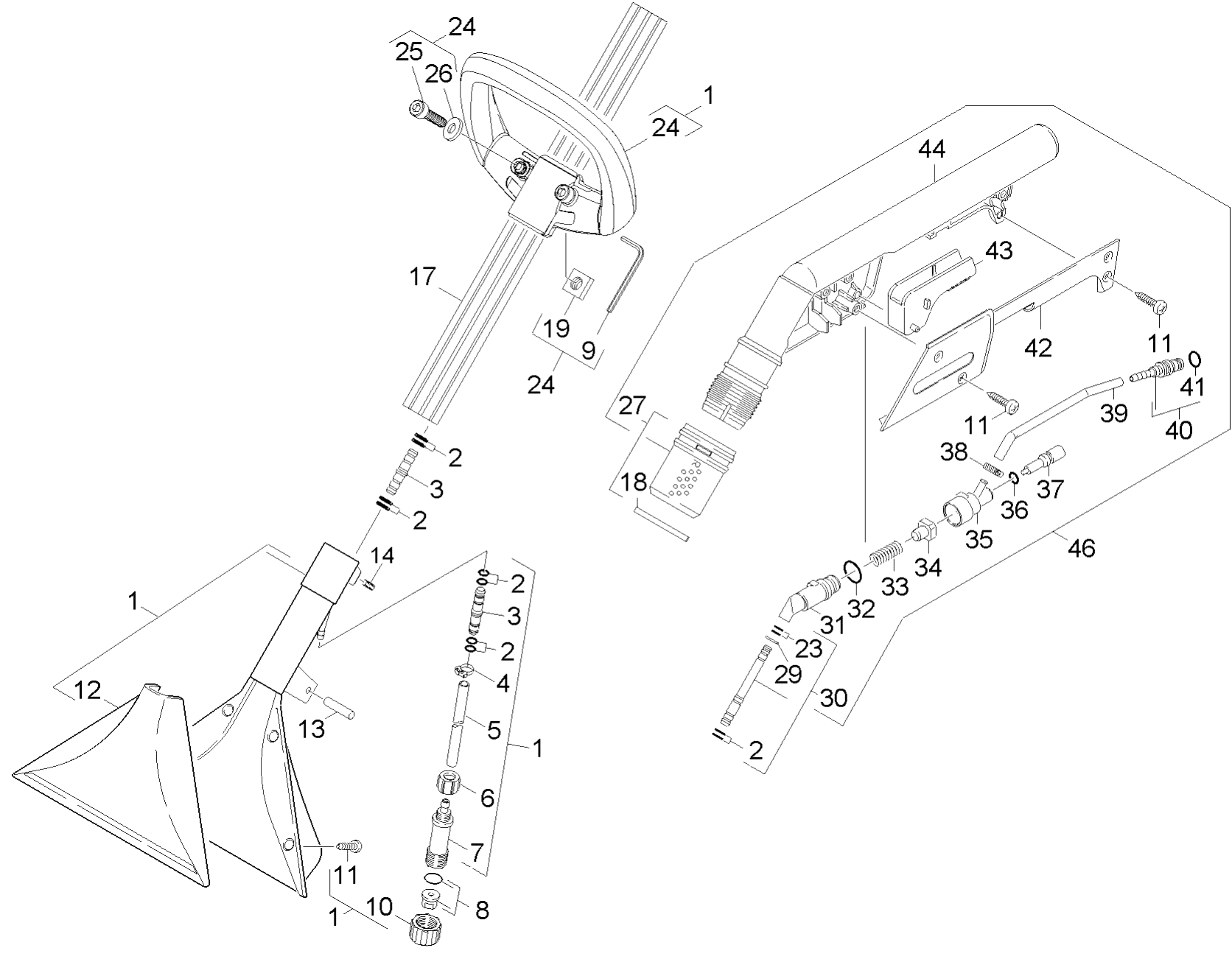

Karcher (Керхер) Форсунка для пола (0.166-142.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.130-398.0	Floor tool metal
2	6.362-472.0	O-Ring seal 6,0 X 1,0-NBR 70
3	5.127-021.0	Extension
4	6.389-882.0	Hose clip 8,5-10,0
5	6.388-326.0	Hose DN 6
6	6.388-381.0	Union nut
7	5.401-053.0	Screw connector part
8	2.884-546.0	Nozzles set
9	7.815-131.0	Cranked wrench key 5,0-St ISO 2936
10	5.310-043.0	Nut
11	7.303-116.0	Screw 4x12-A2-70 (IN6RD)
12	5.777-027.0	Cover suction nozzle
13	6.390-257.0	Hose clip
13	7.314-659.0	Straight grooved pin 5x24 Kunstst. ISO87
14	6.362-401.0	O-Ring seal 3,1 X 1,6
14	7.307-030.0	Threaded pin M10x12 -A2-21H ISO4026
15	5.587-139.0	Valve housing
16	5.584-034.0	Valve pin
17	5.332-082.0	Helical spring
17	5.032-822.0	Suction tube ALU
18	6.362-402.0	O-Ring seal 11,0 X 1,3-NBR 70
18	5.343-014.0	Locking ring
19	5.030-670.0	Moulded part
19	7.311-571.0	Square nut M6 -05-A2E DIN 557
20	6.362-761.0	O-Ring seal 4,0 X 1,2
21	7.343-201.0	Lock washer 6-FST-PHR DIN 6799
22	6.362-472.0	O-Ring seal 6,0 X 1,0-NBR 70
23	6.362-761.0	O-Ring seal 4,0 X 1,2
24	5.029-283.0	Suction tube window nozzle
24	5.029-257.0	Suction tube aluminium
24	4.321-186.0	Hand grip PUZZI 100/200
25	7.306-024.0	Cylinder head screw M6x30 -8.8-A2E ISO4
26	7.312-292.0	Washer 6 -A2 ISO 7093-1
27	7.311-571.0	Square nut M6 -05-A2E DIN 557
28	4.130-124.0	Carpet nozzle
29	4.310-011.0	Nut left hand thread only for replacemen
29	7.343-201.0	Lock washer 6-FST-PHR DIN 6799
31	5.127-021.0	Extension
33	5.777-027.0	Cover suction nozzle
