Karcher (Керхер) Форсунка для пола (0.196-750.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

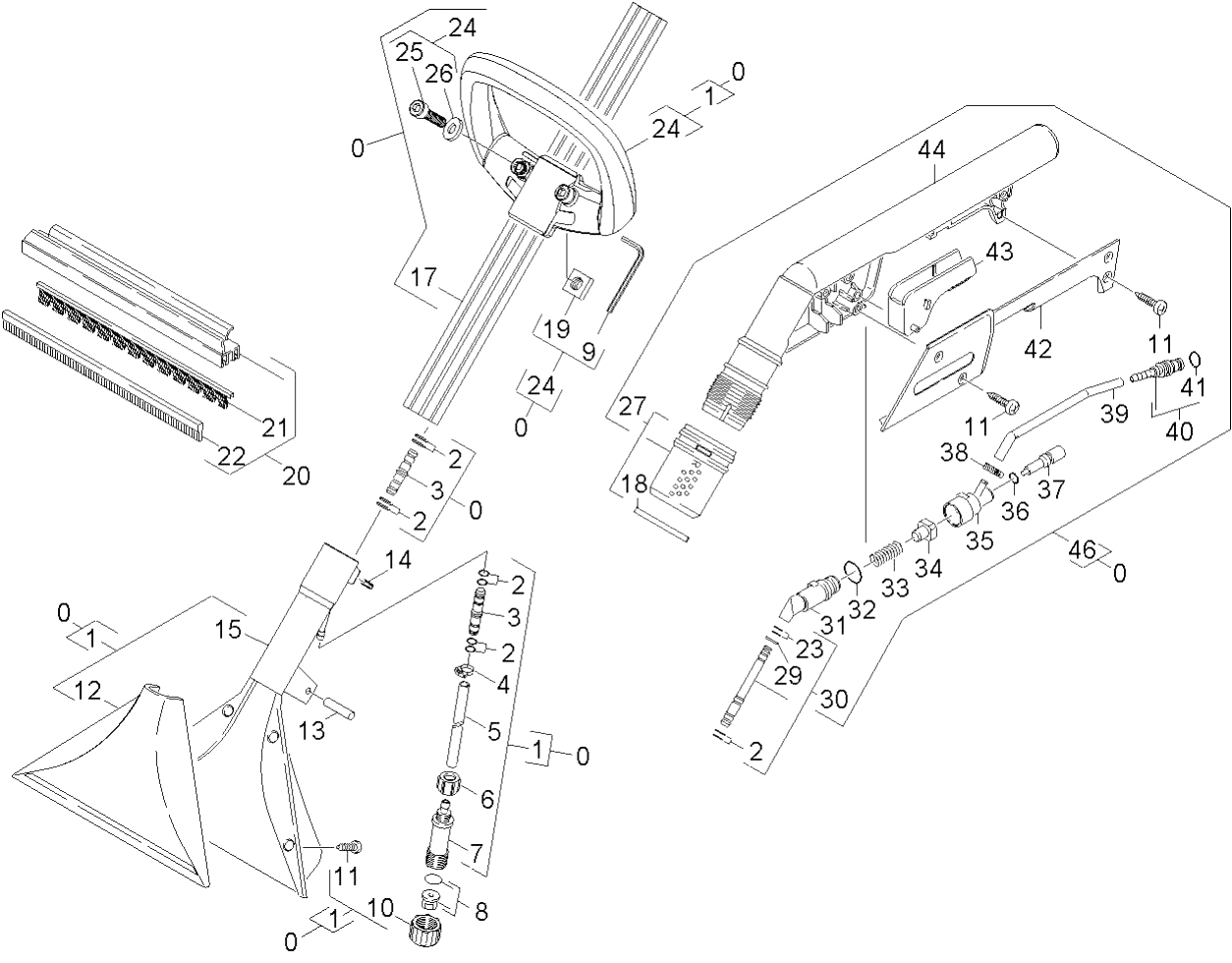

REF.	АРТИКУЛ	ОПИСАНИЕ
0	4.130-437.0	Nozzle metal with packing W?rth
2	6.362-472.0	O-Ring seal 6,0 X 1,0-NBR 70
3	5.127-021.0	Extension
4	6.389-882.0	Hose clip 8,5-10,0
5	6.388-326.0	Hose DN 6
6	6.388-381.0	Union nut
7	5.401-053.0	Screw connector part
8	2.884-546.0	Nozzles set
9	7.815-131.0	Cranked wrench key 5,0-St ISO 2936
10	5.310-043.0	Nut
11	7.303-116.0	Screw 4x12-A2-70 (IN6RD)
12	5.777-027.0	Cover suction nozzle
13	7.314-659.0	Straight grooved pin 5x24 Kunstst. ISO87
14	7.307-030.0	Threaded pin M10x12 -A2-21H ISO4026
15	4.130-398.0	Floor tool metal
17	5.032-822.0	Suction tube ALU
18	5.343-014.0	Locking ring
19	7.311-571.0	Square nut M6 -05-A2E DIN 557
20	4.762-513.0	Hard surface adapter W?rth
21	6.906-082.0	Brush strip
22	6.959-116.0	Rubber lip
23	6.362-761.0	O-Ring seal 4,0 X 1,2
24	4.321-186.0	Hand grip PUZZI 100/200
25	7.306-024.0	Cylinder head screw M6x30 -8.8-A2E ISO4
26	7.312-292.0	Washer 6 -A2 ISO 7093-1
29	7.343-201.0	Lock washer 6-FST-PHR DIN 6799
31	5.030-670.0	Moulded part
32	6.362-402.0	O-Ring seal 11,0 X 1,3-NBR 70
33	5.332-082.0	Helical spring
34	5.584-034.0	Valve pin
35	5.765-079.0	Spray nozzle yellow
35	5.765-080.0	Spray nozzle black
35	5.587-139.0	Valve housing
36	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
36	6.362-401.0	O-Ring seal 3,1 X 1,6
37	7.815-131.0	Cranked wrench key 5,0-St ISO 2936
37	5.584-033.0	Valve pin
38	6.390-257.0	Hose clip
39	6.390-237.0	Hose PU DN 6x1
41	6.362-498.0	O-Ring seal 6,75x1,78 NBR 70
42	5.031-038.0	Moulded part
43	5.481-485.0	Lever RAL 1018
43	5.481-157.0	Lever
44	5.321-569.0	Handhold
46	4.322-033.0	Handhold complete
