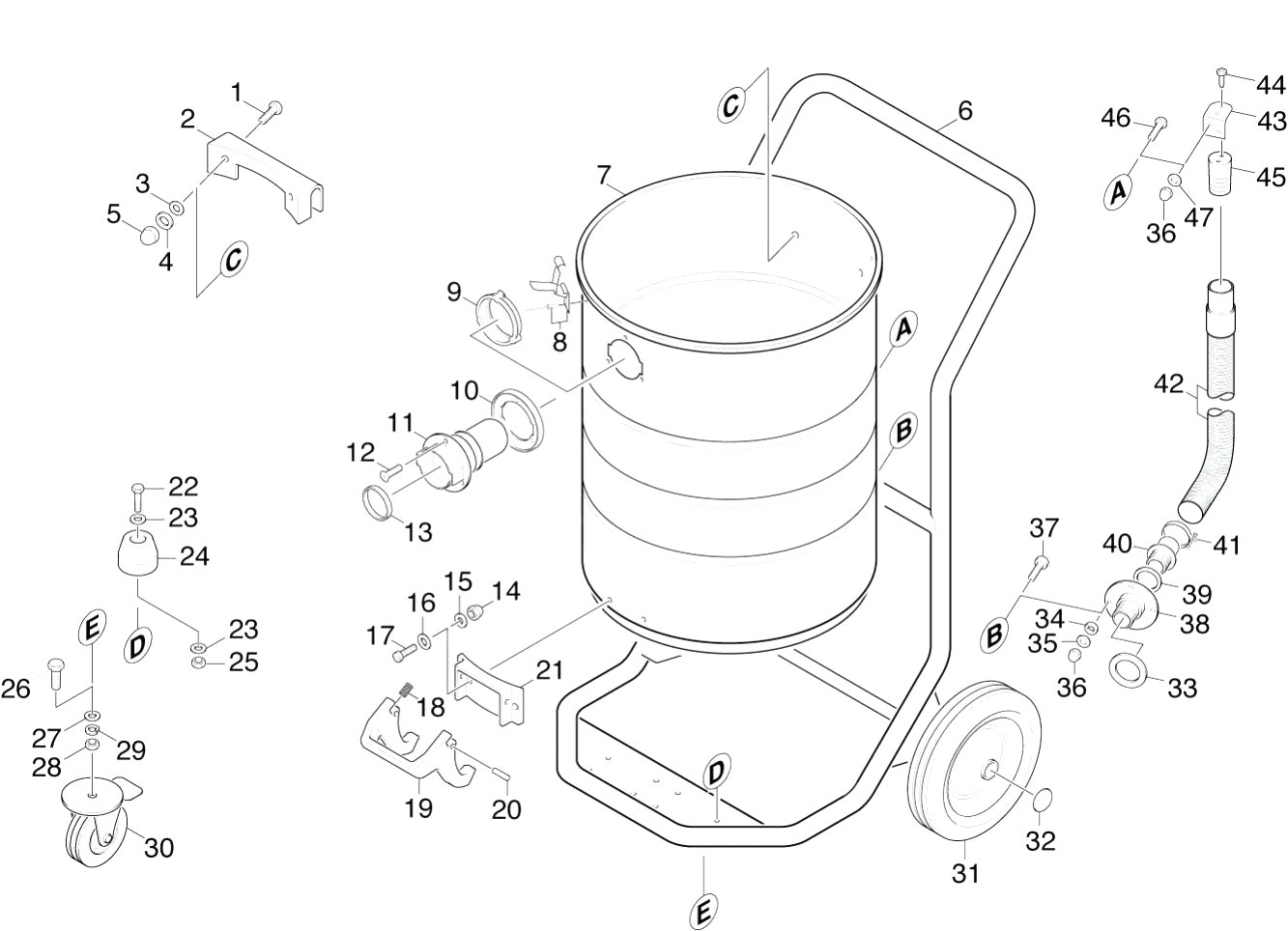

Karcher (Керхер) Емкость фильтр грубой очистки (0.196-327.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.304-538.0	Hexagonal head screw M8x16-A4-70 ISO 40
2	5.091-779.0	Holder
3	7.312-034.0	Washer 8-CuZn-E2E ISO7090
4	6.362-132.0	Joint ring 8x14
5	7.311-333.0	Cap nut M 8-1.4571 DIN 917
7	6.903-113.0	Boiler
8	9.437-526.0	Holder
9	6.903-297.0	Flange
10	5.122-084.0	Flange
11	5.408-031.0	Tube elbow
12	7.303-128.0	Countersunk screw 5x20 -10.9-R2R (In6Rd
13	5.363-159.0	Joint ring
14	7.311-622.0	Cap nut M 6-A2 DIN 986
15	6.362-133.0	Joint ring 6,4x14x1,5
16	7.312-033.0	Washer 6-CuZn-E2E ISO7090
17	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
18	5.332-211.0	Helical spring
19	5.034-291.0	Retaining bracket
20	7.314-451.0	Close-tolerance grooved pin 8x24 -CuZn
21	5.091-778.0	Фасонная деталь
22	7.306-105.0	Screw M6x30 -8.8-R3R (In6Rd)
23	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
24	6.339-063.0	Rubber buffer d 50
29	4.310-011.0	Nut left hand thread only for replacemen
31	5.127-021.0	Extension
33	5.777-027.0	Cover suction nozzle
35	5.765-079.0	Spray nozzle yellow
35	5.765-080.0	Spray nozzle black
36	6.362-384.0	O-Ring seal 9x1,5 - NBR 70
37	7.815-131.0	Cranked wrench key 5,0-St ISO 2936
