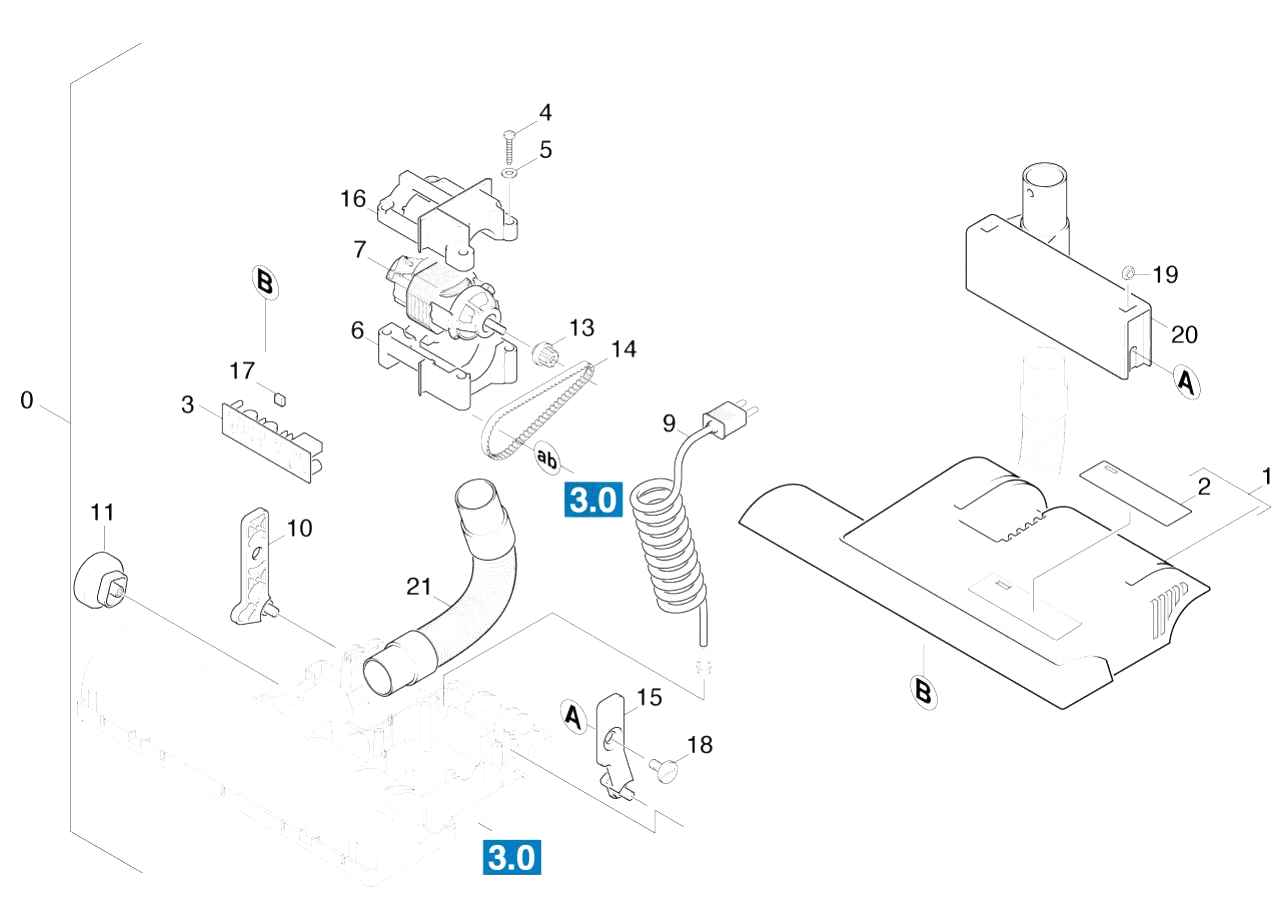

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.060-665.0 | Housing top part ESB 35 E | |
| 2 | 5.382-039.0 | Label only for replacement ESB 35E | |
| 3 | 6.682-291.0 | Printed circuit board 230V | |
| 4 | 7.303-129.0 | Screw 4x16 -10.9-R2R (K-In6Rd) | |
| 5 | 7.312-281.0 | Washer 4 -200HV-A2E ISO7093-1 | |
| 6 | 5.031-009.0 | Bearing motor bottom part | |
| 7 | 6.612-384.0 | Motor -240V (LAMB) | |
| 8 | 6.905-981.0 | Housing bottom part | |
| 9 | 4.515-342.0 | Roller complete with axle | |
| 9 | 4.820-981.0 | Кабель комплектный | |
| 10 | 5.481-148.0 | Lever right | |
| 11 | 6.988-006.0 | Covering cap cable | |
| 11 | 5.515-070.0 | Adjusting wheel | |
| 12 | 6.905-934.0 | Swivel joint | |
| 13 | 5.114-105.0 | Ring | |
| 13 | 6.988-007.0 | Toothed belt | |
| 13 | 5.352-043.0 | Pinion | |
| 14 | 6.905-938.0 | Roller brush only for replacement | |
| 14 | 6.348-266.0 | Toothed belt | |
| 15 | 6.273-218.0 | Rubber lip | |
| 15 | 4.481-120.0 | Lever left -CW 50- | |
| 16 | 6.647-787.0 | Spiral cable with plug | |
| 16 | 5.031-155.0 | Bracket top part | |
| 17 | 6.988-008.0 | Pinion | |
| 17 | 6.273-058.0 | Sealing tape cellularrubber 9x4 | |
| 18 | 6.988-009.0 | Motor flange | |
| 18 | 6.304-100.0 | Screw M 8 X 13 | |
| 19 | 6.988-019.0 | Motor complete | |
| 19 | 7.311-570.0 | Square nut M8 -05-A2E DIN 557 | |
| 20 | 6.988-011.0 | STORAGE (MOTOR) | |
| 20 | 5.042-992.0 | Holder | |
| 21 | 6.905-520.0 | Roller complete D13 | |
| 21 | 6.389-815.0 | Suction hose DN32 |
