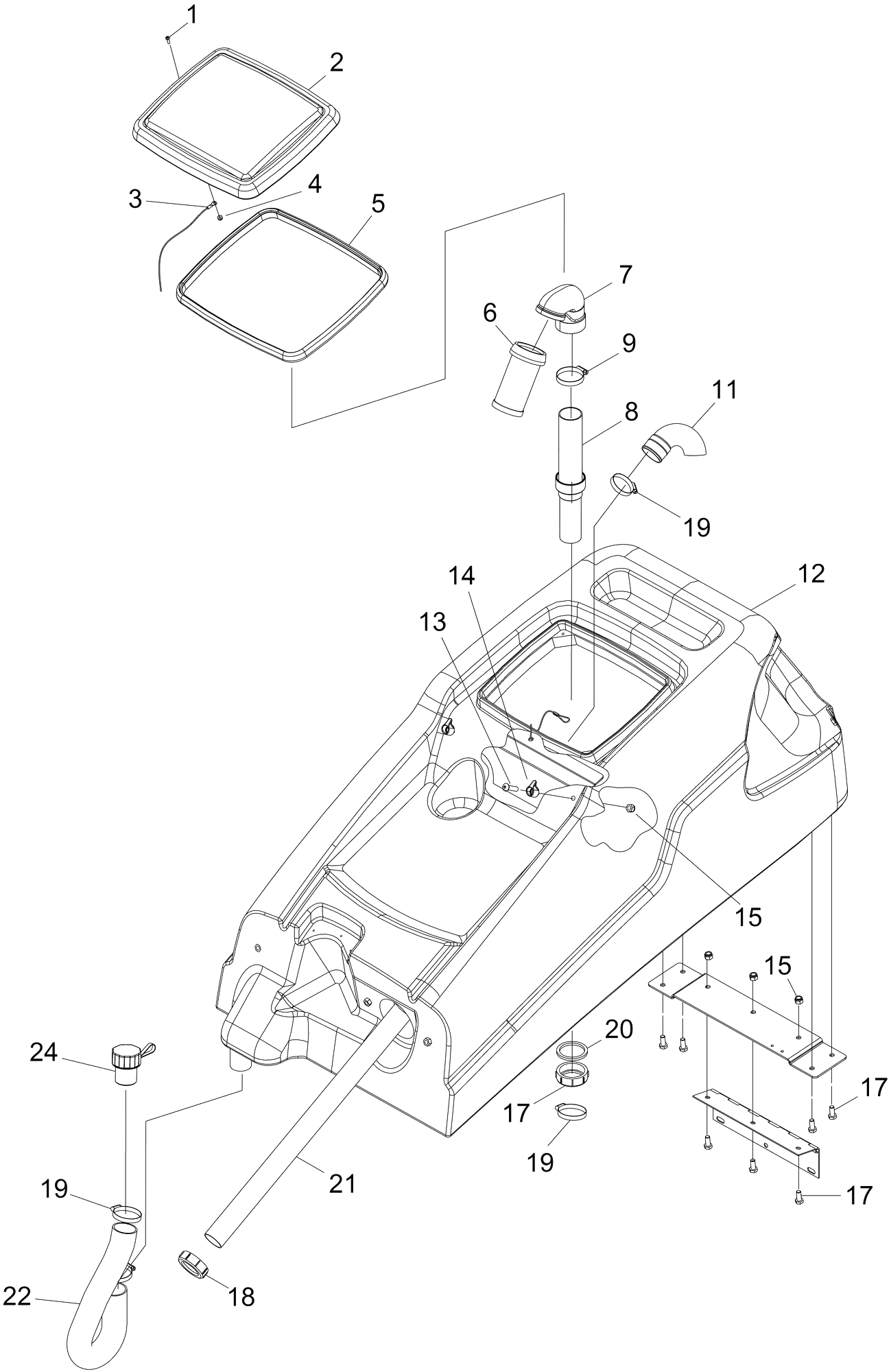

Karcher (Керхер) Резервуар грязной воды (0.103-886.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
8.627-422.0 |
SCR, 6-32 X 5/8 PPHMS SS |
|
| 1 |
8.622-378.0 |
Screw M4X8 |
|
| 1 |
8.627-187.0 |
NUT, 1/4-20 HEX NYLCK THIN SS |
|
| 1 |
8.627-595.0 |
SCR, 10-24 X 3/8 TORX SS |
|
| 1 |
8.629-319.0 |
PIN, CLEVIS |
|
| 1 |
8.619-740.0 |
ELBOW, 1/8NPT STREET |
|
| 1 |
8.600-553.0 |
METER, 12-48 VDC LED HOUR |
|
| 1 |
8.619-794.0 |
HOSEBARB, 3/8MPTX1/2 90D DL |
|
| 2 |
8.600-610.0 |
PUMP ASM, 36V ACCESSORY |
|
| 2 |
8.600-334.0 |
DOME, 13 X 11 |
|
| 2 |
8.622-417.0 |
SHAFT, 6.2MM BRUSH DRIVE |
|
| 2 |
8.601-063.0 |
Washer 1/4 ID X 5/8 OD SS |
|
| 2 |
8.625-998.0 |
WIPER, VAC SHOE |
|
| 2 |
8.629-652.0 |
WIPER, 13IN W/ GASKET |
|
| 2 |
8.623-309.0 |
CLAMP, 1/4 ID HOSE |
|
| 2 |
8.600-201.0 |
BOOT, 3/8 CIRCUIT BREAKER |
|
| 3 |
8.601-065.0 |
Washer #10 X 9/16 OD |
|
| 3 |
8.601-280.0 |
SHAFT ASM, BRUSH END CAP |
|
| 3 |
8.627-099.0 |
Nut 10-32 HEX NYLOCK SS |
|
| 3 |
8.627-665.0 |
Screw 5/16-18 X 1.5 BSHCS SS |
|
| 3 |
8.619-764.0 |
"""HOSEBARB, 1/8"""" FPT X 1/4"""" """ |
|
| 3 |
8.600-890.0 |
BOOT, SEAL-PUSH BUTTON 7/16-28 |
|
| 4 |
8.601-481.0 |
NUT, 6-32 ACORN SS |
|
| 4 |
8.627-099.0 |
Nut 10-32 HEX NYLOCK SS |
|
| 4 |
8.601-282.0 |
"""SHAFT ASM, DRIVE 20"""" """ |
|
| 4 |
8.629-074.0 |
BRKT, FRONT LATCH |
|
| 4 |
8.621-969.0 |
KNOB, 1.5 OD X 5/16-18 |
|
| 4 |
8.619-775.0 |
TEE, 1/8 NPT STREET RUN |
|
| 4 |
8.622-977.0 |
BLOCK, SHUNT MOUNT |
|
| 5 |
8.600-401.0 |
Seal DOME EDGE |
|
| 5 |
8.619-729.0 |
BUSHING, 3/8 MPT X 1/4 FPT HEX |
|
| 5 |
8.622-352.0 |
RING, 28MM INT SNAP PHOSPHATE |
|
| 5 |
8.627-839.0 |
"""SPACER, 1/2""""ODX.219IDX1/2""""NYLO """ |
|
| 5 |
8.630-640.0 |
Вытяжной модуль комплектный |
|
| 5 |
8.629-654.0 |
VACSHOE, 13IN W/ WIPER |
|
| 5 |
8.622-720.0 |
ADPTR 1/8MPTX1/8FPT BS AD |
|
| 6 |
8.619-984.0 |
Cage float -1Ball |
|
| 6 |
8.623-309.0 |
CLAMP, 1/4 ID HOSE |
|
| 6 |
8.622-331.0 |
PULLEY, 5MM HTD, 18T, 12.7ID |
|
| 6 |
8.600-683.0 |
Screw 10-32 X 1.0 PPHMS |
|
| 6 |
8.600-301.0 |
"""CUFF, HOSE 1.5"""" BLK A 2161 """ |
|
| 6 |
8.624-061.0 |
HOSEBARB, 1/8MPT X 1/4H 90D |
|
| 6 |
8.627-388.0 |
SCR, 8-32 X 1.25 PPHMS |
|
| 7 |
8.622-712.0 |
ADAPTER, FLOAT 30 DEG |
|
| 7 |
8.619-750.0 |
HOSEBARB, 1/4MPT X 1/4 DL |
|
| 7 |
8.621-525.0 |
BELT, 2S 5MM HTD, DUO DRIVE |
|
| 7 |
8.630-638.0 |
KIT, FRONT COVER |
|
| 7 |
8.623-988.0 |
"""HOSE, 1.5 BLK VAC X 22"""" """ |
|
| 7 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 7 |
8.630-632.0 |
CONTROLLER, I-DRIVE, GEL BATT |
|
| 8 |
8.629-324.0 |
TUBE ASM RECOVERY FLOAT |
|
| 8 |
8.619-773.0 |
TEE, 1/4 BRANCH |
|
| 8 |
8.622-466.0 |
SPRING, TENSIONER |
|
| 8 |
8.601-065.0 |
Washer #10 X 9/16 OD |
|
| 8 |
8.627-607.0 |
SCR, 5/16-18 X 3/4 CARRIAGE SS |
|
| 8 |
8.601-067.0 |
Washer 5/16 FLAT SS |
|
| 8 |
8.627-085.0 |
NUT, 8-32 HEX NYLOCK SS |
|
| 9 |
8.600-238.0 |
"""CLAMP, 2.25"""" WORM GEAR """ |
|
| 9 |
8.617-333.0 |
WASHER, M5, FLAT, ISO7093, SS |
|
| 9 |
8.601-077.0 |
Washer 7/16ID X1DX.08 FLT SS |
|
| 9 |
8.600-457.0 |
JET BODY, MINI PROMAX BODY |
|
| 9 |
8.625-590.0 |
STANDOFF, 6-32 X 5/8 HEX NYL |
|
| 10 |
8.619-798.0 |
HOSEBARB, 1/2 MPT X 1.0 90D NY |
|
| 10 |
8.601-499.0 |
SCR, M5X20, SHCS, ISO4762, SS |
|
| 10 |
8.601-320.0 |
JET, MINI PROMAX 11004 |
|
| 10 |
8.623-790.0 |
GASKET, .125T X .37W X 23L |
|
| 11 |
8.624-013.0 |
HOSE, P-TRAP 45 DEG |
|
| 11 |
8.601-136.0 |
HOSE, 1.0 ID X 1/8W X 21 CLR |
|
| 11 |
8.621-587.0 |
BRKT, TENSIONER ARM |
|
| 11 |
8.601-255.0 |
JET, PROMAX, 11001 |
|
| 11 |
8.625-136.0 |
Relay 36VDC 100A |
|
| 12 |
8.629-895.0 |
TANK, RECOVERY, TRIMMED |
|
| 12 |
8.623-311.0 |
"""CLAMP, 1.0"""" WORM GEAR """ |
|
| 12 |
8.633-568.0 |
TANK, REC, TRIMMED, MED GRY |
|
| 12 |
8.601-278.0 |
PULLEY ASM, 5MM HTD 22T |
|
| 12 |
8.600-719.0 |
Switch KEY DPST |
|
| 13 |
8.629-083.0 |
SCR, 5/16-18 X 1.25 SHCS SS |
|
| 13 |
8.623-068.0 |
"""BRUSH, EXTRACTOR 20"""" """ |
|
| 13 |
8.601-082.0 |
Washer 7/16 X 3/4 X .19RUBBER |
|
| 13 |
8.600-200.0 |
BREAKER, 3 AMP 1681-090-300 |
|
| 14 |
8.623-315.0 |
CLAMP, 3/8 HOSE (D-SLOT) |
|
| 14 |
8.623-846.0 |
HOOK, STRAP |
|
| 14 |
8.622-349.0 |
RING, 10MM EXT SNAP, DIN 471 |
|
| 14 |
8.629-631.0 |
BRKT, BUMPER ASSY |
|
| 14 |
8.600-192.0 |
BREAKER, 25A 50VDC CIRCUIT |
|
| 15 |
8.629-761.0 |
HOSEBARB, 1/4MPT X 1/4 90D NYL |
|
| 15 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 15 |
8.622-413.0 |
SHAFT, TENSIONER |
|
| 15 |
8.627-607.0 |
SCR, 5/16-18 X 3/4 CARRIAGE SS |
|
| 15 |
8.600-191.0 |
BREAKER, 30A 50VDC CIRCUIT |
|
| 16 |
8.634-387.0 |
HOUSING ASM, BRUSH DRIVE |
|
| 16 |
8.627-187.0 |
NUT, 1/4-20 HEX NYLCK THIN SS |
|
| 16 |
8.600-581.0 |
Nut 1/4-20 HEX NYLOCK SS |
|
| 17 |
8.627-649.0 |
Screw 5/16-18 X 5/8 HHCS SS |
|
| 17 |
8.622-332.0 |
PULLEY, 32T, 5MM HTD |
|
| 17 |
8.601-063.0 |
Washer 1/4 ID X 5/8 OD SS |
|
| 17 |
8.623-008.0 |
BREAKER, 22A 250VAC, 50VDC |
|
| 18 |
8.637-208.0 |
NUT, 1.5 SLIP JOINT |
|
| 18 |
8.601-279.0 |
SHAFT ASM, BRUSH DRIVE |
|
| 18 |
8.625-942.0 |
WASHER, THRUST .51ID X 1 ODBRO |
|
| 18 |
8.600-718.0 |
Switch EMERGENCY STOP |
|
| 19 |
8.600-240.0 |
"""Binder 2.0"""" WORM GEAR X .312W """ |
|
| 19 |
8.617-297.0 |
SCR,M5X12,PHLP FHMS,ISO7046,SS |
|
| 19 |
8.625-940.0 |
Washer THRUST.51 ID X 1 ODBRO |
|
| 19 |
8.629-610.0 |
ASM, DC CONVERTER |
|
| 20 |
8.622-892.0 |
BEARING,.252 ID X.503 ODX.1.0 |
|
| 20 |
8.607-050.0 |
BRKT, BATTERY ALARM |
|
| 21 |
8.608-963.0 |
TUBE, 1.5 PVC X 24.0 |
|
| 21 |
8.609-362.0 |
PLATE, VAC MOUNT RH |
|
| 21 |
8.625-464.0 |
SPACER, .25 OD X .171 ID X .25 |
|
| 22 |
8.600-426.0 |
Hose 1.5 X 24.0 DRAIN |
|
| 22 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 22 |
8.623-150.0 |
BUZZER, PIEZO 6-28VDC |
|
| 23 |
8.617-335.0 |
WASHER, M5, FLAT, ISO7089, SS |
|
| 23 |
8.627-374.0 |
Screw 1/4-20 x 1.5 HHCS SS |
|
| 23 |
8.600-649.0 |
Screw 8-32 X 3/4 PPHMS SS |
|
| 24 |
8.632-898.0 |
DRAIN CAP ASSEMBLY |
|
| 24 |
8.617-298.0 |
SCR, KA50X10,PT OHS,WN1412,PLTD |
|
| 24 |
8.621-914.0 |
"""HOSE ASM, 1.5 BLK VAC X 23"""" """ |
|
| 25 |
8.622-463.0 |
SPRING, BRUSH CLIP |
|
| 25 |
8.623-795.0 |
GASKET, VAC SHOE WIPER |
|
| 26 |
8.627-713.0 |
Screw 5/16-18X1.00 CARRIAGE SS |
|
| 26 |
8.622-374.0 |
SCREW, 1/4-20 X .59 PHPNHMS SS |
|
| 26 |
8.627-787.0 |
SCREW, M6-1.0 X 20 LG BHSCS SS |
|
| 27 |
8.635-049.0 |
PLUG, HOLE, 5MM DIA X 12MM L |
|
