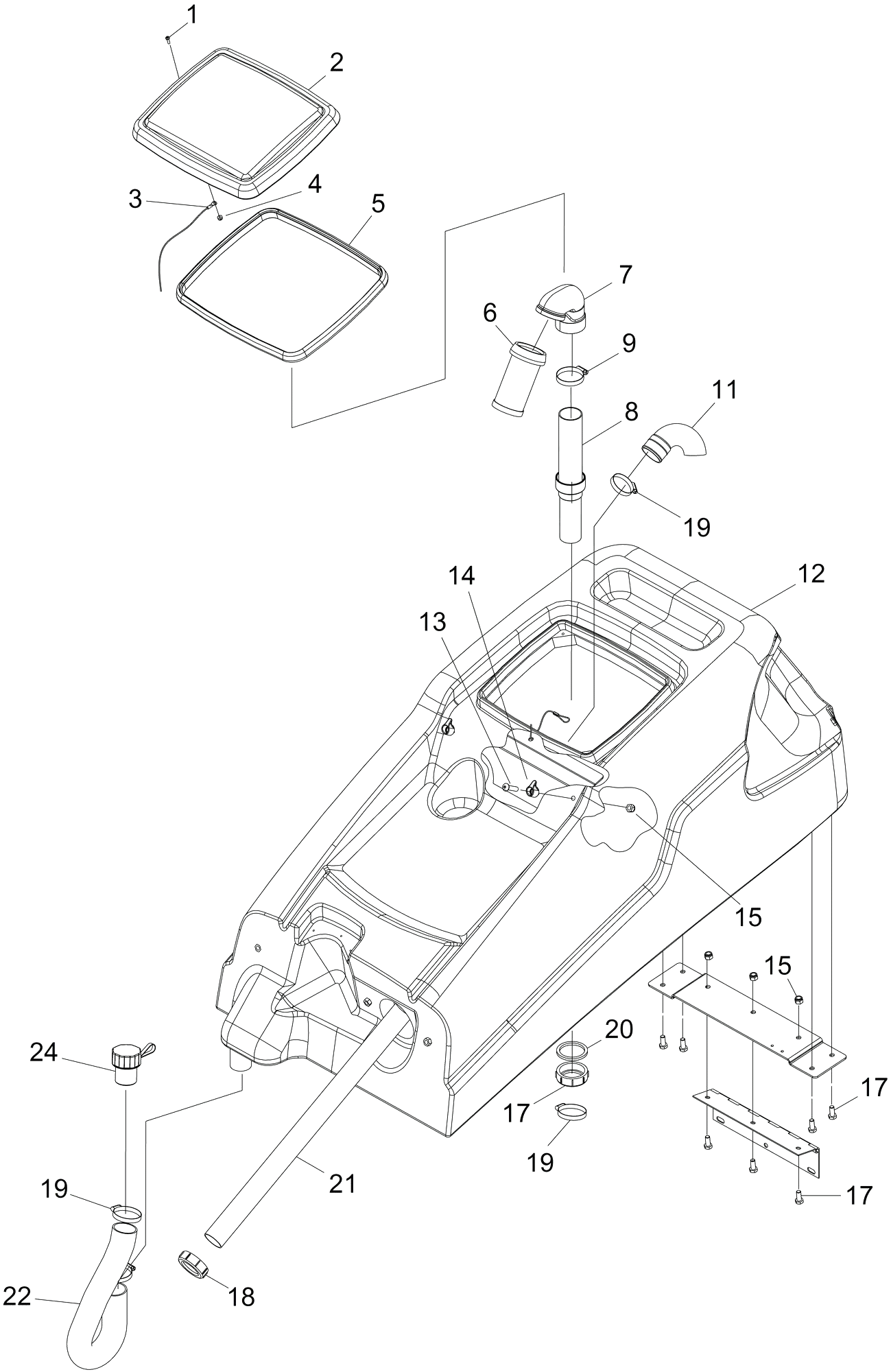

Karcher (Керхер) Резервуар грязной воды (0.103-886.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
8.627-422.0 |
SCR, 6-32 X 5/8 PPHMS SS |
|
| 1 |
8.622-378.0 |
Screw M4X8 |
|
| 2 |
8.600-334.0 |
DOME, 13 X 11 |
|
| 2 |
8.622-417.0 |
SHAFT, 6.2MM BRUSH DRIVE |
|
| 3 |
8.601-280.0 |
SHAFT ASM, BRUSH END CAP |
|
| 4 |
8.601-481.0 |
NUT, 6-32 ACORN SS |
|
| 4 |
8.601-282.0 |
"""SHAFT ASM, DRIVE 20"""" """ |
|
| 5 |
8.600-401.0 |
Seal DOME EDGE |
|
| 5 |
8.622-352.0 |
RING, 28MM INT SNAP PHOSPHATE |
|
| 6 |
8.619-984.0 |
Cage float -1Ball |
|
| 6 |
8.622-331.0 |
PULLEY, 5MM HTD, 18T, 12.7ID |
|
| 7 |
8.622-712.0 |
ADAPTER, FLOAT 30 DEG |
|
| 7 |
8.621-525.0 |
BELT, 2S 5MM HTD, DUO DRIVE |
|
| 8 |
8.629-324.0 |
TUBE ASM RECOVERY FLOAT |
|
| 8 |
8.622-466.0 |
SPRING, TENSIONER |
|
| 9 |
8.600-238.0 |
"""CLAMP, 2.25"""" WORM GEAR """ |
|
| 9 |
8.617-333.0 |
WASHER, M5, FLAT, ISO7093, SS |
|
| 10 |
8.601-499.0 |
SCR, M5X20, SHCS, ISO4762, SS |
|
| 11 |
8.621-748.0 |
COVER, VAC MOTOR |
|
| 11 |
8.624-013.0 |
HOSE, P-TRAP 45 DEG |
|
| 11 |
8.621-587.0 |
BRKT, TENSIONER ARM |
|
| 12 |
8.629-895.0 |
TANK, RECOVERY, TRIMMED |
|
| 12 |
8.633-568.0 |
TANK, REC, TRIMMED, MED GRY |
|
| 12 |
8.601-278.0 |
PULLEY ASM, 5MM HTD 22T |
|
| 13 |
8.629-083.0 |
SCR, 5/16-18 X 1.25 SHCS SS |
|
| 13 |
8.623-068.0 |
"""BRUSH, EXTRACTOR 20"""" """ |
|
| 14 |
8.629-793.0 |
GROMMET, .50ID X .06 |
|
| 14 |
8.623-846.0 |
HOOK, STRAP |
|
| 14 |
8.622-349.0 |
RING, 10MM EXT SNAP, DIN 471 |
|
| 15 |
8.629-812.0 |
NUT, SPEED, #8-32 |
|
| 15 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 15 |
8.622-413.0 |
SHAFT, TENSIONER |
|
| 16 |
8.629-912.0 |
TERMINAL STRIP, 4-POS, .25 |
|
| 16 |
8.634-387.0 |
HOUSING ASM, BRUSH DRIVE |
|
| 17 |
8.622-549.0 |
VAC MOTOR, 230V 5.7 3ST W/TUBE |
|
| 17 |
8.627-649.0 |
Screw 5/16-18 X 5/8 HHCS SS |
|
| 17 |
8.622-332.0 |
PULLEY, 32T, 5MM HTD |
|
| 18 |
8.630-030.0 |
"""SCR, #8 X 2"""" PPHSMS """ |
|
| 18 |
8.637-208.0 |
NUT, 1.5 SLIP JOINT |
|
| 18 |
8.601-279.0 |
SHAFT ASM, BRUSH DRIVE |
|
| 19 |
8.625-101.0 |
PUMP, 230V 100PSI BYPASS |
|
| 19 |
8.600-240.0 |
"""Binder 2.0"""" WORM GEAR X .312W """ |
|
| 19 |
8.617-297.0 |
SCR,M5X12,PHLP FHMS,ISO7046,SS |
|
| 20 |
8.623-315.0 |
CLAMP, 3/8 HOSE (D-SLOT) |
|
| 21 |
8.624-053.0 |
HOSEBARB, 1/2 X 1/4 X 1/2, TEE |
|
| 21 |
8.608-963.0 |
TUBE, 1.5 PVC X 24.0 |
|
| 22 |
8.628-198.0 |
"""HOSE, 1/2ID WIRE BOUND X 5"""" """ |
|
| 22 |
8.600-426.0 |
Hose 1.5 X 24.0 DRAIN |
|
| 23 |
8.635-871.0 |
HOSE ASSEMBLY, CLP DUO |
|
| 23 |
8.617-335.0 |
WASHER, M5, FLAT, ISO7089, SS |
|
| 24 |
8.619-794.0 |
HOSEBARB, 3/8MPTX1/2 90D DL |
|
| 24 |
8.632-898.0 |
DRAIN CAP ASSEMBLY |
|
| 24 |
8.617-298.0 |
SCR, KA50X10,PT OHS,WN1412,PLTD |
|
| 25 |
8.620-028.0 |
HOSEBARB, 3/8 MPT X 1/4 90D |
|
| 25 |
8.622-463.0 |
SPRING, BRUSH CLIP |
|
| 26 |
8.619-742.0 |
ELBOW, 3/8NPT STREET |
|
| 26 |
8.627-713.0 |
Screw 5/16-18X1.00 CARRIAGE SS |
|
| 27 |
8.630-262.0 |
FOAM, 1 X 1 X 18 |
|
| 27 |
8.635-049.0 |
PLUG, HOLE, 5MM DIA X 12MM L |
|
| 28 |
8.630-824.0 |
GASKET, SOLUTION ASSY |
|
| 29 |
8.613-533.0 |
BRUSH SET,230V VAC MTR WINDSOR (2) |
|
