Karcher (Керхер) Бак (0.161-463.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

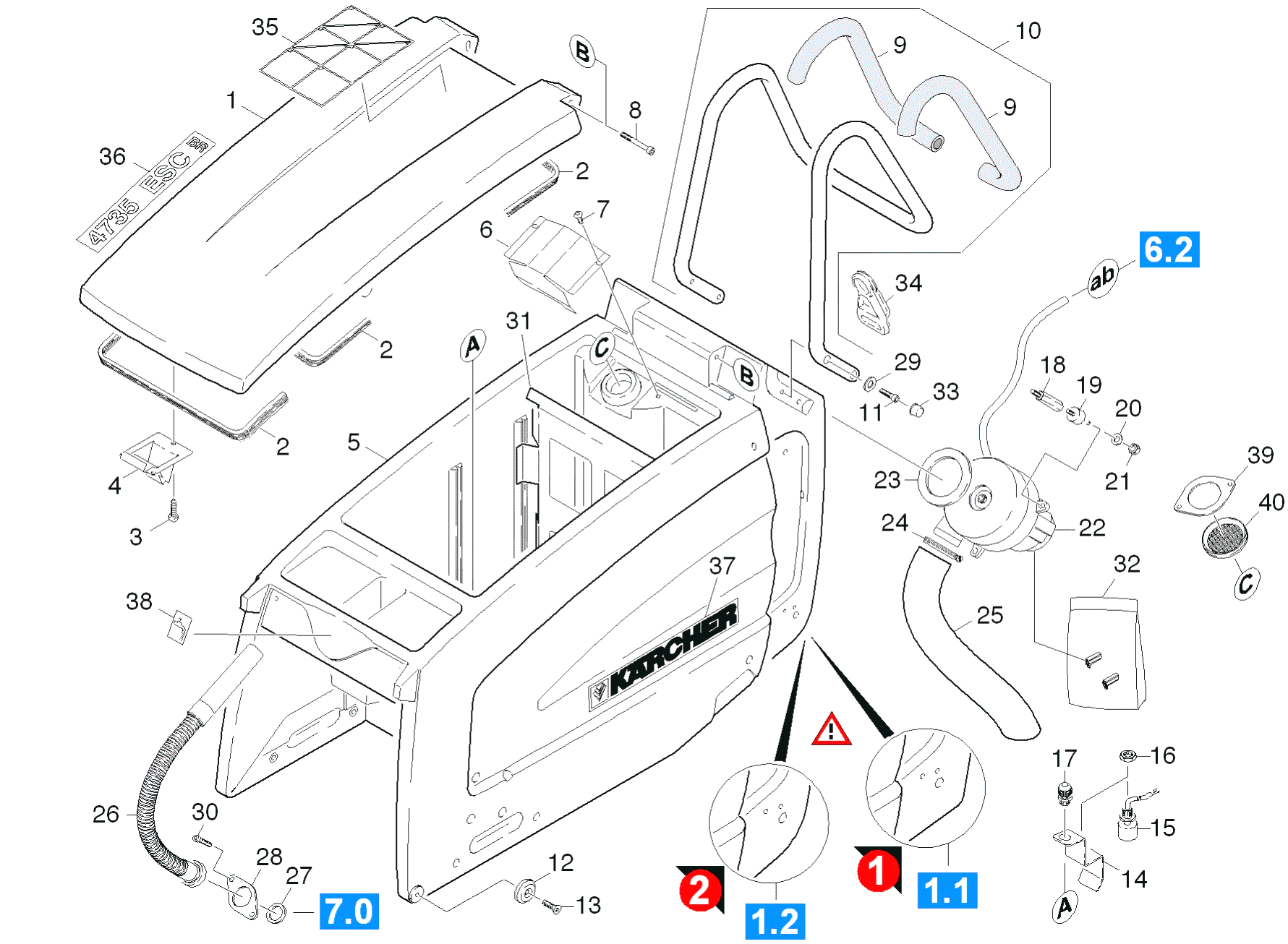

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.064-005.0	Cover waste water tank
2	6.365-318.0	Sealing profile
3	7.303-104.0	Screw 5x16 -A2-70 (IN6RD)
4	5.007-439.0	Plate closure
5	5.071-135.0	Tank
5	4.071-219.0	Waste water tank replacement BR 47/35 ES
5	4.071-143.0	Tank conversion Version 2
6	5.010-834.0	Cover plate turbine BR 47/35 Esc
6	5.007-434.0	Крышка из листового металла турбина
7	7.306-180.0	Screw M5x10-A2-70 (In6Rd)
8	7.306-151.0	Cylinder head screw M8x65 -8.8-A2E ISO4
9	6.390-269.0	Hose
10	5.034-672.0	Retaining bracket with hose
11	7.306-019.0	Cylinder head screw M8x35 -A4-70 ISO 47
12	6.368-360.0	Protection part
13	7.305-035.0	Countersunk screw M 4x10-A2-70-SCHW (IN
14	5.044-555.0	Holder float regulator
14	5.044-663.0	Holder float regulator
15	6.631-846.0	Float regulator
16	6.641-369.0	Locknut PG13,5
17	6.641-278.0	Cable gland PG7
18	5.308-056.0	Stud bolt
19	6.339-021.0	Rubber buffer 2xM6-D20 H15
20	7.312-292.0	Washer 6 -A2 ISO 7093-1
21	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
22	6.490-183.0	Vacuum motor 120V
22	6.490-135.0	Vacuum motor
23	5.363-111.0	Joint ring
24	6.388-713.0	Hose clip
25	6.388-949.0	SUCTION TUBE
26	6.390-757.0	Suction hose BR4735ESC
26	6.391-502.0	Suction hose
27	6.312-114.0	Joint ring
28	5.122-410.0	Flange
29	7.312-289.0	Washer 8 -A2 ISO 7093-1
30	7.306-193.0	Screw M6x16 -A2-70 (In6Rd)
31	5.007-435.0	Plate front SCHWALL
32	6.610-221.0	Carbon brush set
33	6.368-295.0	Protecting cap
34	6.641-776.0	Strain relief
35	5.391-330.0	Label operating manual short
35	5.391-052.0	Label operating manual short
