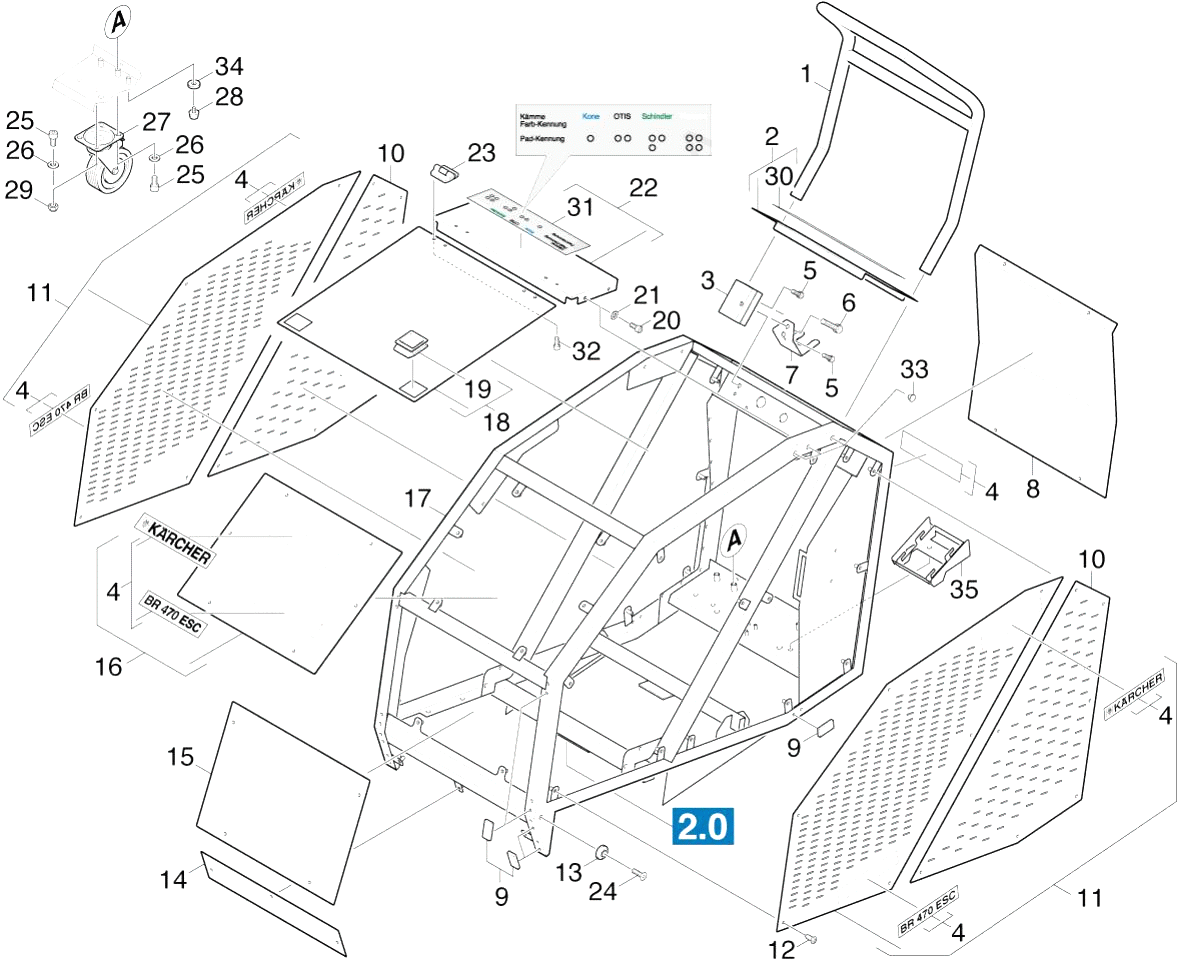

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 6.997-027.0 | Shearing shackle | |
| 3 | 6.997-028.0 | Bracket retaining bracket | |
| 4 | 5.380-255.0 | Label BR 470 ESC | |
| 7 | 6.997-029.0 | Hose holder | |
| 8 | 6.997-030.0 | Covering rear | |
| 9 | 6.997-002.0 | Protecting cap | |
| 10 | 6.997-031.0 | Side cladding | |
| 11 | 6.997-032.0 | Side cladding | |
| 12 | 7.303-037.0 | Screw M5x10 -St-P2R (In6Rd) | |
| 14 | 6.997-033.0 | Covering front | |
| 15 | 6.997-034.0 | Covering front | |
| 16 | 6.997-036.0 | Covering above | |
| 18 | 6.997-038.0 | Cap of a tank | |
| 19 | 6.997-063.0 | Closure | |
| 20 | 7.306-180.0 | Screw M5x10-A2-70 (In6Rd) | |
| 21 | 7.312-058.0 | Washer 5 -A2 ISO 7090 | |
| 22 | 6.997-040.0 | Sheet metal component complete | |
| 23 | 6.997-041.0 | Hinge | |
| 24 | 7.305-053.0 | Countersunk screw M6x16-A2-70 (IN6RD) | |
| 25 | 7.306-218.0 | Screw M 8x16-A2-70 DIN 7984 | |
| 26 | 7.312-017.0 | Washer 8-A2 ISO 7089 | |
| 27 | 4.515-078.0 | Fixed castor complete | |
| 28 | 6.997-026.0 | Rubber buffer | |
| 29 | 7.311-027.0 | Hexagon nut M 8-A4-70 ISO 7042 | |
| 30 | 5.380-254.0 | Label Bedienung | |
| 32 | 7.306-130.0 | Cylinder head screw M 6x10-A4-70 DIN 91 | |
| 35 | 5.391-330.0 | Label operating manual short | |
| 36 | 5.384-379.0 | Label BR 4735 ESC | |
| 37 | 5.390-521.0 | Label | |
| 37 | 5.383-754.0 | Label | |
| 38 | 5.380-554.0 | Label Frischwasserzulauf | |
| 38 | 5.392-941.0 | Label intake fresh water | |
| 39 | 5.001-752.0 | Plate | |
| 40 | 5.363-344.0 | Joint ring |
