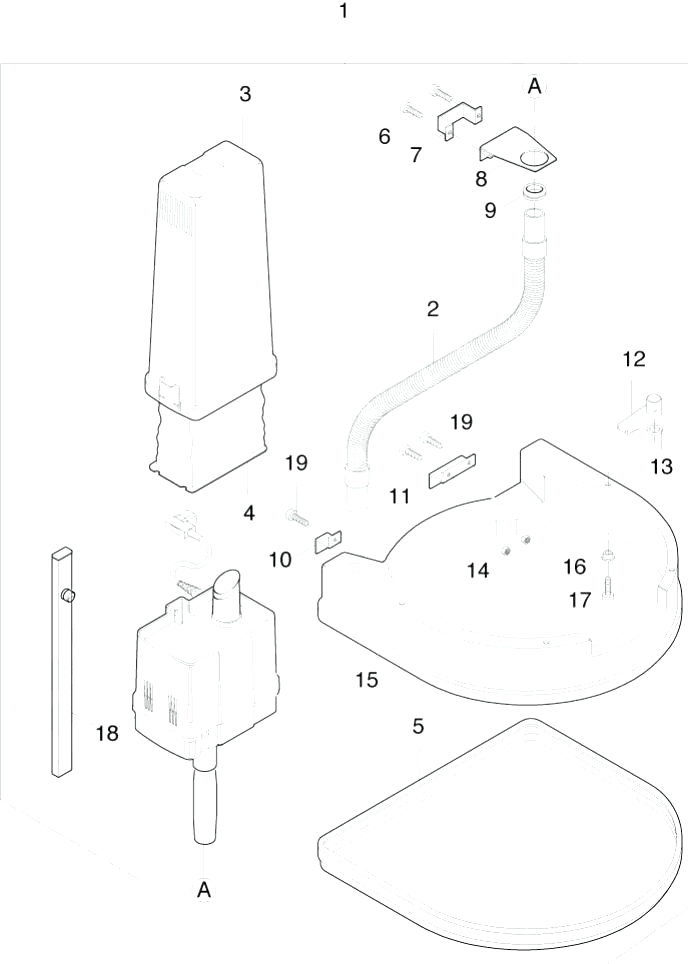

Karcher (Керхер) Детали пылесос. (0.206-260.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.905-955.0	Motor 230V
1	6.905-956.0	Мотор 110V
3	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
3	7.312-001.0	Washer 4 -200HV-A3E ISO 7089
4	6.904-071.0	Filter bag 10 St.
4	6.612-713.0	Electric motor 0,6kW 230V
4	7.306-056.0	Screw M4x8 -8.8-R2R (In6Rd)
5	6.362-794.0	Joint ring -500MM
5	6.362-793.0	Уплотнительное кольцо -450MM
5	5.600-058.0	Blower wheel
5	6.362-792.0	Joint ring D 400mm
5	6.905-958.0	Connection cable 230V
6	7.306-651.0	Cylinder head screw M 5X 8- 4.8-A2E I
7	5.110-686.0	Spacer sleeve
8	7.303-038.0	Screw M5x12 -St-P2R (In6Rd)
8	6.905-350.0	Bracket
8	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
9	5.671-014.0	Top panel gear
10	7.306-337.0	Oval head screw M 4x35-A2-70 ISO 7045
10	6.905-351.0	Holder
10	7.401-115.0	Ball bearing 6002-2RS -WAELZLAGST DIN 62
11	6.304-125.0	Oval head screw M 5X 30
11	5.625-318.0	Belt pulley 21Z
12	6.348-383.0	Toothed belt HTD-447-3M-15 CXPIII
13	7.343-003.0	Locking ring 12x1-Rf-St DIN 471
14	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
14	4.100-124.0	Shaft gear right BR VS
15	6.905-356.0	Moulded part -450MM
15	4.100-125.0	Shaft gear left BR VS
16	6.348-401.0	Toothed belt
17	7.311-001.0	Hexagon nut M4 -8-A2E ISO 4032
17	7.303-078.0	Sheet metal screw ST4,8X19-ST-A2R (KOMBI
17	6.310-123.0	Speed nut self-locking ST 4,2
18	5.056-010.0	Rocker BR-VS
19	6.905-966.0	Cable
19	7.306-071.0	Screw M5x10 -8.8-R2R (In6Rd)
19	6.273-183.0	Cord cellular rubber
20	4.762-250.0	Roller brush white (old colour black)
20	4.762-458.0	Roller brush red complete
20	4.762-251.0	Roller brush orange (old colour red)
20	4.762-254.0	Roller brush complete light blue
21	7.343-231.0	Locking ring 32x1,2 -St-ph DIN 472
22	4.100-226.0	Driveshaft complete
23	6.905-455.0	Hose clip
23	7.401-169.0	Ball bearing 6201-2RS-WAELZLAGST DIN 625
24	5.110-685.0	Sleeve
25	5.625-357.0	Belt pulley 56Z HTD 3M
26	6.905-433.0	Washer
26	7.312-292.0	Washer 6 -A2 ISO 7093-1
27	6.647-106.0	Bracket cable
27	7.343-001.0	Locking ring 10x1-Rf-St DIN 471
28	6.905-976.0	Moulded part
28	6.363-245.0	Gasket disc 12/5,2-V2A
29	7.303-104.0	Screw 5x16 -A2-70 (IN6RD)
30	6.288-095.0	Viscous oil
31	6.905-977.0	Rocker switch
31	5.332-469.0	Helical spring
32	7.312-052.0	Washer 5 -A2 ISO 7089
32	5.031-499.0	Motor flange BR VARIO
33	7.311-421.0	Hexagon nut M 5-04-A2E ISO 10511
33	7.306-119.0	Cylinder head screw M8x12 -A2-70 ISO 47
34	7.306-191.0	Screw M6x10 -A2-70 (In6Rd)
