Karcher (Керхер) Детали (0.163-842.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

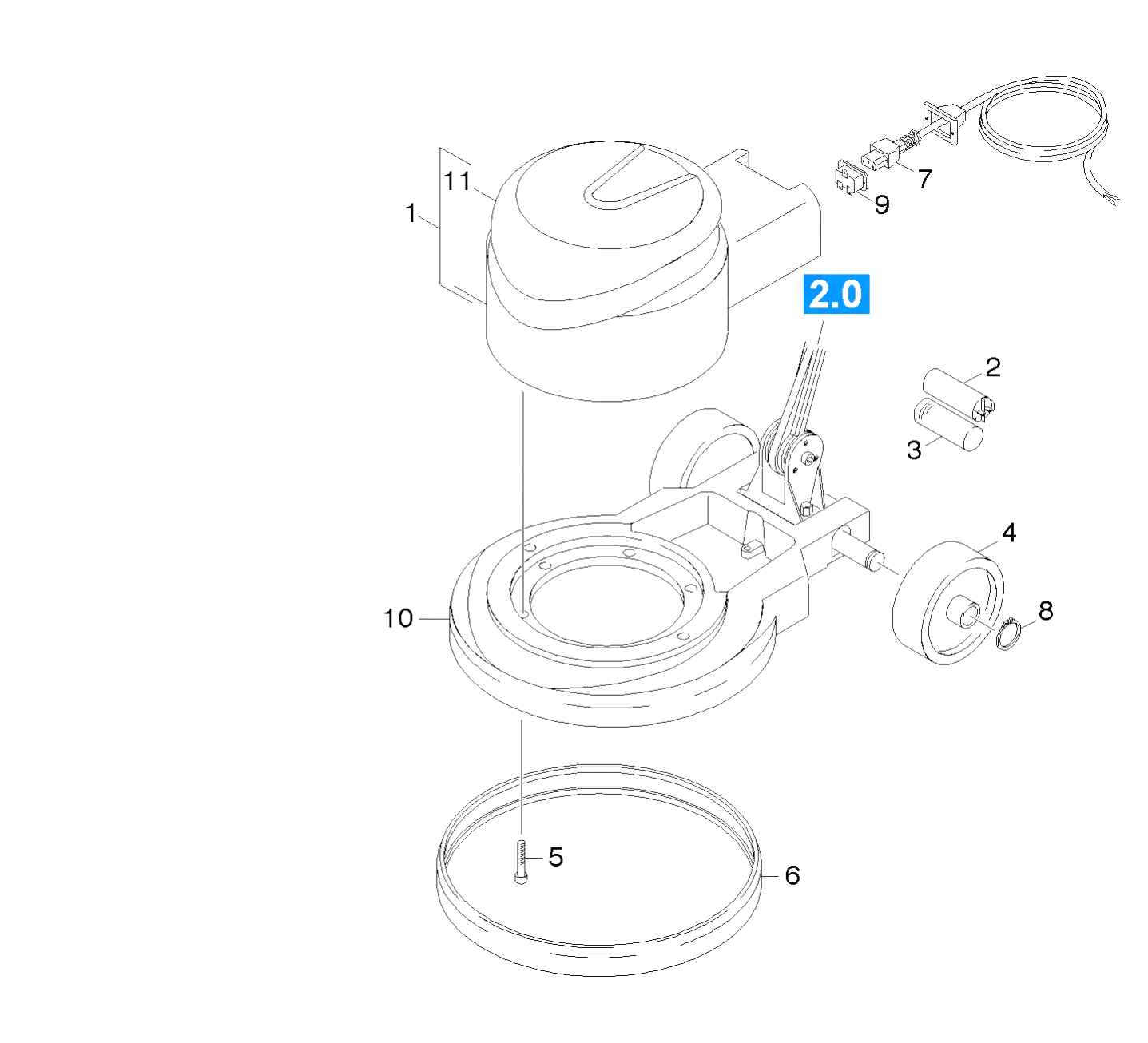

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.066-332.0	Motor housing complete
1	4.481-211.0	Covering cap handhold complete
2	6.661-259.0	Capacitor start-up 430-516µF
2	6.394-440.0	Small type parts handhold
2	6.661-243.0	Capacitor start-up
2	6.661-245.0	Capacitor start-up
3	6.394-441.0	Lever set handhold
3	6.661-258.0	Capacitor work BDS 43/150 220V/60Hz
3	6.661-244.0	Capacitor work
3	6.661-246.0	Capacitor work WIRBEL 12-117
3	6.661-260.0	Capacitor work 60µF
4	6.601-482.0	Holder tank 15-130, 13-301
4	6.435-706.0	Wheel
5	6.649-243.0	Cable main stream plug MX
5	6.649-191.0	Cable main stream plug UK
5	6.648-900.0	Cable main stream 15m
5	7.306-143.0	Cylinder head screw M6x25 -A4-70 ISO 47
6	6.635-468.0	Housing switch BDS 43/150,410C
6	6.368-379.0	Ram protection WIRBEL 16-375K
7	6.635-465.0	Switch on/off
7	6.648-899.0	Cable with plug
8	6.661-270.0	Gear wheel
8	7.343-020.0	Locking ring 12x1-Bronze DIN 471
9	6.661-271.0	Slide of a press
9	6.661-273.0	Socket
10	6.435-764.0	Shearing shackle BDS 43/ 150/410
10	6.050-002.0	Base frame
11	6.906-962.0	Tie rod L 865
11	5.069-045.0	Covering cap bottom
12	6.661-285.0	Housing shearing shackle
13	6.373-875.0	Angle for joint
14	6.435-786.0	Shearing shackle complete BDS 43/150 C M
14	6.435-785.0	Shearing shackle complete BDS 43/150 C
14	6.435-788.0	Shearing shackle complete BDS 43/150 C
14	6.435-787.0	Shearing shackle complete BDS 43/410 C
