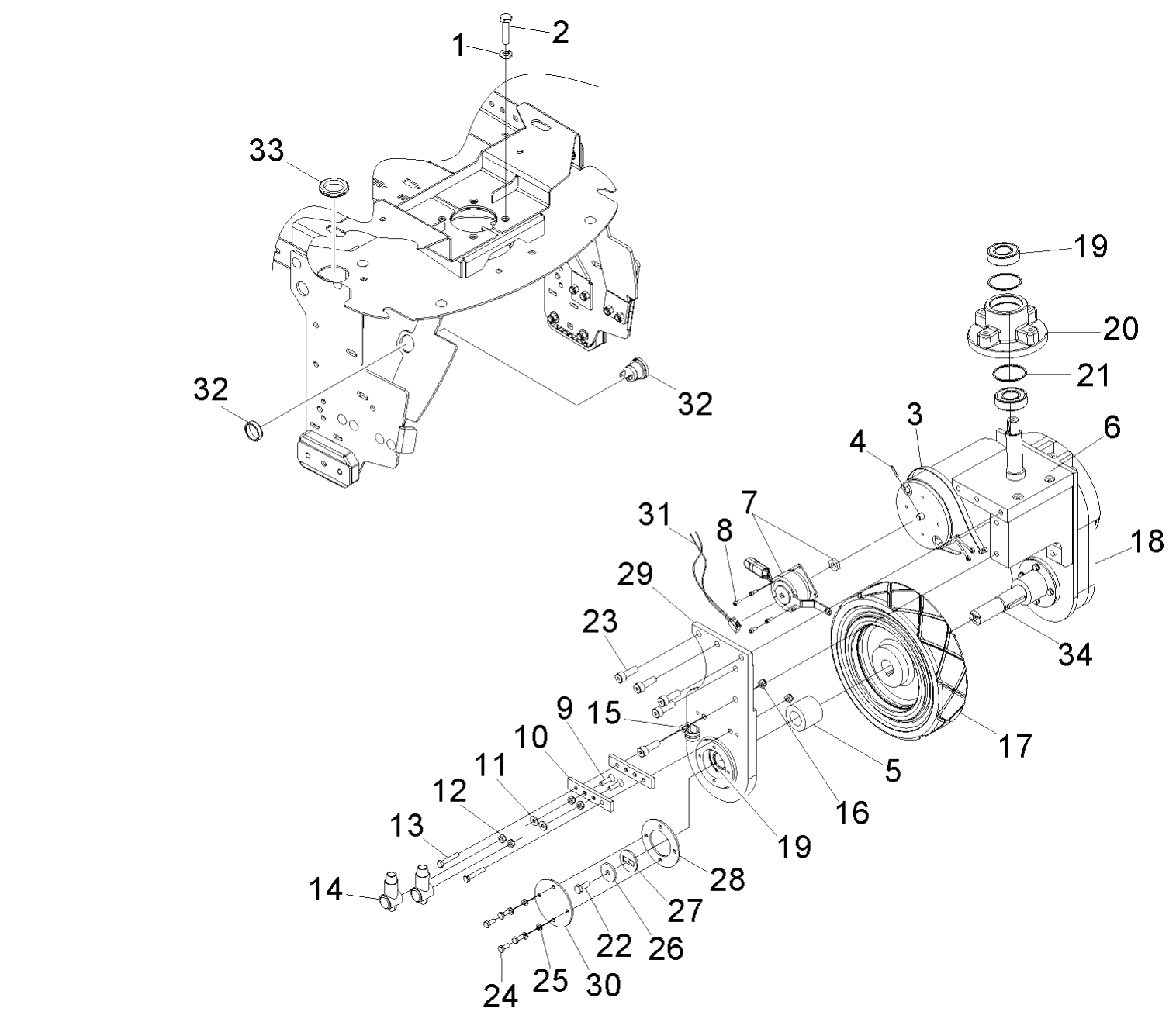

Karcher (Керхер) Привод переднее колесо (0.201-338.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
8.627-519.0 |
Screw 3/8-16 X 1.25 HHCS SS |
|
| 2 |
8.601-079.0 |
Washer 3/8 SPLIT LOCK PLTD |
|
| 3 |
8.600-283.0 |
Cable tie .375 X 24.7 |
|
| 4 |
8.600-617.0 |
"""PIN, ROLL 1/8"""" X 3/4~L SS """ |
|
| 5 |
8.622-444.0 |
SPACER,25.51 ID X 45OD X 39.1L |
|
| 6 |
8.622-402.0 |
SHAFT ASM, DRIVE PIVOT |
|
| 7 |
8.600-174.0 |
Brake 36VDC W/CONNECTOR |
|
| 8 |
8.627-334.0 |
SCR,CAP 8-32x3/8 SHCS SS |
|
| 9 |
8.600-684.0 |
Screw 1/4-20 X 1 FHCS PLTD |
|
| 11 |
8.601-063.0 |
Washer 1/4 ID X 5/8 OD SS |
|
| 12 |
8.600-571.0 |
Nut 1/4-20 HEX W/STAR WASHER |
|
| 13 |
8.627-374.0 |
Screw 1/4-20 x 1.5 HHCS SS |
|
| 14 |
8.600-892.0 |
BOOT, RUBBER TERM. ISOLATOR |
|
| 15 |
8.623-341.0 |
CLAMP, 3/4 DIA CUSHION .406DIA |
|
| 16 |
8.600-581.0 |
Nut 1/4-20 HEX NYLOCK SS |
|
| 17 |
8.633-389.0 |
WHEEL, 10 X 2.5, COMPOSITE, W/KEYWAY |
|
| 18 |
8.631-719.0 |
GEAR BOX DRIVE UNIT HELICAL |
|
| 19 |
8.622-398.0 |
Sealed ball 25mmx52mm |
|
| 20 |
8.621-942.0 |
Hub steering |
|
| 21 |
8.622-348.0 |
Ring 52MM INTERNAL SNAP |
|
| 22 |
8.613-664.0 |
SCR, M8-1.25 X 20 HHMS PLTD |
|
| 23 |
8.631-883.0 |
SCREW, M10-1.5 X 30 SCHCS |
|
| 24 |
8.627-734.0 |
SCREW, M6-1 X 15 HHCS |
|
| 25 |
8.627-969.0 |
WASHER, M6 SPLIT LOCK BLK |
|
| 26 |
8.627-971.0 |
WASHER, M8 (2THK X 26. OD) |
|
| 27 |
8.622-581.0 |
WASHER, ANTI-ROTATION |
|
| 28 |
8.622-272.0 |
PLATE, BEARING RETAINER |
|
| 29 |
8.622-276.0 |
PLATE, DRIVE YOKE RH |
|
| 30 |
8.622-277.0 |
PLATE, BEARING COVER |
|
| 31 |
8.632-087.0 |
Switch brake 36V |
|
| 32 |
8.623-972.0 |
HORN, 108DB MINATURE W/RING |
|
| 33 |
8.623-850.0 |
GROMMET,1.703IDX2.5.ODX.125GRV |
|
| 34 |
8.621-499.0 |
AXLE, DRIVE |
|
