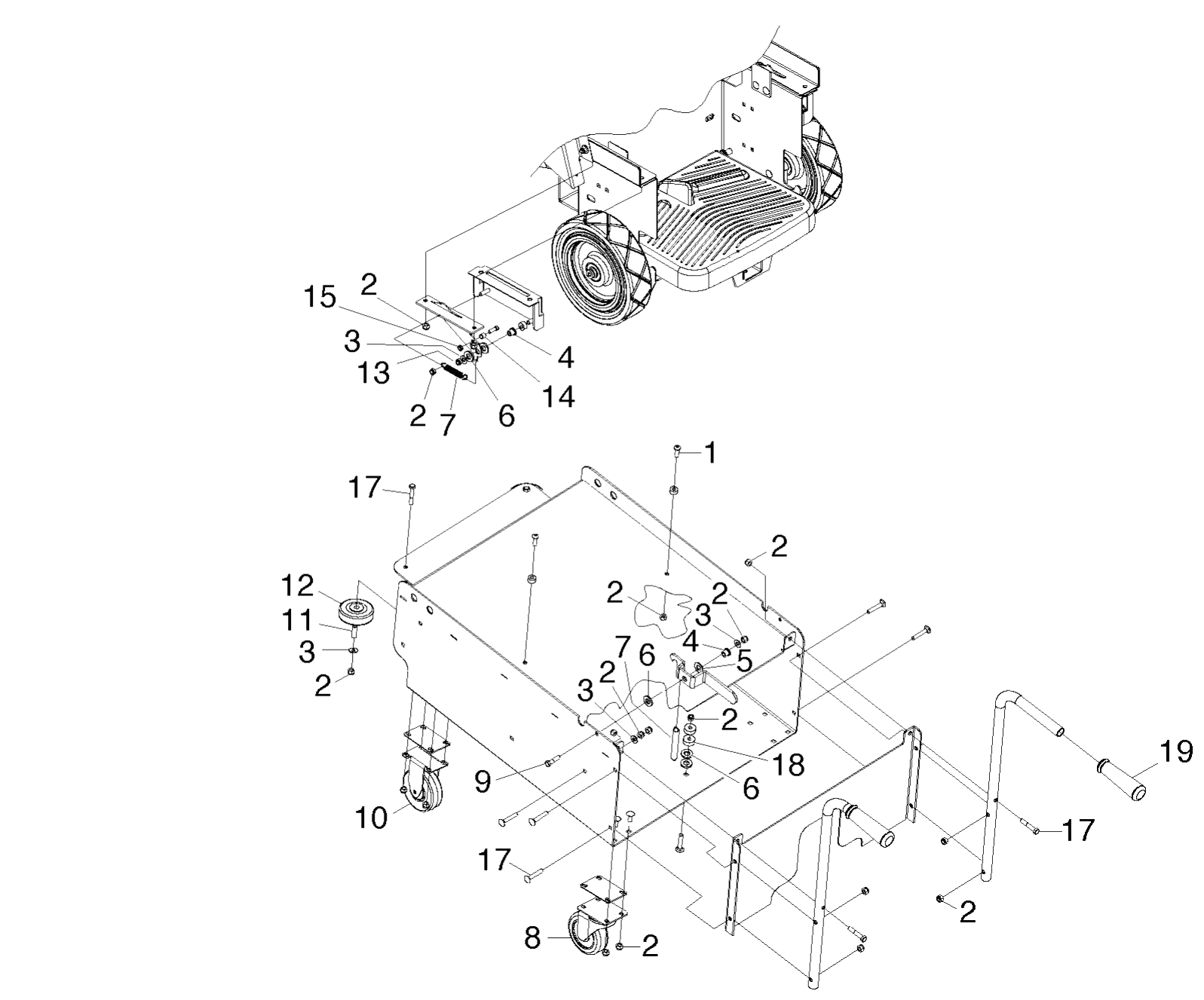

Karcher (Керхер) Аккумулятор вагон (0.116-079.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
8.600-693.0 |
Screw 5/16-18 X 1.00 BSHCS SS |
|
| 1 |
8.627-913.0 |
Washer 5/16 SPLIT LOCK PLTD |
|
| 2 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 2 |
8.600-153.0 |
HOSEBARB, 1/2MPT X 1/2 HOSE 90 |
|
| 3 |
8.601-067.0 |
Washer 5/16 FLAT SS |
|
| 3 |
8.618-821.0 |
NIP, 1/2 X 3/8 HEX BR |
|
| 4 |
8.622-884.0 |
Bearing FLANGED.314IDX.502OD |
|
| 4 |
8.624-801.0 |
Nut 8-32 ACORN CAP, PLATED |
|
| 5 |
8.625-941.0 |
Washer THRUST.51 ID X1ODX.063 |
|
| 5 |
8.623-315.0 |
CLAMP, 3/8 HOSE (D-SLOT) |
|
| 6 |
8.625-940.0 |
Washer THRUST.51 ID X 1 ODBRO |
|
| 6 |
8.627-099.0 |
Nut 10-32 HEX NYLOCK SS |
|
| 7 |
8.625-489.0 |
Spring EXT, .50D X 4.0L |
|
| 7 |
8.627-913.0 |
Washer 5/16 SPLIT LOCK PLTD |
|
| 8 |
8.619-943.0 |
"""CASTER SWIVEL 4"""" 250# CPCTY """ |
|
| 8 |
8.619-805.0 |
TEE, 3/4 FPT |
|
| 9 |
8.613-673.0 |
SCREW, M6-1 X 40 PNHMS BLKOX |
|
| 10 |
8.624-214.0 |
KNOB, 3/8-16 X 1.5 |
|
| 10 |
8.623-259.0 |
"""CASTER, 4"""" HARD RUBBER RIGID """ |
|
| 10 |
8.627-678.0 |
SCR, 5/16-18 X 3/4 HHCS SS |
|
| 11 |
8.607-103.0 |
BRKT ASSEMBLY, REAR COVER |
|
| 11 |
8.600-135.0 |
BUSHING, SPANNER .435 X 1.10 |
|
| 11 |
8.624-776.0 |
Nipple 3/4 CLOSE PVCE |
|
| 12 |
8.601-102.0 |
"""Wheel 3"""" DIA CUSHION RUBBER """ |
|
| 13 |
8.627-184.0 |
Nut 5/16-18 HEX NYLOCK THIN SS |
|
| 13 |
8.623-311.0 |
"""CLAMP, 1.0"""" WORM GEAR """ |
|
| 14 |
8.600-813.0 |
SPACER, 3/8ODX..062WX.312L,AL |
|
| 14 |
8.622-568.0 |
"""VALVE, 3/8"""" FPT BALL """ |
|
| 15 |
8.627-187.0 |
NUT, 1/4-20 HEX NYLCK THIN SS |
|
| 15 |
8.619-742.0 |
ELBOW, 3/8NPT STREET |
|
| 16 |
8.619-754.0 |
HOSEBARB, 3/8MPT X 1/2 DL |
|
| 17 |
8.627-679.0 |
Screw 5/16-18 X 1.75 HHCS SS |
|
| 17 |
8.625-612.0 |
STRAINER, 1/2 FPT 100 MESH |
|
| 18 |
8.625-428.0 |
SPACER, 1.00 ODX .32ID X .375 |
|
| 18 |
8.601-078.0 |
Washer 1/4 SPLIT LOCK PLTD |
|
| 19 |
8.600-407.0 |
GRIP, POLISHER HANDLE |
|
| 19 |
8.631-551.0 |
HOSE, DRAIN 1.0 X 110 CONV |
|
| 20 |
8.626-492.0 |
"""CABLE TIE, 7"""" UL/CSA """ |
|
| 21 |
8.627-441.0 |
Винт 10-32x1,25 |
|
| 23 |
8.601-065.0 |
Washer #10 X 9/16 OD |
|
| 24 |
8.600-610.0 |
PUMP ASM, 36V ACCESSORY |
|
| 25 |
8.627-182.0 |
NUT, 5/16-18 X .028-.056PR CAGE |
|
| 27 |
8.607-396.0 |
"""CAP, 3/4"""" GHT W/.17 HOLE """ |
|
| 28 |
8.619-794.0 |
HOSEBARB, 3/8MPTX1/2 90D DL |
|
| 29 |
8.624-609.0 |
"""LANYARD,.093X6"""", 1~LOOP-.26EYE """ |
|
| 30 |
8.625-432.0 |
SPACER, .17IDX.25ODX3/16LG |
|
| 31 |
8.625-945.0 |
Washer 1.0 OD X .1 THK, SEAL |
|
| 32 |
8.625-273.0 |
Screw 8-32 X 1/2 BHCS SST |
|
| 33 |
8.623-330.0 |
"""CLAMP, 1.25"""" WORM GEAR SS """ |
|
| 34 |
8.601-060.0 |
Valve SOLENOID,36VDC,1/2 BARB |
|
