Karcher (Керхер) Детали (0.136-211.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

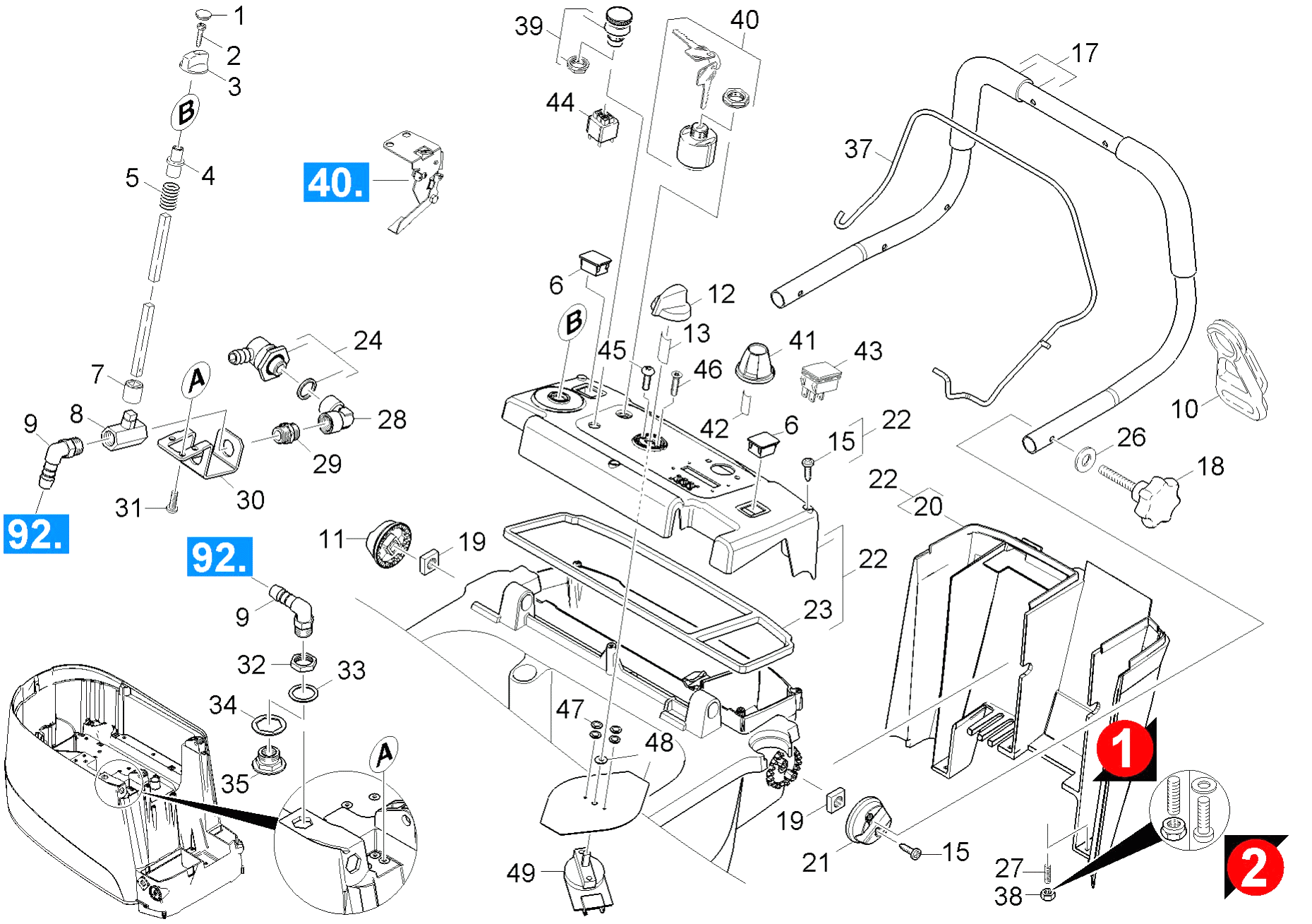

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.368-076.0	Ornamental hub cap D10/D12
2	7.303-065.0	Sheet metal screw ST3,5X25-ST-A2R (IN6R
3	5.321-509.0	Handhold
4	5.470-034.0	Coupler
5	5.332-290.0	Helical spring
6	6.631-736.0	Blind plug
7	5.470-033.0	Coupler
8	6.412-289.0	Ball valve
9	6.390-002.0	Angle bushing
10	6.641-776.0	Strain relief
11	5.032-754.0	Fixing retaining bracket right
12	5.321-738.0	Handhold operational concept
15	7.303-108.0	Screw 5x20 -10.9-R2R (In6Rd)
17	4.034-147.0	Retaining bracket handhold only for repl
18	6.321-179.0	Star grip
19	7.311-570.0	Square nut M8 -05-A2E DIN 557
20	5.033-358.0	Covering cap electronics blue BAT/PACK D
20	5.033-449.0	Covering cap electronics blue BAT/PACK
21	5.032-755.0	Fixing retaining bracket left
22	3.071-102.0	Control panel replacement SC 22
23	5.362-010.0	Seal control panel BR/BD 45-55/40
24	6.395-187.0	Angle bushing G3-8
26	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
27	7.306-133.0	Screw M6x50 -8.8-R3R (In6Rd)
27	7.307-418.0	Threaded pin M6x35 -St-45H-A2E ISO 4026
28	6.395-186.0	"""Elbow connector G3/8"""" """
29	6.395-185.0	"""Double nipple G3/8"""" """
30	5.044-816.0	Holder ball valve
31	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
32	5.311-204.0	Hexagon nut M22x1,5
33	7.343-211.0	Shim ring 22x30x1-ST2K50 DIN 988
34	5.515-293.0	Seal hexagon
35	5.131-071.0	Sleeve fresh water
37	4.034-136.0	Retaining bracket Bp
38	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
38	7.311-022.0	Hexagon nut M 6-A2-70 ISO 7040
39	6.600-344.0	Pushbutton emergency stop
40	6.630-106.0	Key switch
41	5.321-750.0	Handhold info panel
43	6.632-398.0	Switch two-pole traction BR/BD45-55/40W
44	6.600-114.0	Switch
45	7.306-208.0	Screw M 4x16-A2-70 (IN6RD)
46	7.305-019.0	Countersunk screw M4x16 -8.8-R2R (In6Rd
47	7.312-027.0	Washer 6-KUNSTSTOFF ISO7089
48	5.033-593.0	Covering cap for circuit board
49	2.630-001.0	Switch program selection
