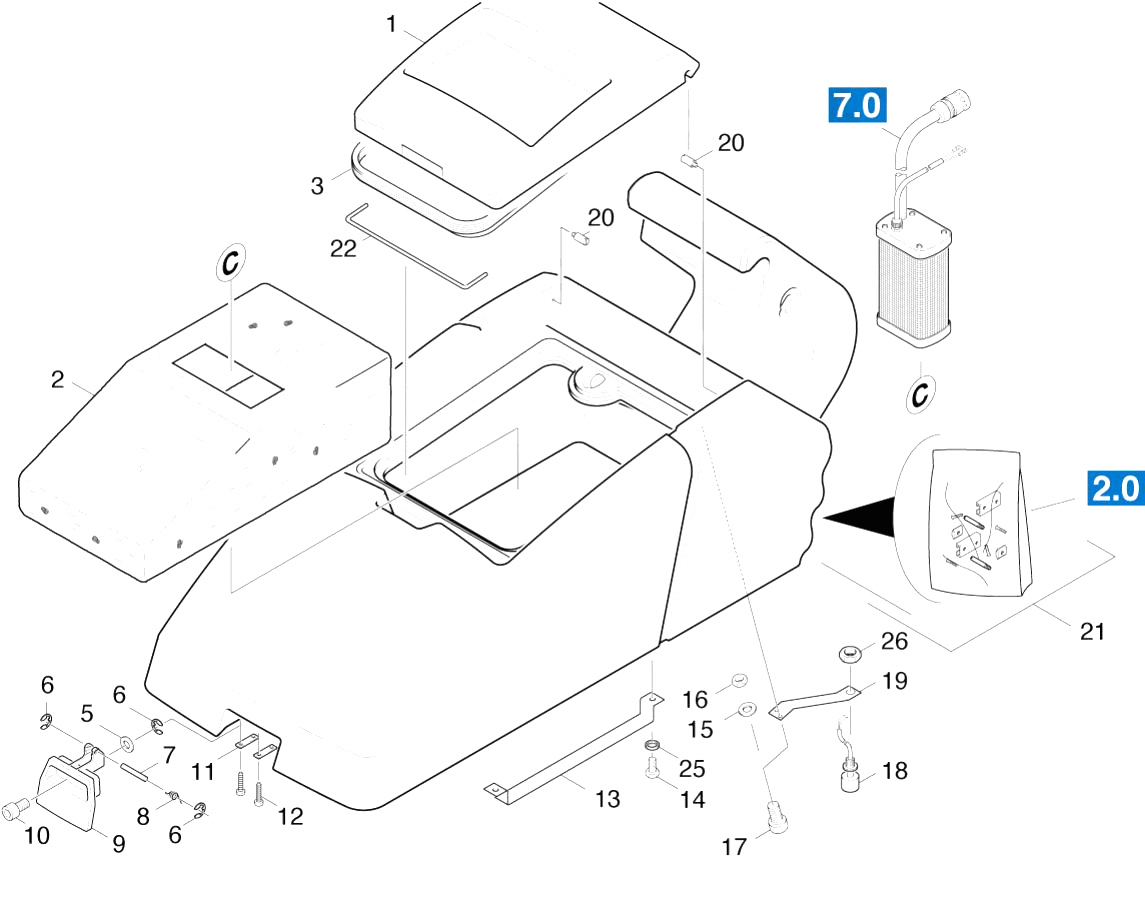

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 5.063-741.0 | Cover | |
| 2 | 5.367-033.0 | Diaphragm | |
| 3 | 6.366-043.0 | Sealing profile | |
| 5 | 7.312-003.0 | Washer 6 -200HV-A3E ISO 7090 | |
| 6 | 7.343-203.0 | Lock washer 4-A2 DIN 6799 | |
| 7 | 7.314-095.0 | Straight pin 6m6x40-St ISO 2338 | |
| 8 | 5.335-031.0 | Spiral spring | |
| 9 | 5.321-531.0 | Handhold | |
| 10 | 5.305-251.0 | Cylinder head screw | |
| 11 | 5.001-472.0 | Plate | |
| 12 | 7.303-026.0 | Screw 4x16 -A2-70 (In6Rd) | |
| 13 | 5.034-515.0 | Retaining bracket | |
| 14 | 7.304-395.0 | Hexagonal head screw M8x16-8.8-A2E ISO | |
| 15 | 7.312-001.0 | Washer 4 -200HV-A3E ISO 7089 | |
| 16 | 7.311-064.0 | Hexagon nut M 4-A2-70 ISO 4032 | |
| 17 | 7.306-207.0 | Screw M4x12 -A2-70 (In6Rd) | |
| 18 | 6.631-309.0 | Float regulator | |
| 19 | 5.042-943.0 | Holder | |
| 20 | 5.316-392.0 | Bolt | |
| 21 | 5.071-121.0 | Tank | |
| 21 | 4.071-117.0 | Tank | |
| 22 | 5.107-169.0 | Bar tank | |
| 25 | 7.312-004.0 | Washer 8 -200HV-A3E ISO 7090 | |
| 26 | 6.641-483.0 | Locknut PG7 |
