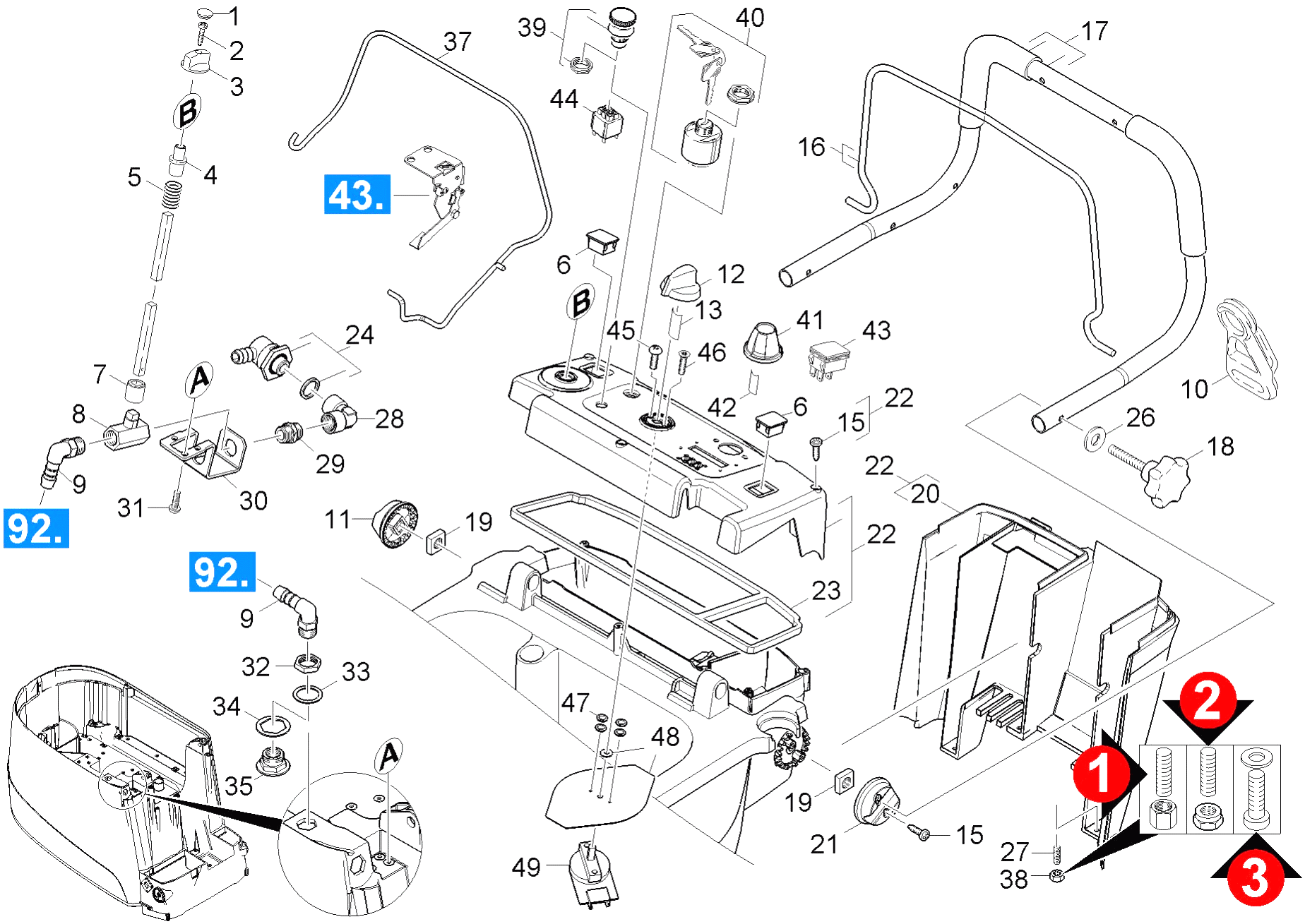

поломоечной машины Karcher (Керхер) BR 45/40C Bp Pack DOSE (1.533-112.0)

Karcher (Керхер) Детали (0.164-367.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
1 6.368-076.0 Ornamental hub cap D10/D12
2 7.303-065.0 Sheet metal screw ST3,5X25-ST-A2R (IN6R
3 5.321-509.0 Handhold
4 5.470-034.0 Coupler
5 5.332-290.0 Helical spring
6 6.631-736.0 Blind plug
7 5.470-033.0 Coupler
8 6.412-289.0 Ball valve
9 6.390-002.0 Angle bushing
10 6.641-776.0 Strain relief
11 5.032-754.0 Fixing retaining bracket right
12 5.321-738.0 Handhold operational concept
14 7.303-107.0 Screw 5x16 -10.9-P2R (K-In6Rd)
15 7.303-108.0 Screw 5x20 -10.9-R2R (In6Rd)
16 5.034-760.0 Retaining bracket mains
17 4.034-146.0 Strap handhold only for replacement
17 4.034-147.0 Retaining bracket handhold only for repl
18 6.321-179.0 Star grip
19 7.311-570.0 Square nut M8 -05-A2E DIN 557
20 5.033-130.0 Covering cap electronics Ep
20 5.032-901.0 Covering cap electronics BAT/PACK Dose
20 5.032-890.0 Covering cap electronics BAT/PACK
21 5.032-755.0 Fixing retaining bracket left
22 3.071-082.0 Control panel only for replacement
23 5.362-010.0 Seal control panel BR/BD 45-55/40
24 6.395-187.0 Angle bushing G3-8
26 7.312-277.0 Washer 8-200HV-A2E ISO7093-1
27 7.306-133.0 Screw M6x50 -8.8-R3R (In6Rd)
27 7.307-418.0 Threaded pin M6x35 -St-45H-A2E ISO 4026
28 6.395-186.0 """Elbow connector G3/8"""" """
29 6.395-185.0 """Double nipple G3/8"""" """
30 5.044-816.0 Holder ball valve
32 5.311-204.0 Hexagon nut M22x1,5
33 7.343-211.0 Shim ring 22x30x1-ST2K50 DIN 988
34 5.515-293.0 Seal hexagon
35 5.131-071.0 Sleeve fresh water
37 4.034-136.0 Retaining bracket Bp
38 7.311-022.0 Hexagon nut M 6-A2-70 ISO 7040
38 7.311-422.0 Hexagon nut M 6-1.4305 ISO 10511
38 7.312-260.0 Washer 6 -100HV-A3E ISO 7094
39 6.600-344.0 Pushbutton emergency stop
40 6.630-106.0 Key switch
41 5.321-750.0 Handhold info panel
42 6.313-014.0 Spring element
43 6.632-398.0 Switch two-pole traction BR/BD45-55/40W
44 6.600-114.0 Switch
45 7.306-208.0 Screw M 4x16-A2-70 (IN6RD)
46 7.305-019.0 Countersunk screw M4x16 -8.8-R2R (In6Rd
47 7.312-027.0 Washer 6-KUNSTSTOFF ISO7089
48 5.033-593.0 Covering cap for circuit board
49 2.630-001.0 Switch program selection
