Karcher (Керхер) Ведущая дуга (0.162-184.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

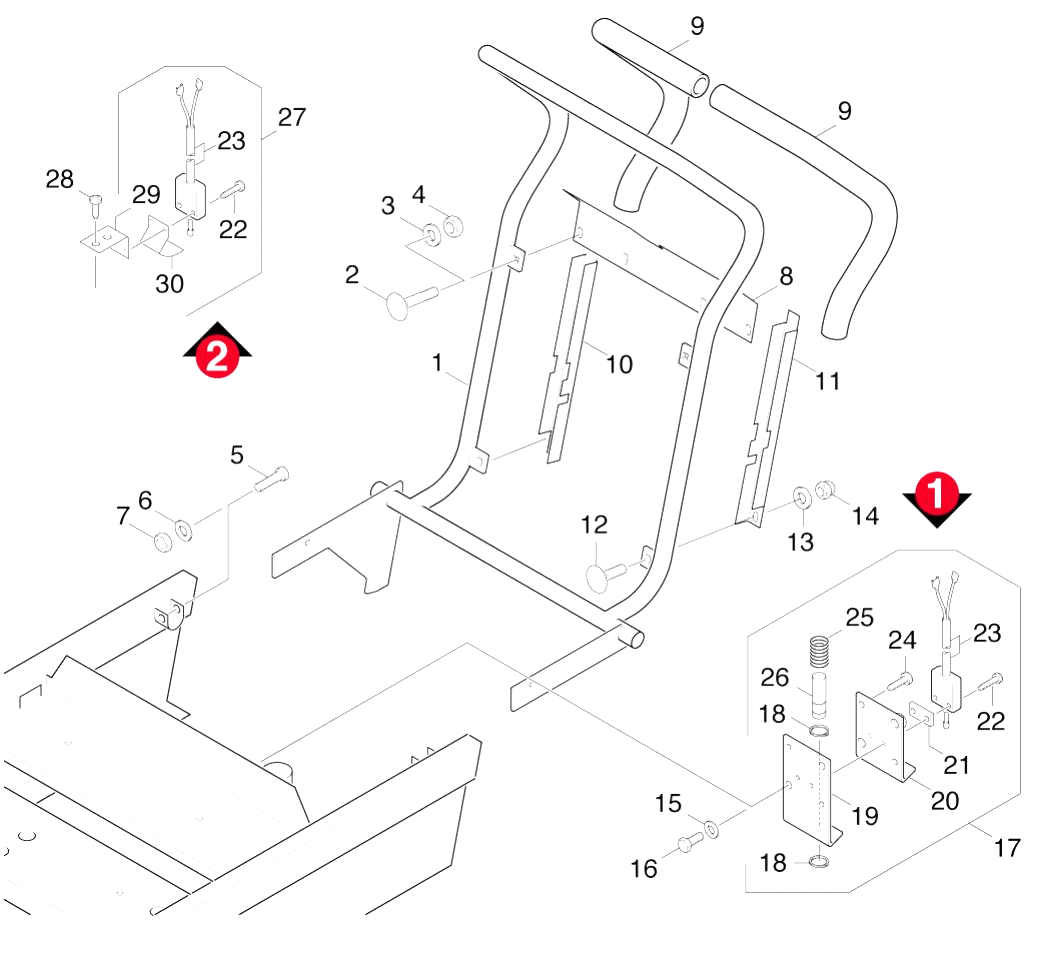

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.321-079.0	Handhold
2	7.303-193.0	Saucer-head screw M 8x16-4.6-A0P DIN 60
3	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
4	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
5	7.306-129.0	Screw M6x40 -8.8-R3R (In6Rd)
6	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
7	7.311-422.0	Hexagon nut M 6-1.4305 ISO 10511
8	5.019-280.0	Angle
9	5.442-933.0	Piece of tube
10	5.190-051.0	Strip
11	5.190-053.0	Strip
12	7.303-139.0	Saucer-head screw M6x20 -A2 DIN 603
13	7.312-291.0	Washer 6-200HV-A2R ISO7093-1
14	7.311-380.0	Cap nut M6 -6-A2E DIN 1587
15	7.312-002.0	Washer 5-200HV-A3E ISO 7090
16	7.306-077.0	Screw M5x16 -8.8-R2R (In6Rd)
17	4.744-102.0	Switch complete
18	7.343-303.0	Locking ring 8-A2 DIN 6799
19	5.019-305.0	Angle
20	4.021-105.0	Angle complete
21	5.004-696.0	Strap
22	6.303-014.0	Self-tapping screw M3X 16-ST-A2E
23	6.631-852.0	Micro switch
24	7.303-030.0	Screw M4x8 -St-P2R (In6Rd)
25	5.332-160.0	Helical spring
26	5.560-038.0	Slide of a press
27	4.744-107.0	Switch complete
