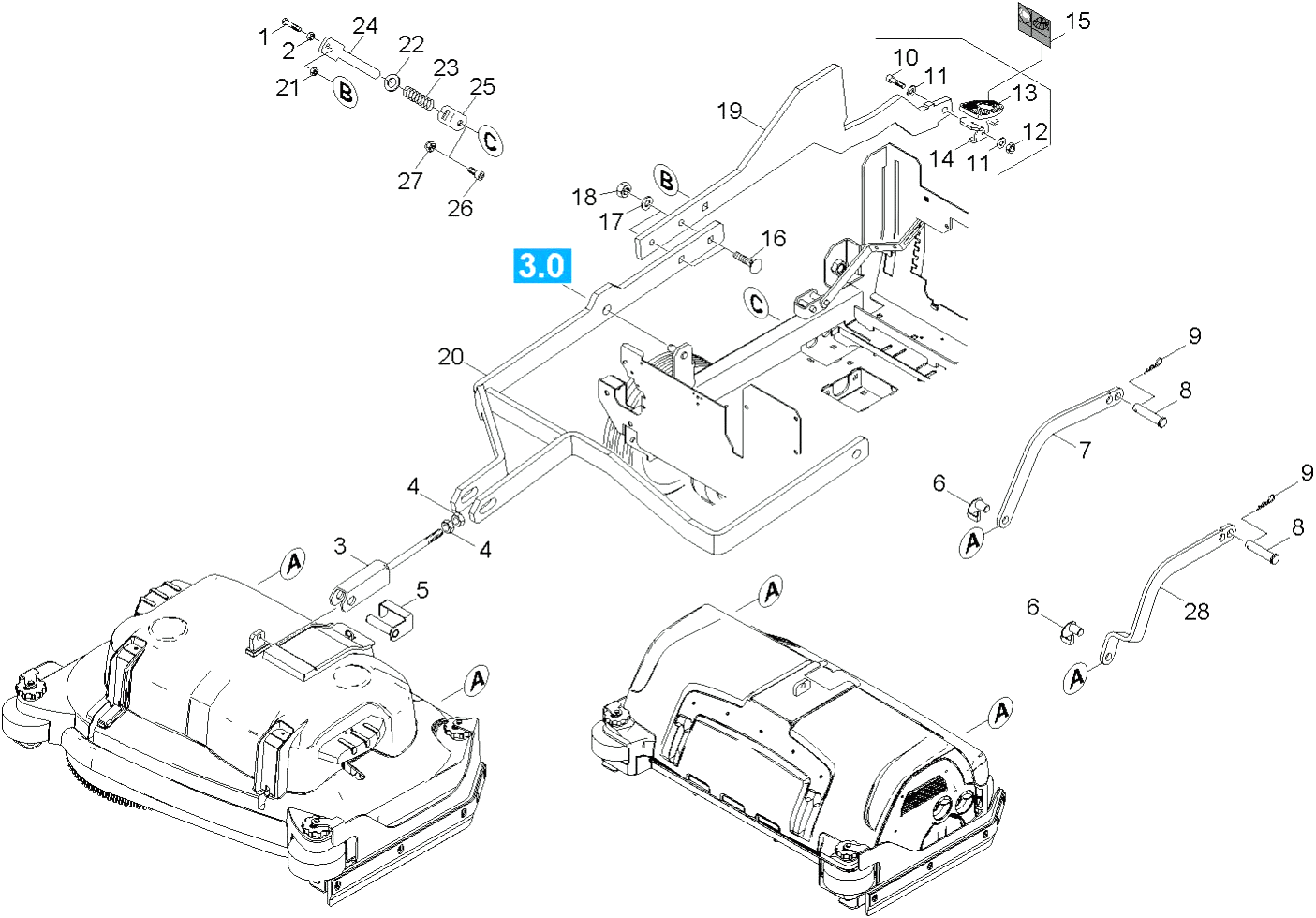

Karcher (Керхер) Верхняя часть насадки поднятие (0.164-804.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.303-008.0	Saucer-head screw M 8x35-ST-A0P DIN 603
2	7.311-510.0	Hexagon nut M 8-8-A2E ISO 7040
3	5.009-313.0	Plate adjustment
4	7.311-224.0	Hexagon nut M 8-04-A2E ISO 4035
5	4.481-244.0	Locking part
6	4.481-247.0	Locking part connecting rods head BD
7	5.062-221.0	Connecting rod right B 80 W
8	5.317-375.0	Болт фиксация шатун B 80 W
9	6.777-362.0	Spring clip low-end 16 mm
10	7.306-041.0	Cylinder head screw M8x20 -8.8-A2E ISO
11	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
12	7.311-004.0	Hexagon nut M8 -8-A3E ISO 4032
13	6.321-046.0	Coating pedal
14	5.059-032.0	Sheet metal component NEU
15	5.385-368.0	Label set complete
16	7.303-194.0	Saucer-head screw M8x25-St-A0P DIN 603
17	7.312-017.0	Washer 8-A2 ISO 7089
18	7.311-432.0	Hexagon nut M 8-1.4305 ISO 10511
19	5.009-696.0	Листовой металл педаль
20	4.481-238.0	Lever brush-head
21	7.311-075.0	Hexagon nut M8-LH-8-A2E ISO 4032
22	7.312-089.0	Washer 16-200HV ISO 7089
23	5.332-965.0	Pressure spring
24	5.009-762.0	Plate Federhalter
25	5.061-958.0	Sheet metal component holder contact pre
26	7.306-060.0	Cylinder head screw M10x16-8.8-A3E ISO
27	7.311-423.0	Hexagon nut M10 -04-A2E ISO 10511
28	5.062-222.0	Шатун слева B 80 W
