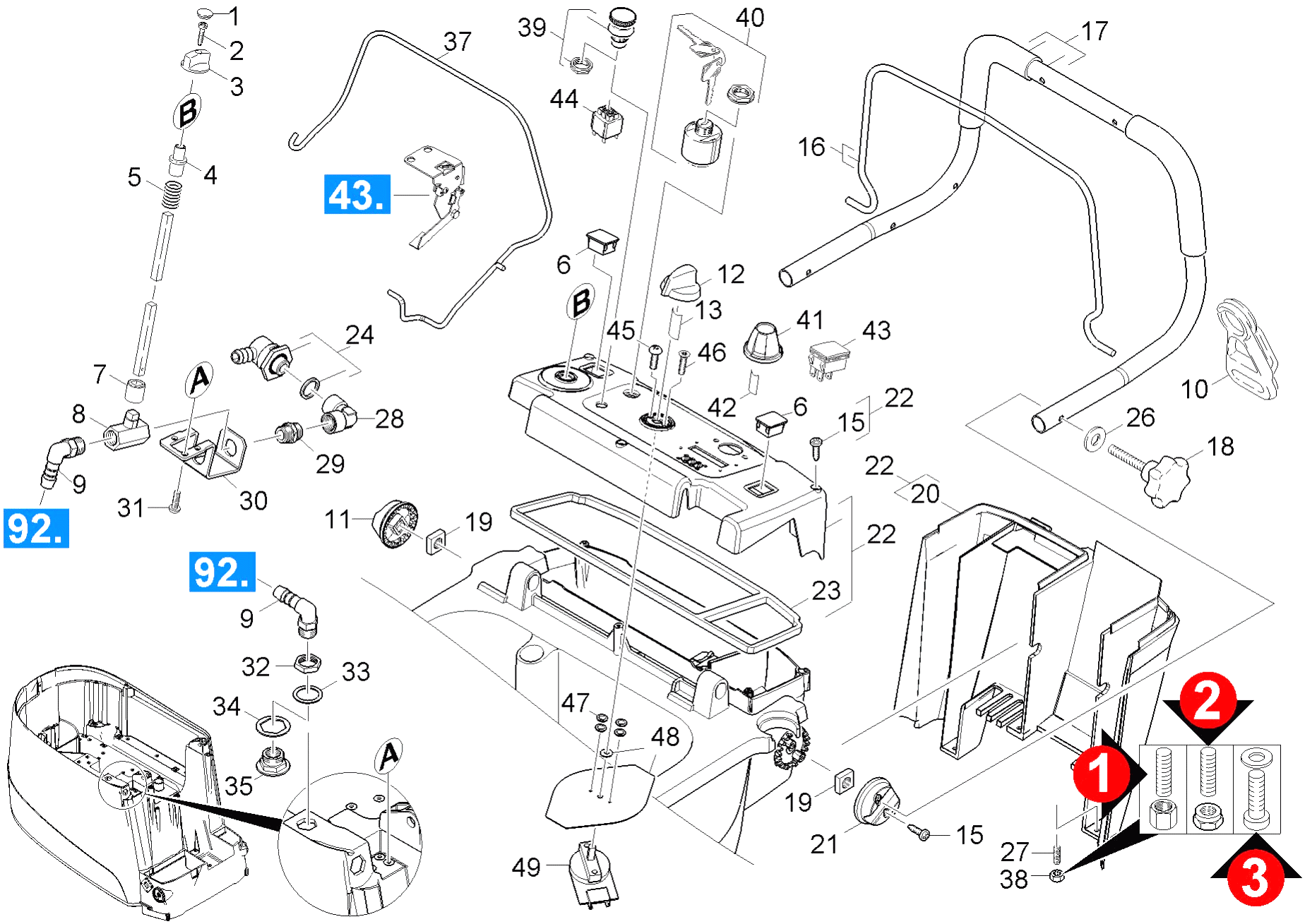

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.368-076.0	Ornamental hub cap D10/D12
2	7.303-065.0	Sheet metal screw ST3,5X25-ST-A2R (IN6R
3	5.321-509.0	Handhold
4	5.470-034.0	Coupler
5	5.332-290.0	Helical spring
6	6.631-736.0	Blind plug
7	5.470-033.0	Coupler
8	6.412-289.0	Ball valve
9	6.390-002.0	Angle bushing
10	6.641-776.0	Strain relief
11	5.032-754.0	Fixing retaining bracket right
12	5.321-738.0	Handhold operational concept
13	6.313-014.0	Spring element
14	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
15	7.303-108.0	Screw 5x20 -10.9-R2R (In6Rd)
16	5.034-760.0	Retaining bracket mains
17	4.034-147.0	Retaining bracket handhold only for repl
17	4.034-146.0	Strap handhold only for replacement
18	6.321-179.0	Star grip
19	7.311-570.0	Square nut M8 -05-A2E DIN 557
20	5.032-890.0	Covering cap electronics BAT/PACK
20	5.032-901.0	Covering cap electronics BAT/PACK Dose
20	5.033-130.0	Covering cap electronics Ep
21	5.032-755.0	Fixing retaining bracket left
22	3.071-082.0	Control panel only for replacement
23	5.362-010.0	Seal control panel BR/BD 45-55/40
24	6.395-187.0	Angle bushing G3-8
26	7.312-277.0	Washer 8-200HV-A2E ISO7093-1
27	7.307-418.0	Threaded pin M6x35 -St-45H-A2E ISO 4026
27	7.306-133.0	Screw M6x50 -8.8-R3R (In6Rd)
