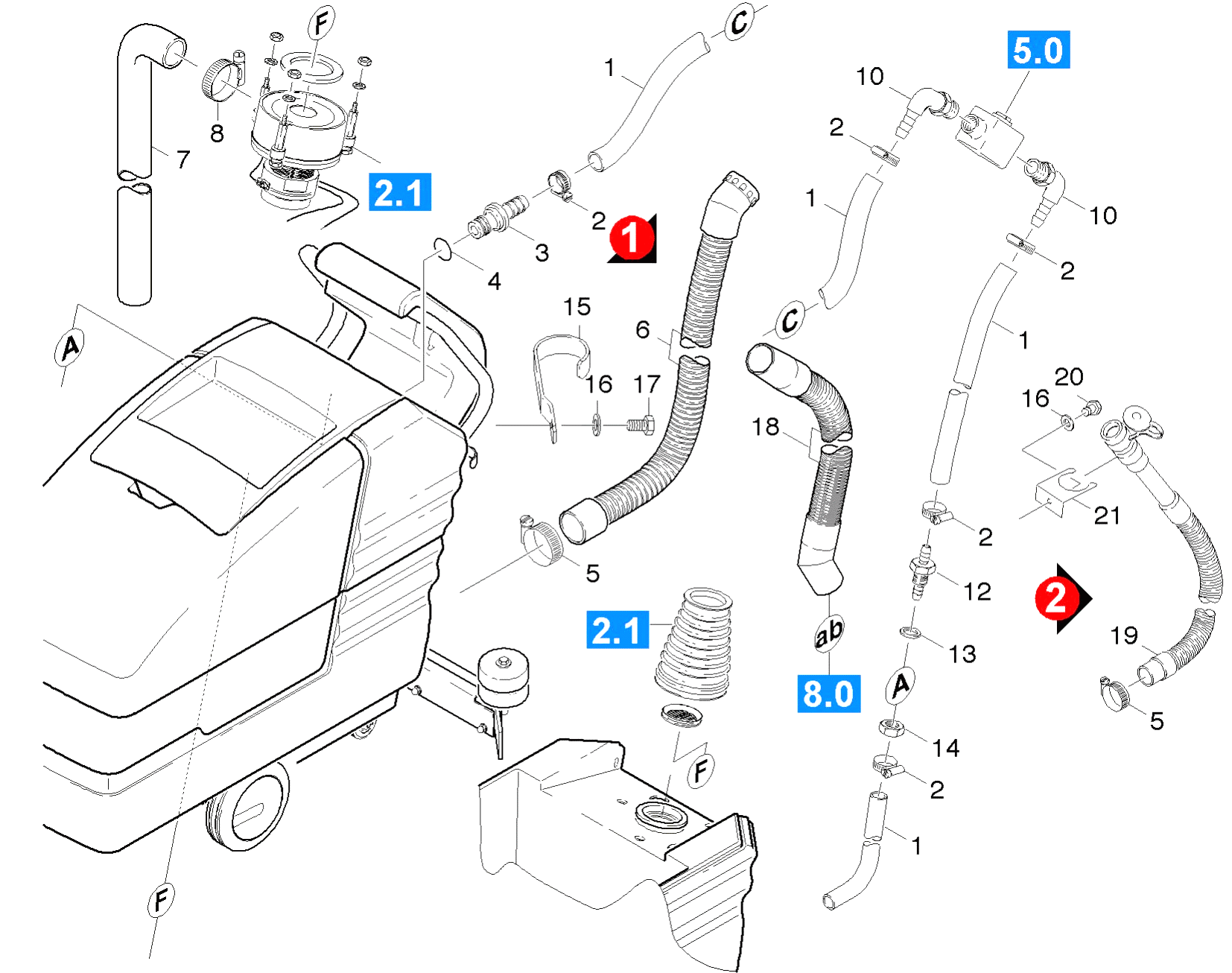

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 6.388-248.0 | Hose DN12,5 | |
| 2 | 6.388-546.0 | Hose clip | |
| 3 | 5.443-375.0 | Hose stem | |
| 4 | 6.362-395.0 | O-Ring seal 14,0 X 1,78-NBR 70 | |
| 6 | 4.446-012.0 | Drain hose only for replacement BR/BD 55 | |
| 7 | 6.388-949.0 | SUCTION TUBE | |
| 8 | 6.388-713.0 | Hose clip | |
| 10 | 6.390-002.0 | Angle bushing | |
| 12 | 5.443-434.0 | Hose stem | |
| 13 | 6.362-358.0 | Seal | |
| 14 | 6.310-004.0 | """Hexagon nut G 1/2"""" """ | |
| 15 | 5.044-194.0 | Holder drain hose | |
| 16 | 7.312-003.0 | Washer 6 -200HV-A3E ISO 7090 | |
| 17 | 7.306-193.0 | Screw M6x16 -A2-70 (In6Rd) | |
| 18 | 6.390-729.0 | Suction hose DN38 | |
| 18 | 6.390-227.0 | Suction hose DN 38 | |
| 19 | 6.390-609.0 | Drain hose DN38 BR/BD 750/TRIKE | |
| 19 | 6.390-734.0 | Drain hose DN38 | |
| 20 | 7.303-112.0 | Screw 6x20 -10.9-R2R (In6Rd) | |
| 21 | 5.059-011.0 | Sheet metal component |
