поломоечной машины Karcher (Керхер) BD 530XL PACK (1.127-451.0)

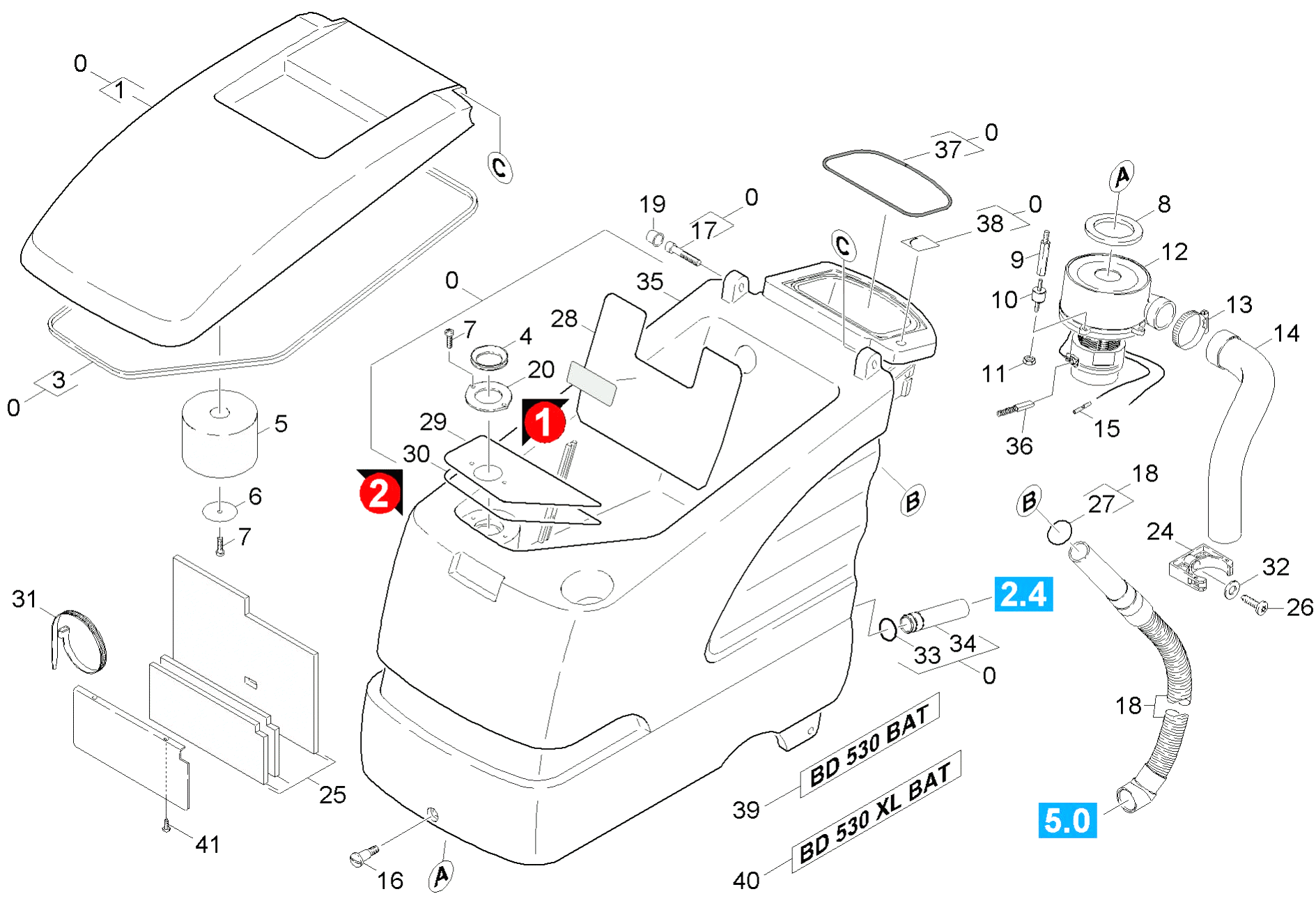

Karcher (Керхер) Крышка и мотор (0.163-570.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
0 4.605-073.0 Housing low noise
0 4.605-067.0 Housing and cover
1 5.063-766.0 Cover
3 6.366-043.0 Sealing profile
4 5.363-344.0 Joint ring
5 5.585-058.0 Float BR/BD 530
6 5.115-754.0 Washer
7 7.303-107.0 Screw 5x16 -10.9-P2R (K-In6Rd)
8 5.363-574.0 Joint ring
9 5.308-056.0 Stud bolt
10 6.339-021.0 Rubber buffer 2xM6-D20 H15
11 7.311-541.0 Hexagon nut M 6-8-A2E EN 1661
12 6.490-308.0 Vacuum motor 24 V
13 6.641-474.0 Cable tape 8-210
14 6.390-215.0 Soundproof hose
14 6.388-949.0 SUCTION TUBE
15 6.647-543.0 Series connector 6,0mm?
16 5.305-204.0 Shaped screw
17 7.306-049.0 Cylinder head screw M 8x45-8.8-A2E ISO
18 4.390-007.0 Suction hose complete
18 4.390-002.0 Suction hose complete oil resistant
19 6.368-295.0 Protecting cap
20 5.001-752.0 Plate
24 6.373-692.0 Pipe clip D 63
25 5.637-001.0 Sound insulation for sheet metal compone
26 7.306-031.0 Screw M 6x16-A2-70 DIN 7984
27 6.362-089.0 O-Ring seal 40,0 X 3,0
28 6.395-186.0 """Elbow connector G3/8"""" """
28 5.008-301.0 Sheet metal component
29 6.395-185.0 """Double nipple G3/8"""" """
29 5.001-813.0 Plate
30 5.044-816.0 Holder ball valve
30 5.363-420.0 Seal
31 6.647-081.0 Cable tape
32 5.311-204.0 Hexagon nut M22x1,5
32 7.312-017.0 Washer 8-A2 ISO 7089
33 7.343-211.0 Shim ring 22x30x1-ST2K50 DIN 988
33 6.362-385.0 O-Ring seal 26,0 X 2,5-NBR 70
34 5.515-293.0 Seal hexagon
34 5.128-352.0 Tube
35 5.131-071.0 Sleeve fresh water
35 5.060-992.0 Housing red
36 6.610-022.0 Carbon brush
37 4.034-136.0 Retaining bracket Bp
37 6.273-145.0 Cord cellular rubber
38 7.311-422.0 Hexagon nut M 6-1.4305 ISO 10511
38 7.311-022.0 Hexagon nut M 6-A2-70 ISO 7040
38 7.312-260.0 Washer 6 -100HV-A3E ISO 7094
38 5.382-594.0 Label water tap
39 6.600-344.0 Pushbutton emergency stop
39 5.382-646.0 Label BD530 BAT
40 6.630-106.0 Key switch
40 5.382-802.0 Label BD530 XL BAT
41 5.321-750.0 Handhold info panel
41 7.304-393.0 Hexagonal head screw M 8x10-8.8-A2E ISO
42 6.313-014.0 Spring element
43 6.632-398.0 Switch two-pole traction BR/BD45-55/40W
44 6.600-114.0 Switch
45 7.306-208.0 Screw M 4x16-A2-70 (IN6RD)
46 7.305-019.0 Countersunk screw M4x16 -8.8-R2R (In6Rd
47 7.312-027.0 Washer 6-KUNSTSTOFF ISO7089
48 5.033-593.0 Covering cap for circuit board
49 2.630-001.0 Switch program selection
