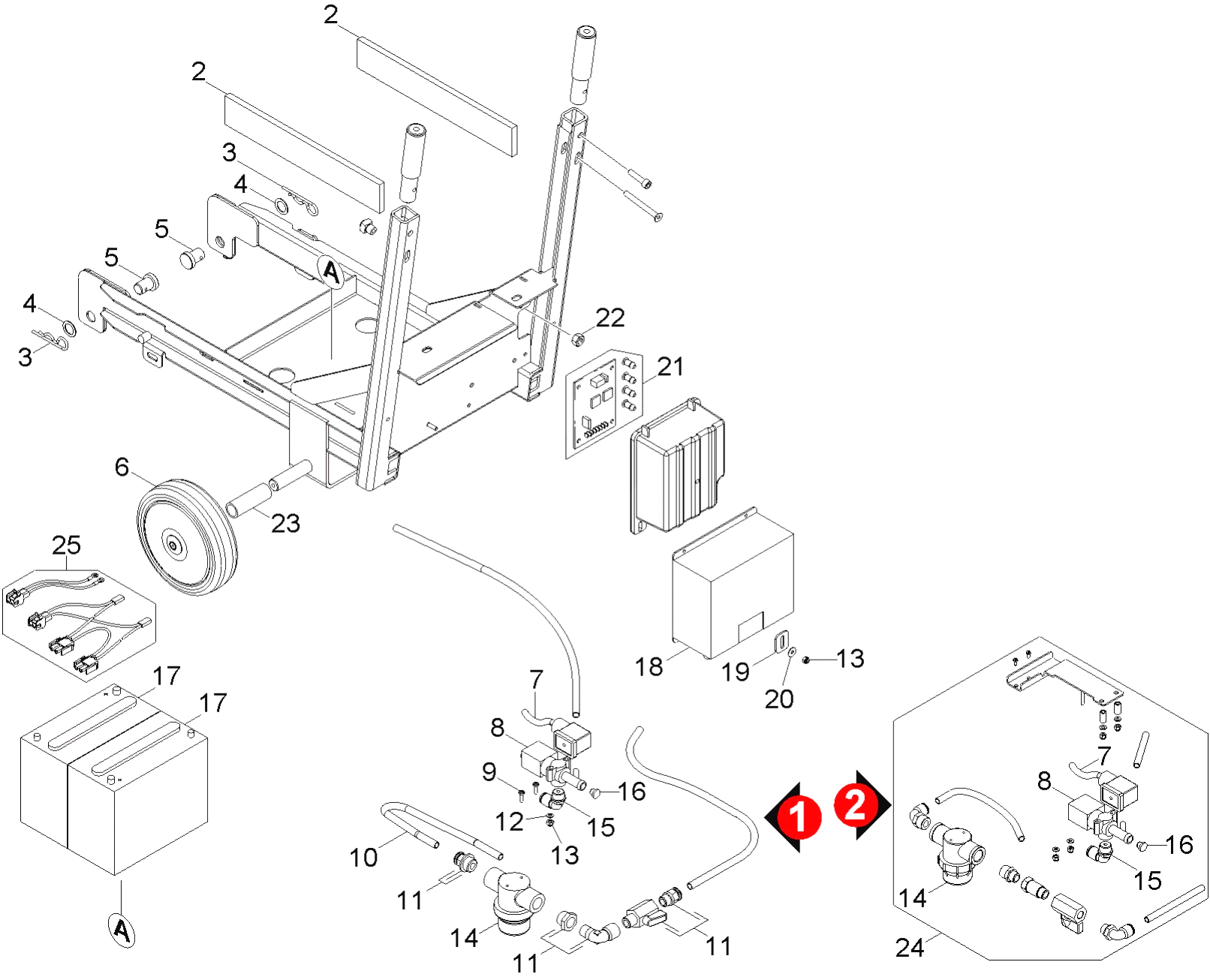

Karcher (Керхер) Рамка (0.201-371.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
2	6.680-053.0	Distance holder for battery
3	6.680-054.0	Spring clip
4	6.680-055.0	Washer D.15 DIN125 A2
5	6.680-056.0	Bolt brush-head
6	6.680-064.0	Wheel complete
7	6.680-059.0	Connection cable solenoid valve
8	6.680-060.0	Solenoid valve 1/4''
9	7.303-102.0	Screw 3,5x12 -A2-70-bk (In6Rd)
10	6.680-061.0	Hose AD=8mm ID=5mm
11	6.680-063.0	Water tap kit
12	7.312-067.0	Washer 4-A2 ISO 7089
13	7.311-424.0	Hexagon nut M4 -8-A2E ISO 7040
14	6.680-062.0	Water filter 3/8''
15	6.680-065.0	Angle connection 1/4''
16	6.680-066.0	Cover
17	6.654-275.0	Drive battery maintenance free 12V , 25A
18	6.680-068.0	Battery charger 24V 5AH
18	6.680-179.0	Battery charger 24V/5AH ,120V
18	6.680-163.0	Battery charger BD 40/12 C *JP
19	6.680-069.0	Plate bracket
20	7.312-293.0	Washer 4-A2 ISO 7093-1
21	6.680-160.0	Control system circuit board BD 40/12 C
22	7.311-067.0	Hexagon nut M 6-A2-70 ISO 4032
23	6.680-058.0	Bush
24	6.680-161.0	Add-on kit water distributor BD 40/12 C
25	6.680-167.0	Add-on kit cable connection Bat+Steuerun
39	5.008-301.0	Sheet metal component
40	5.128-352.0	Tube
41	6.362-385.0	O-Ring seal 26,0 X 2,5-NBR 70
42	6.610-022.0	Carbon brush
43	5.382-594.0	Label water tap
