Karcher (Керхер) Комплект аккумуляторов 105Ah (0.165-953.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

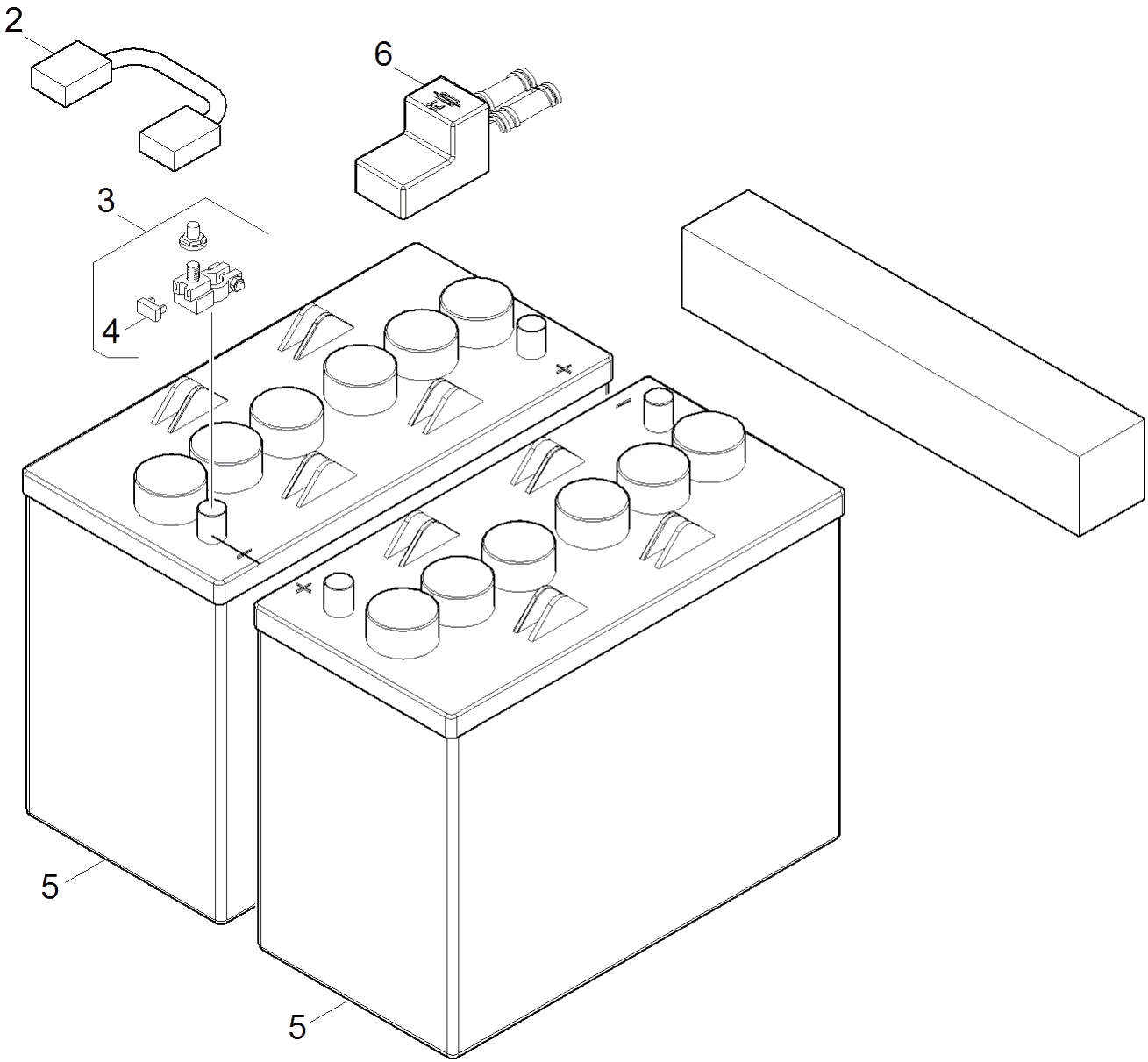

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.454-198.0	Worm gearing i=20
2	6.649-880.0	Cable battery 25 mm?
2	7.401-173.0	Ball bearing 6204-2RS-WAELZLAGST DIN 625
3	6.643-956.0	Pole binder single 100A
3	5.122-470.0	Flange worked
4	6.644-363.0	Fuse replacement 100A
4	7.303-067.0	Screw M8x16-ST-A3R (IN6RD)
5	6.654-141.0	Drive battery maintenance free 12V, 105A
5	5.100-566.0	Shaft
6	5.394-782.0	Кожух полюса аккумулятора
6	7.318-030.0	Parallel key 6x6x25 -C45R DIN 6885-1
7	5.116-359.0	Sleeve
8	5.122-462.0	Retainer transmission die casting
9	7.343-115.0	Locking ring 47x1,75 -St-ph DIN 472
10	7.312-268.0	Washer 8 -A2 ISO 7094
11	7.304-538.0	Hexagonal head screw M8x16-A4-70 ISO 40
16	6.035-006.0	Sphere level indicator
17	5.035-608.0	Wire protecting sleeve
18	6.391-913.0	Elbow nipple
19	5.035-328.0	Silicon hose level indicator
20	5.035-404.0	Handle
21	4.035-426.0	Ball valve complete replacement
22	5.035-459.0	Coupler piece ball valve
23	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
24	5.035-408.0	Seal holder ball valve
25	5.035-369.0	Bar
26	4.035-501.0	Drain hose with cover oil resistant B40/
26	4.035-442.0	Drain hose with cover yellow
27	6.392-936.0	Suction hose oil resistant B40/60
28	5.035-723.0	Cover drain hose yellow
28	5.035-815.0	Cover drain hose oil resistant
29	6.388-767.0	Hose clip 70- 90
