поломоечной машины Karcher (Керхер) B 80 W Bp PACK DOSE (1.259-004.0)

Karcher (Керхер) Верхняя часть насадки поднятие (0.108-837.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

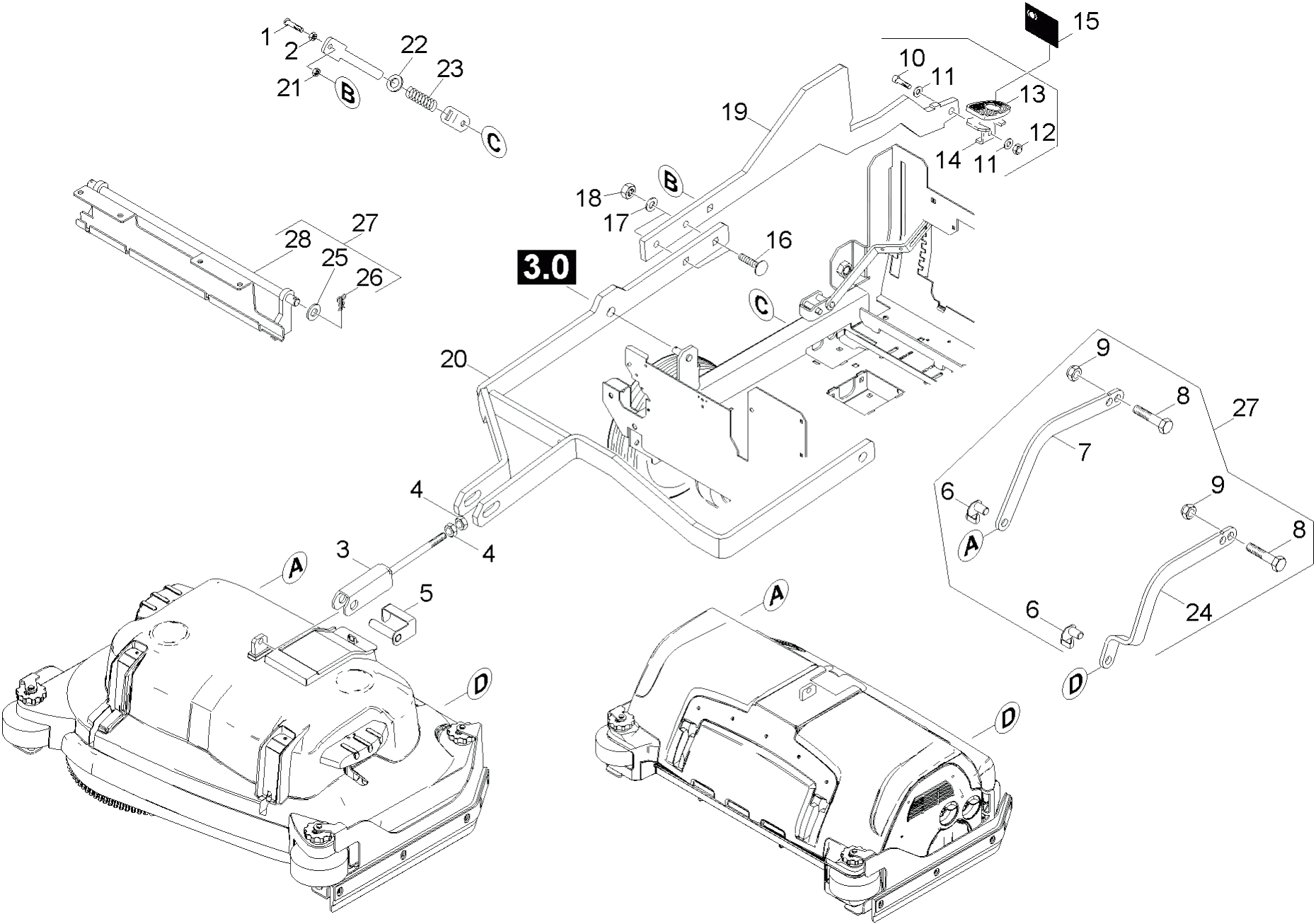

REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
1 7.303-008.0 Saucer-head screw M 8x35-ST-A0P DIN 603
1 6.454-198.0 Worm gearing i=20
2 7.311-510.0 Hexagon nut M 8-8-A2E ISO 7040
2 7.401-173.0 Ball bearing 6204-2RS-WAELZLAGST DIN 625
3 5.009-313.0 Plate adjustment
3 5.122-470.0 Flange worked
4 7.311-224.0 Hexagon nut M 8-04-A2E ISO 4035
4 7.303-067.0 Screw M8x16-ST-A3R (IN6RD)
5 4.481-244.0 Locking part
5 5.100-566.0 Shaft
6 4.481-247.0 Locking part connecting rods head BD
6 7.318-030.0 Parallel key 6x6x25 -C45R DIN 6885-1
7 5.062-291.0 Connecting rod right B 80 W
7 5.116-359.0 Sleeve
8 7.304-136.0 Hexagonal head screw M12x60 -A2-70 DIN
8 5.122-462.0 Retainer transmission die casting
9 7.311-026.0 Hexagon nut M12-1.4305 ISO 10511
9 7.343-115.0 Locking ring 47x1,75 -St-ph DIN 472
10 7.306-041.0 Cylinder head screw M8x20 -8.8-A2E ISO
10 7.312-268.0 Washer 8 -A2 ISO 7094
11 7.312-004.0 Washer 8 -200HV-A3E ISO 7090
11 7.304-538.0 Hexagonal head screw M8x16-A4-70 ISO 40
12 7.311-004.0 Hexagon nut M8 -8-A3E ISO 4032
12 5.009-666.0 Plate suspension
13 6.321-046.0 Coating pedal
13 7.304-801.0 Hexagonal head screw M10x25-A4-70 ISO 4
14 5.059-032.0 Sheet metal component NEU
14 7.311-066.0 Hexagon nut M10-A2-70 ISO 4032
15 5.385-368.0 Label set complete
15 7.312-066.0 Washer 10 -A2 ISO 7090
16 7.303-194.0 Saucer-head screw M8x25-St-A0P DIN 603
16 4.058-161.0 Lever complete BD 55+65
16 4.058-162.0 Lever complete BD 75
17 7.312-017.0 Washer 8-A2 ISO 7089
17 6.330-093.0 Extension spring
18 7.311-432.0 Hexagon nut M 8-1.4305 ISO 10511
19 5.062-274.0 Plate lifting brush-head
19 5.009-696.0 Листовой металл педаль
19 5.481-370.0 Pedal lever notch
19 5.481-431.0 Pedal lever notch
20 4.481-238.0 Lever brush-head
20 6.388-559.0 Hose clip
21 7.311-075.0 Hexagon nut M8-LH-8-A2E ISO 4032
21 6.373-689.0 Pipe clamp
22 7.312-089.0 Washer 16-200HV ISO 7089
22 5.515-326.0 Roller
23 5.332-965.0 Pressure spring
23 5.033-400.0 Cover BD
24 5.062-290.0 Connecting rod left B 80 W
24 5.009-662.0 Bracket deflector roll
25 7.312-008.0 Washer 12-200HV-A3E ISO 7090
25 6.388-408.0 """T-Hose nozzle 1/2"""" """
26 6.313-022.0 Spring clip
26 6.388-546.0 Hose clip
27 2.882-689.0 Conversion kit pivot point power brush D
27 6.641-460.0 Cable clamp
28 4.481-262.0 Holder pivot point complete BD
28 5.365-309.0 Sealing profile
28 5.365-308.0 Sealing profile
28 5.365-311.0 Sealing profile
28 5.365-319.0 Sealing profile
29 5.009-660.0 Зажим приводная штанга
29 5.062-277.0 Bracket tension rod
