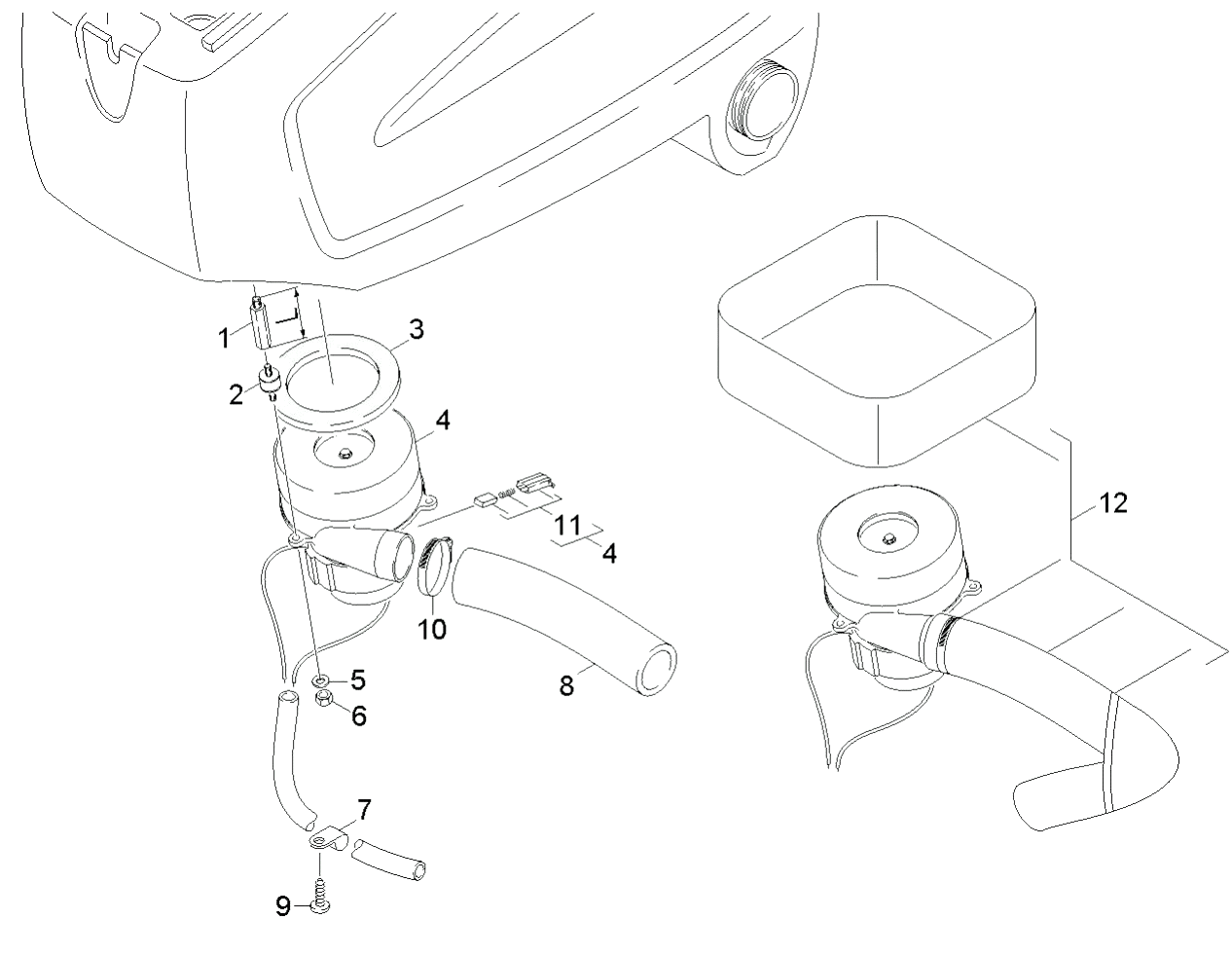

Karcher (Керхер) Всасывающая турбина (0.108-794.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	5.308-069.0	Stud bolt 74mm
1	5.308-066.0	Stud bolt
1	6.454-198.0	Worm gearing i=20
2	6.339-021.0	Rubber buffer 2xM6-D20 H15
2	7.401-173.0	Ball bearing 6204-2RS-WAELZLAGST DIN 625
3	5.363-195.0	Joint ring
3	5.122-470.0	Flange worked
4	6.490-036.0	Vacuum motor 24 V 550W
4	6.490-273.0	Vacuum motor 3-level 24V 640W
4	7.303-067.0	Screw M8x16-ST-A3R (IN6RD)
5	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
5	5.100-566.0	Shaft
6	7.311-003.0	Hexagon nut M6 -8-A2E ISO 4032
6	7.318-030.0	Parallel key 6x6x25 -C45R DIN 6885-1
7	6.373-670.0	Pipe clamp
7	5.116-359.0	Sleeve
8	6.390-215.0	Soundproof hose
8	5.122-462.0	Retainer transmission die casting
9	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
9	7.343-115.0	Locking ring 47x1,75 -St-ph DIN 472
10	6.388-713.0	Hose clip
10	7.312-268.0	Washer 8 -A2 ISO 7094
11	2.883-010.0	Carbon brush set
11	7.304-538.0	Hexagonal head screw M8x16-A4-70 ISO 40
12	2.640-920.0	Add-on kit sound insulation
12	5.009-666.0	Plate suspension
13	7.304-801.0	Hexagonal head screw M10x25-A4-70 ISO 4
14	7.311-066.0	Hexagon nut M10-A2-70 ISO 4032
15	7.312-066.0	Washer 10 -A2 ISO 7090
16	4.058-161.0	Lever complete BD 55+65
16	4.058-162.0	Lever complete BD 75
17	6.330-093.0	Extension spring
19	5.481-431.0	Pedal lever notch
19	5.481-370.0	Pedal lever notch
20	6.388-559.0	Hose clip
21	6.373-689.0	Pipe clamp
22	5.515-326.0	Roller
23	5.033-400.0	Cover BD
24	5.009-662.0	Bracket deflector roll
25	6.388-408.0	"""T-Hose nozzle 1/2"""" """
26	6.388-546.0	Hose clip
27	6.641-460.0	Cable clamp
28	5.365-309.0	Sealing profile
28	5.365-319.0	Sealing profile
28	5.365-311.0	Sealing profile
28	5.365-308.0	Sealing profile
29	5.062-277.0	Bracket tension rod
29	5.009-660.0	Зажим приводная штанга
30	7.303-113.0	Screw 6x25 -10.9-R2R (In6Rd)
31	5.044-867.0	Retainer strip splash guard
32	7.303-037.0	Screw M5x10 -St-P2R (In6Rd)
33	4.071-228.0	Set splash guard onesided
34	5.009-668.0	Bracket left scraper lip
35	5.009-667.0	Bracket right scraper lip
36	5.116-339.0	Threaded bolt
37	5.033-666.0	Hand wheel
38	6.330-407.0	Spring clip
39	4.623-920.0	Motor complete nur fuer Ersatz
40	6.610-216.0	Carbon brush set
40	6.610-239.0	Carbon brush set ATAS
41	6.646-329.0	Plug red 75A
42	6.646-330.0	Plug blue 75A
43	5.064-267.0	Cover BD 550
43	5.064-268.0	Cover BD 650
43	5.064-308.0	Cover D 90
43	5.064-269.0	Cover BD 750
44	4.905-011.0	Disc brushes complete white D65
44	4.905-010.0	Disc brush complete red BD 65
44	4.905-006.0	Disc brushes complete black BD 45/40
44	4.905-015.0	Disc brushes complete white BD55
44	4.905-018.0	Disc brushes complete red BD75
44	4.905-014.0	Disc brush complete red BD55
44	4.905-004.0	Disc brushes complete nature BD 45/40
44	4.905-003.0	Disc brush complete red 45
44	4.905-013.0	Disc brushes complete black BD65
44	4.905-005.0	Disc brushes complete white BD 45/40
44	4.905-017.0	Disc brushes complete black BD55
44	4.905-020.0	Disc brushes complete nature BD75
44	4.905-012.0	Disc brushes complete nature BD65
44	4.905-021.0	Disc brushes complete black BD75
44	4.905-016.0	Disc brushes complete nature BD55
44	4.905-019.0	Disc brushes complete white BD75
45	6.388-248.0	Hose DN12,5
46	6.390-892.0	Spiral hose NW12
47	4.481-246.0	Holder pivot point head BD
47	4.481-257.0	Holder pivot point head D 55 / D 65
48	7.303-112.0	Screw 6x20 -10.9-R2R (In6Rd)
49	5.107-290.0	Bar brush-head
50	7.312-008.0	Washer 12-200HV-A3E ISO 7090
51	6.313-022.0	Spring clip
52	7.343-047.0	Lock washer 10-FST-A2E DIN 6799
53	7.343-302.0	Lock washer 8 -St-ph DIN 6799
54	4.762-493.0	Disk pad D 90
54	4.762-447.0	Disk pad BD 75
54	4.762-445.0	Disk pad BD55
54	4.762-446.0	Disk pad BD 65
55	6.371-248.0	Diamond pad white set 5x ?306
55	6.371-234.0	Diamond pad green set 5x ?306
55	6.371-259.0	Diamond pad yellow set 5x ?457
55	6.371-253.0	Diamond pad yellow set 5x ?385
55	6.371-249.0	Diamond pad yellow set 5x ?306
55	6.371-247.0	Diamond pad yellow set 5x ?280
55	6.371-194.0	Алмазный пад фиолетовый 460
55	6.371-186.0	Алмазный пад фиолетовый 355
55	6.371-182.0	Алмазный пад фиолетовый 280
55	6.371-193.0	Алмазный пад коричневый 460
55	6.371-258.0	Diamond pad white set 5x ?457
55	6.371-251.0	Diamond pad yellow set 5x ?356
55	6.371-233.0	Diamond pad green set 5x ?280
55	6.371-239.0	Diamond pad green set 5x ?457
55	6.371-183.0	Алмазный пад коричневый 310
55	6.371-250.0	Diamond pad white set 5x ?356
55	6.371-181.0	Алмазный пад коричневый 280
55	6.371-185.0	Алмазный пад коричневый 355
55	6.371-188.0	Алмазный пад фиолетовый 380
55	6.371-235.0	Diamond pad green set 5x ?356
55	6.371-252.0	Diamond pad white set 5x ?385
55	6.371-236.0	Diamond pad green set 5x ?385
55	6.371-184.0	Алмазный пад фиолетовый 310
55	6.371-246.0	Diamond pad white set 5x ?280
55	6.371-187.0	Алмазный пад коричневый 380
56	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
57	4.481-262.0	Holder pivot point complete BD
