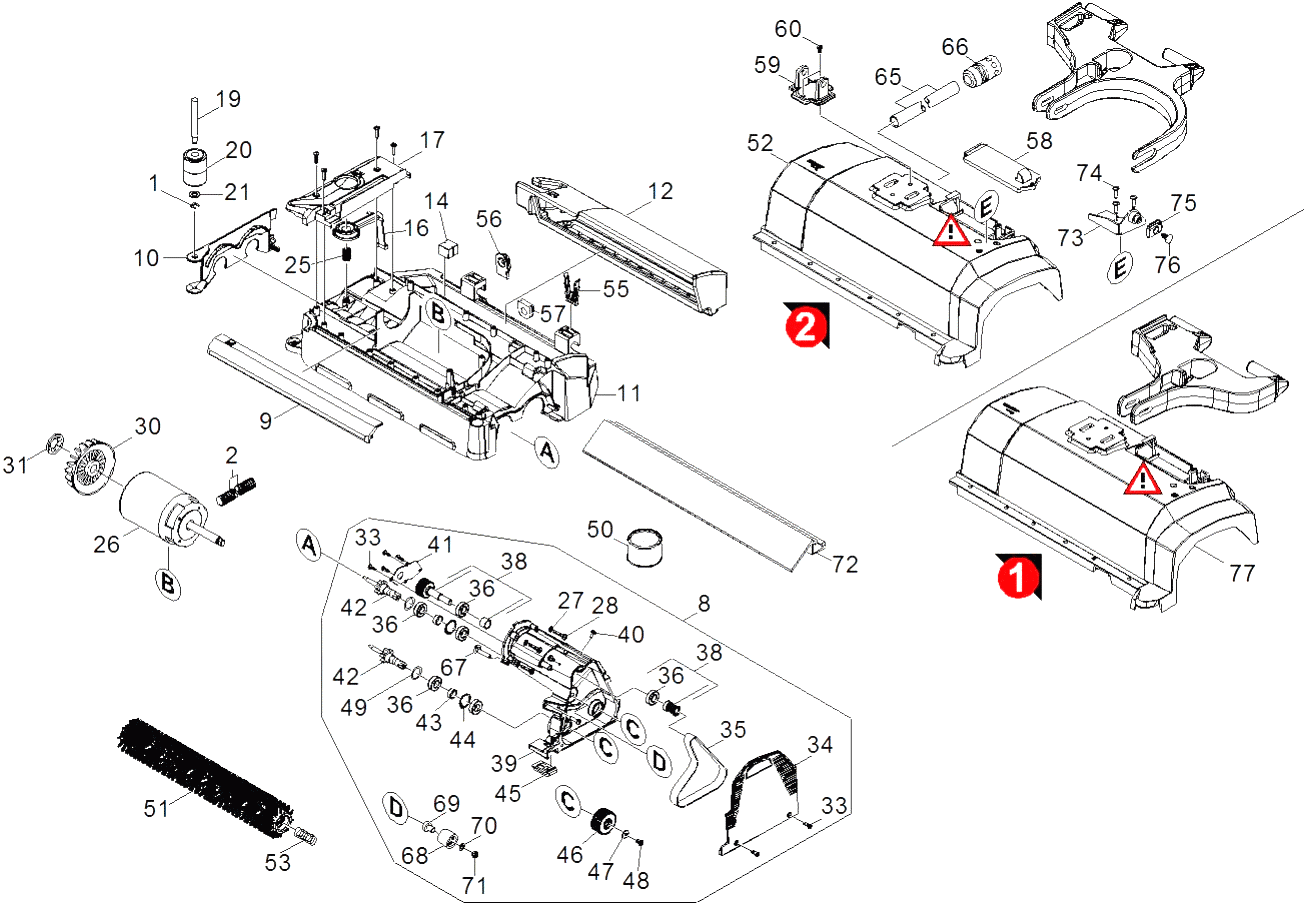

Karcher (Керхер) Верхняя часть насадки равномерный ход BR (0.165-963.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.343-300.0	Lock washer 7-A2 DIN 6799
2	6.435-873.0	Piece of tube
8	4.035-502.0	Gear complete synchronous run
9	5.035-402.0	Strip water distributor R 45
10	5.035-393.0	Brushes retainer
11	5.035-387.0	Housing bottom part R 45
12	5.035-396.0	Sweep tank R 45
14	5.035-447.0	Plug
16	5.035-458.0	Brushes locking part
17	5.035-405.0	Housing top part locking part
18	7.303-113.0	Screw 6x25 -10.9-R2R (In6Rd)
19	5.035-394.0	Bolt deflector roll
20	5.035-395.0	Deflector roll
21	7.312-066.0	Washer 10 -A2 ISO 7090
25	6.330-450.0	Pressure spring
26	4.035-417.0	Motor replacement
27	7.312-026.0	Washer 6 -A2 ISO 7090
28	7.306-196.0	Screw M 6x30-A2-70 (IN6RD)
30	6.612-764.0	Blower wheel
31	6.343-149.0	Quick-fastener
33	7.303-039.0	Screw M5x16 -St-A2R (In6Rd)
34	5.035-385.0	Cover gear
35	4.035-425.0	Toothed belt replacement
36	7.401-115.0	Ball bearing 6002-2RS -WAELZLAGST DIN 62
38	4.035-423.0	Shaft replacement synchronous run
39	5.035-384.0	Carrier motor worked R
40	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
