Karcher (Керхер) Корпус (0.104-555.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

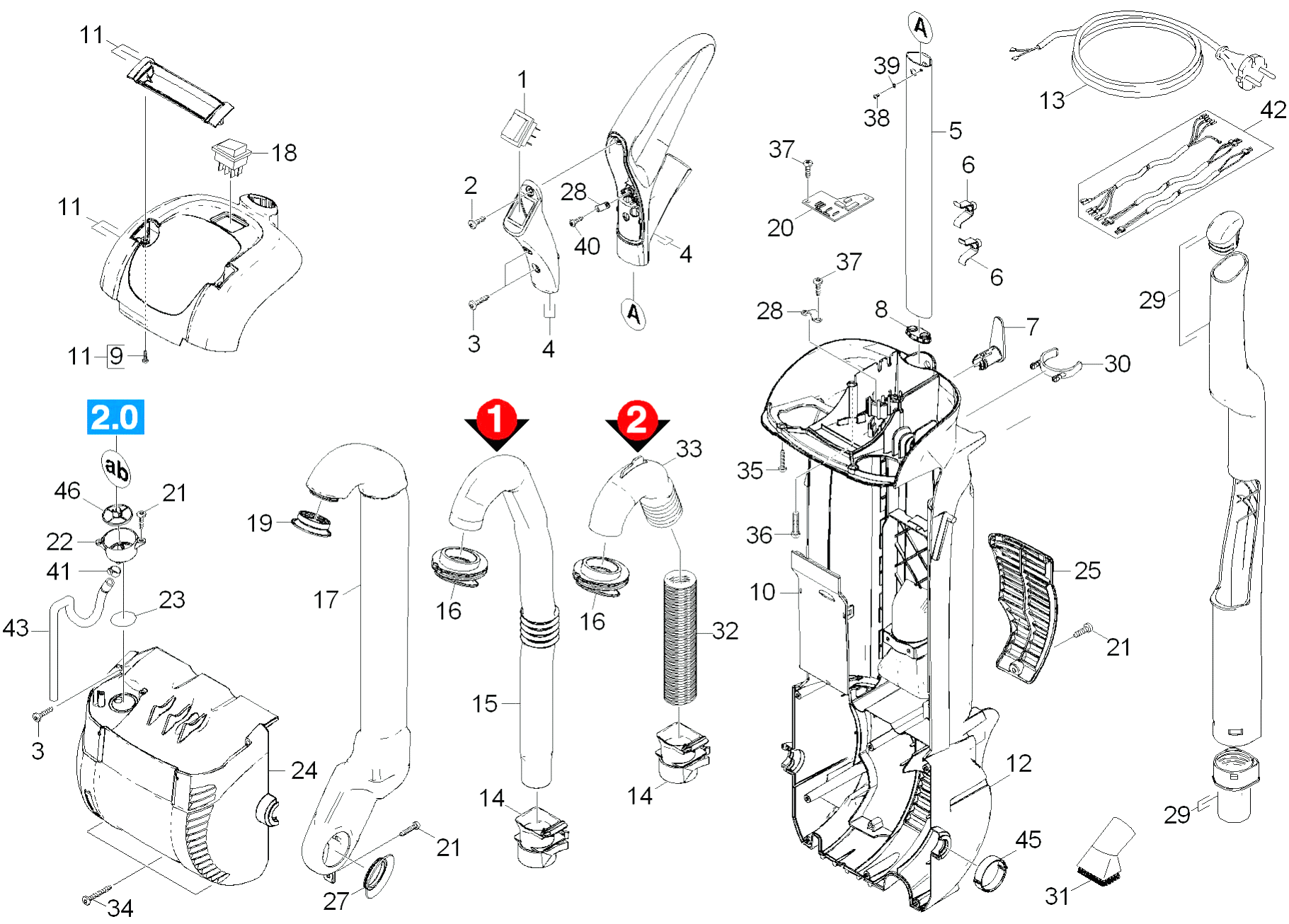

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.632-493.0	Switch two-pole water
2	7.303-212.0	Screw 5x20 -A2-70 (In6Rd)
3	7.303-118.0	Screw 5x40 -A2-70 (IN6Rd)
4	4.033-170.0	Handhold complete replacement
5	5.033-228.0	Handle Alu
6	5.033-195.0	Spring handle
7	5.044-661.0	Catch for cable
8	5.033-196.0	Plug handle
9	7.303-107.0	Screw 5x16 -10.9-P2R (K-In6Rd)
10	5.033-175.0	Covering cap cable
11	4.033-162.0	Covering cap housing replacement
12	5.033-172.0	Housing
13	6.649-770.0	Power cable 12m *GB
13	6.649-514.0	Power cable 10m *EU
13	6.649-600.0	Power cable 10m *USA
13	6.649-658.0	Power cable 10m *JP 50Hz
14	5.407-115.0	Втулка всасывающей трубки
15	5.033-179.0	Suction pipe tank
16	5.363-688.0	Sealing lip SWT-SL-SB
17	5.033-178.0	Suction pipe turbine
18	6.630-385.0	Switch
19	5.363-687.0	Sealing lip SWT-SL-T
20	6.682-974.0	Distribution circuit board BR 30/4 C
21	7.303-104.0	Screw 5x16 -A2-70 (IN6RD)
22	5.033-190.0	Funnel valve
23	6.362-604.0	O-Ring seal 27,0 X 3,0
24	5.033-173.0	Motor housing
25	5.033-174.0	Flap ventilation
27	5.363-689.0	Sealing lip vac motor SL
28	6.903-241.0	Clamp clip
29	4.033-227.0	Hand tube replacement
30	5.041-111.0	Clip accessories
31	6.000-011.0	Suction brush DN35
32	6.391-725.0	Suction hose DN32 - 370mm
33	5.033-237.0	Suction pipe sleeve tank
34	7.303-268.0	Screw 5x30 -A2-70 (In6Rd)
35	7.303-086.0	Screw 5x30 -10.9-R2R (K-In6Rd)
36	6.303-294.0	Screw 5x65-10.9-A2K (Kombi-IN6RD)
37	7.303-095.0	Screw 4x 12-ST-10.9-R2R (IN6RD)
38	7.303-030.0	Screw M4x8 -St-P2R (In6Rd)
39	7.312-230.0	Serrated lock washer A4,3-FSt-A3E DIN67
40	7.303-102.0	Screw 3,5x12 -A2-70-bk (In6Rd)
41	6.388-701.0	Hose clip with insert 13,3
42	4.822-540.0	Cable harness BR 30/4 C
43	5.033-952.0	Form hose fresh water BR 30/4
45	4.250-079.0	BEARING SHELL kpl.
46	5.033-905.0	Strainer fresh water
