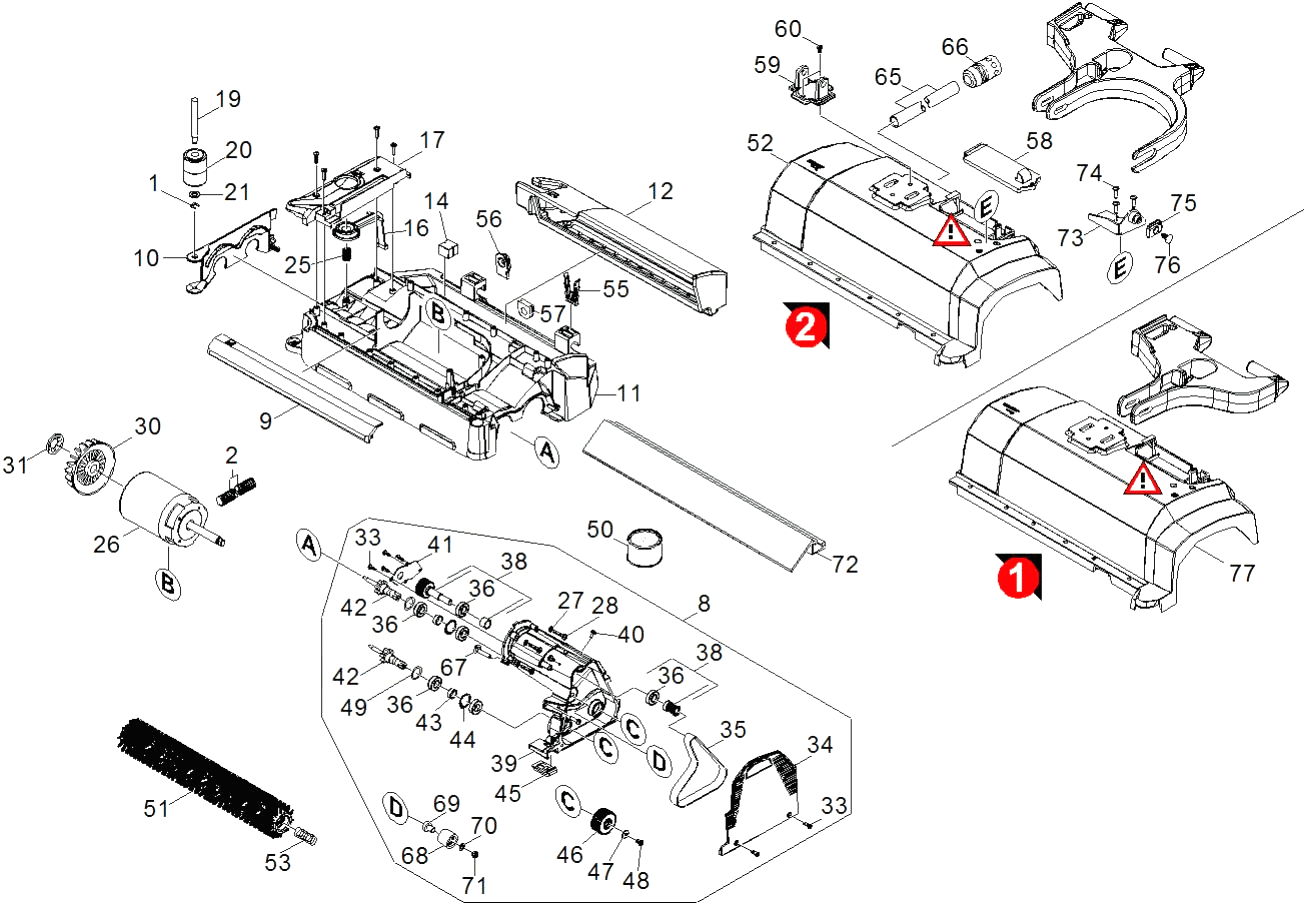

Karcher (Керхер) Верхняя часть насадки равномерный ход BR (0.165-955.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.343-300.0	Lock washer 7-A2 DIN 6799
1	5.044-866.0	Retainer plate transmission
1	2.882-726.0	Conversion kit retainer plate transmissi
2	6.435-873.0	Piece of tube
2	7.306-031.0	Screw M 6x16-A2-70 DIN 7984
3	7.312-026.0	Washer 6 -A2 ISO 7090
4	7.313-003.0	Spring washer B 6-FSt-A3E DIN 127
5	2.763-032.0	Set holder-up replacement
6	5.056-010.0	Rocker BR-VS
7	5.100-553.0	Driveshaft BR 65 / 90
7	5.100-611.0	Driveshaft BR
8	4.035-502.0	Gear complete synchronous run
8	7.318-002.0	Parallel key 5x5x16 -C45R DIN 6885-1
9	5.035-403.0	Strip water distributor R 55
9	7.343-015.0	Locking ring 15x1-FST-RF DIN 471
10	5.035-393.0	Brushes retainer
10	5.116-340.0	Bolt holder-up
11	5.035-389.0	Housing bottom part R 55
11	7.305-627.0	Countersunk screw M8x25-A2-70 ISO 10642
12	5.035-399.0	Sweep tank R 55
12	5.116-354.0	Bush transmission BR
12	5.116-413.0	Sleeve
13	5.625-483.0	Belt pulley 57mm
13	5.625-494.0	Belt pulley 54mm
14	5.035-447.0	Plug
14	6.343-149.0	Quick-fastener
15	6.348-456.0	Ribbed v-belt
15	6.348-442.0	Ribbed v-belt
16	5.035-458.0	Brushes locking part
16	6.363-158.0	Joint ring Nilosring
17	5.035-405.0	Housing top part locking part
17	5.033-665.0	Locking part
18	7.303-113.0	Screw 6x25 -10.9-R2R (In6Rd)
18	7.401-115.0	Ball bearing 6002-2RS -WAELZLAGST DIN 62
19	5.035-394.0	Bolt deflector roll
20	5.035-395.0	Deflector roll
21	7.312-066.0	Washer 10 -A2 ISO 7090
25	6.330-450.0	Pressure spring
26	4.035-417.0	Motor replacement
27	7.343-036.0	Locking ring 14x1-FST-RF DIN 471
27	7.312-026.0	Washer 6 -A2 ISO 7090
28	5.035-683.0	Bolt contact pressure adjustment
28	7.306-196.0	Screw M 6x30-A2-70 (IN6RD)
29	5.035-711.0	Bearing bush
30	4.035-438.0	Base plate transmission complete
30	6.612-764.0	Blower wheel
31	6.330-093.0	Extension spring
31	6.343-149.0	Quick-fastener
32	7.306-090.0	Screw M6x16 -8.8-R3R (In6Rd)
33	7.343-167.0	Locking ring 35x1,5-FST-BR DIN 472
33	7.303-039.0	Screw M5x16 -St-A2R (In6Rd)
34	7.401-128.0	Ball bearing 6202-2RS -W?lzl.St DIN 625
34	5.035-385.0	Cover gear
35	5.435-001.0	Roller
35	4.035-425.0	Toothed belt replacement
36	7.343-015.0	Locking ring 15x1-FST-RF DIN 471
36	7.401-115.0	Ball bearing 6002-2RS -WAELZLAGST DIN 62
37	5.044-897.0	Holder belt drive
38	7.343-007.0	Locking ring 20x1,2-FST-RF DIN 471
38	4.035-423.0	Shaft replacement synchronous run
39	5.625-403.0	Toothed lock washer 125Z
39	5.035-384.0	Carrier motor worked R
40	6.388-248.0	Hose DN12,5
40	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
41	6.388-482.0	Hose coupling
41	5.035-684.0	Covering cap gear
42	6.348-383.0	Toothed belt HTD-447-3M-15 CXPIII
42	5.101-104.0	Приводной вал
43	7.318-004.0	Parallel key 6x6x12 -C45R DIN 6885-1
43	5.110-686.0	Spacer sleeve
44	5.100-379.0	Shaft belt drive 2
44	7.343-231.0	Locking ring 32x1,2 -St-ph DIN 472
45	5.112-619.0	Bush for belt drive
45	5.056-010.0	Rocker BR-VS
46	5.112-616.0	Bush
46	5.625-507.0	Belt pulley 56Z
47	7.401-173.0	Ball bearing 6204-2RS-WAELZLAGST DIN 625
47	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
48	6.641-463.0	Cable tape
48	6.304-180.0	Screw M6X12-A2/70-ISO7045 (IN6RD)
49	7.318-031.0	Parallel key 6x6x28 -C45R DIN 6885-1
49	6.363-469.0	Joint ring stainless steel Nilos 6002
50	5.100-378.0	Shaft belt drive 1 BD 530
50	6.288-095.0	Viscous oil
51	6.348-384.0	Toothed belt HTD-475-5M-40 CXPIII
51	4.762-410.0	Roller brush complete orange BR 55/40
51	4.762-409.0	Roller brush complete white BR 55/40
51	4.762-412.0	Roller brush complete black BR 55/40
51	4.762-411.0	Roller brush complete green BR 55/40
51	4.762-393.0	Roller brush complete red BR 55/40
52	5.625-402.0	Toothed lock washer 63Z
52	5.035-390.0	Housing top part R 55
53	7.343-018.0	Locking ring 18x1,2-Rf-St DIN 471
53	5.332-114.0	Helical spring
55	4.035-466.0	Motor nur fuer Ersatz
55	5.035-424.0	Snap-fit
56	6.612-764.0	Blower wheel
56	5.035-448.0	Wire protecting sleeve
57	5.122-462.0	Retainer transmission die casting
57	6.648-064.0	Cable bushing
58	7.312-268.0	Washer 8 -A2 ISO 7094
58	5.035-386.0	Cover electric box
59	6.304-176.0	Hexagonal head screw M8x16-A4-70 ISO 401
59	5.035-604.0	Suspension seal brush-head BD
60	7.303-112.0	Screw 6x20 -10.9-R2R (In6Rd)
60	7.303-037.0	Screw M5x10 -St-P2R (In6Rd)
61	5.033-445.0	Retainer brush SWS
62	4.905-029.0	Disc brush complete black D51
62	4.905-027.0	Disc brush complete nature D51
62	4.905-028.0	Disc brush complete white D51
63	4.762-534.0	Pad disk complete D51
64	6.388-628.0	"""Elbow connector 1/2"""" """
65	6.390-892.0	Spiral hose NW12
65	7.303-096.0	Screw 4x22 -ST-10.9-R2R (IN6RD)
66	6.388-482.0	Hose coupling
66	6.906-838.0	Centerlock
67	7.303-186.0	Saucer-head screw M8x40 -St-A0P DIN 603
68	4.250-083.0	Tension roller D = 33,5
69	5.110-700.0	Sleeve
70	7.312-017.0	Washer 8-A2 ISO 7089
71	5.625-400.0	Toothed lock washer 28Z
71	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
72	5.035-401.0	Rubberlip synchronous run R 55
