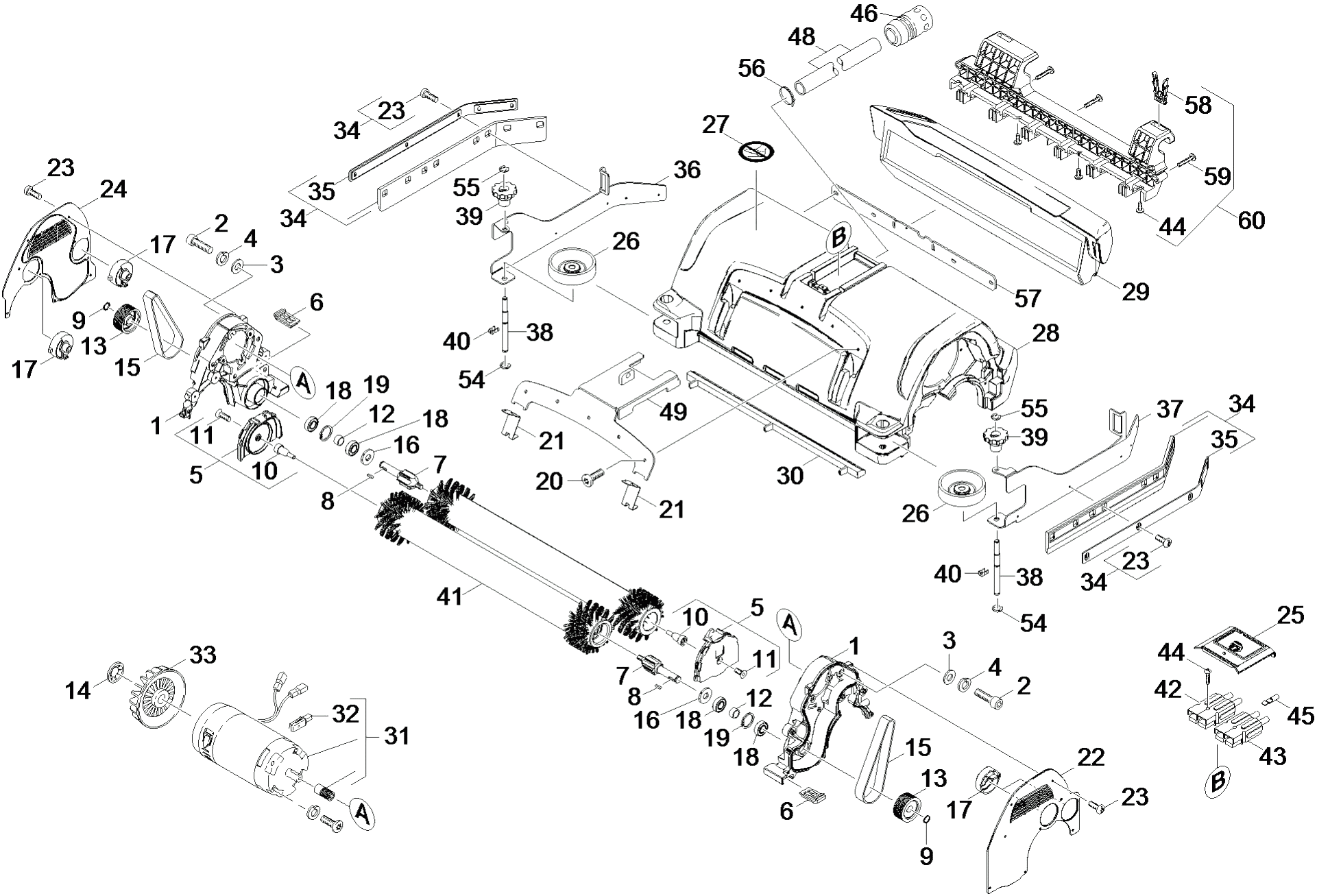

Karcher (Керхер) Верхняя часть насадки R 90 S (0.166-781.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.580-738.0 |
Conversion kit ball valve electrically |
|
| 1 |
5.044-866.0 |
Retainer plate transmission |
|
| 1 |
6.454-198.0 |
Worm gearing i=20 |
|
| 1 |
6.273-205.0 |
Rubber lip set anti stripe oil resistant |
|
| 1 |
6.273-208.0 |
Rubber lip set oil resistant |
|
| 1 |
6.273-214.0 |
Rubber lip set standard |
|
| 1 |
2.882-726.0 |
Conversion kit retainer plate transmissi |
|
| 1 |
4.071-209.0 |
Fresh water tank only for replacement B |
|
| 1 |
4.071-171.0 |
Tank fresh water replacement |
|
| 1 |
6.613-300.0 |
Hoisting motor 24V |
|
| 1 |
5.063-933.0 |
Cap of a tank |
|
| 1 |
2.860-166.0 |
Toolkit steering wheel blower ICC1/ICC2 |
|
| 1 |
7.303-107.0 |
Screw 5x16 -10.9-P2R (K-In6Rd) |
|
| 2 |
7.306-031.0 |
Screw M 6x16-A2-70 DIN 7984 |
|
| 2 |
7.401-173.0 |
Ball bearing 6204-2RS-WAELZLAGST DIN 625 |
|
| 2 |
4.392-023.0 |
Cover complete |
|
| 2 |
5.363-344.0 |
Joint ring |
|
| 2 |
6.641-474.0 |
Cable tape 8-210 |
|
| 3 |
7.312-026.0 |
Washer 6 -A2 ISO 7090 |
|
| 3 |
5.122-470.0 |
Flange worked |
|
| 3 |
2.885-326.0 |
End piece left / right spare parts set |
|
| 3 |
5.033-106.0 |
Plate bottom fresh water tank ohne DOSE |
|
| 3 |
6.388-248.0 |
Hose DN12,5 |
|
| 4 |
7.313-003.0 |
Spring washer B 6-FSt-A3E DIN 127 |
|
| 4 |
7.303-067.0 |
Screw M8x16-ST-A3R (IN6RD) |
|
| 4 |
5.385-078.0 |
Label tank kippen |
|
| 4 |
7.304-407.0 |
Hexagonal head screw M 8x45-8.8-A2E ISO |
|
| 4 |
4.071-202.0 |
Waste water tank complete only for repla |
|
| 4 |
4.071-160.0 |
Tank waste water complete |
|
| 4 |
6.388-628.0 |
"""Elbow connector 1/2"""" """ |
|
| 5 |
2.763-032.0 |
Set holder-up replacement |
|
| 5 |
5.100-566.0 |
Shaft |
|
| 5 |
5.033-601.0 |
Suction nipple |
|
| 5 |
6.330-091.0 |
Extension spring |
|
| 5 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 5 |
7.306-022.0 |
Cylinder head screw M 6x20-8.8-A2E ISO47 |
|
| 5 |
7.303-095.0 |
Screw 4x 12-ST-10.9-R2R (IN6RD) |
|
| 6 |
5.056-010.0 |
Rocker BR-VS |
|
| 6 |
7.318-030.0 |
Parallel key 6x6x25 -C45R DIN 6885-1 |
|
| 6 |
7.306-142.0 |
Cylinder head screw M 8x25-A4-70 ISO 47 |
|
| 6 |
7.343-005.0 |
Locking ring 16x1-FST-PHR DIN 471 |
|
| 6 |
5.385-077.0 |
Label attention vacuum motor |
|
| 6 |
5.032-761.0 |
Elbow connector ball valve |
|
| 7 |
5.100-611.0 |
Driveshaft BR |
|
| 7 |
5.116-359.0 |
Sleeve |
|
| 7 |
7.312-017.0 |
Washer 8-A2 ISO 7089 |
|
| 7 |
5.100-553.0 |
Driveshaft BR 65 / 90 |
|
| 7 |
6.321-046.0 |
Coating pedal |
|
| 7 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 7 |
6.343-122.0 |
Lock washer |
|
| 7 |
6.388-752.0 |
Hose stem DN13 |
|
| 8 |
7.318-002.0 |
Parallel key 5x5x16 -C45R DIN 6885-1 |
|
| 8 |
5.122-462.0 |
Retainer transmission die casting |
|
| 8 |
5.007-335.0 |
Листовой металл педаль |
|
| 8 |
5.011-883.0 |
Plate pedal |
|
| 8 |
7.312-022.0 |
Serrated lock washer A8,4-1.4310 DIN679 |
|
| 8 |
5.105-354.0 |
Axle waste water tank |
|
| 8 |
4.464-020.0 |
Ball valve electrically complete |
|
| 9 |
7.343-015.0 |
Locking ring 15x1-FST-RF DIN 471 |
|
| 9 |
7.343-115.0 |
Locking ring 47x1,75 -St-ph DIN 472 |
|
| 9 |
5.100-559.0 |
Suction bar support plate |
|
| 9 |
7.312-289.0 |
Washer 8 -A2 ISO 7093-1 |
|
| 9 |
5.059-528.0 |
Sheet metal component |
|
| 9 |
5.001-752.0 |
Plate |
|
| 9 |
5.062-139.0 |
Plate adapter |
|
| 10 |
5.116-340.0 |
Bolt holder-up |
|
| 10 |
7.312-268.0 |
Washer 8 -A2 ISO 7094 |
|
| 10 |
4.481-301.0 |
Lever pedal complete |
|
| 10 |
7.303-139.0 |
Saucer-head screw M6x20 -A2 DIN 603 |
|
| 10 |
7.306-191.0 |
Screw M6x10 -A2-70 (In6Rd) |
|
| 10 |
7.303-104.0 |
Screw 5x16 -A2-70 (IN6RD) |
|
| 10 |
7.318-070.0 |
Parallel key 5x5x20-C45R DIN 6885-1 |
|
| 10 |
5.036-703.0 |
Brush housing D 100 |
|
| 11 |
7.305-627.0 |
Countersunk screw M8x25-A2-70 ISO 10642 |
|
| 11 |
7.304-538.0 |
Hexagonal head screw M8x16-A4-70 ISO 40 |
|
| 11 |
5.007-217.0 |
Plate |
|
| 11 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 11 |
7.312-026.0 |
Washer 6 -A2 ISO 7090 |
|
| 11 |
6.432-031.0 |
Цепь 22 / 11 MM |
|
| 11 |
7.305-637.0 |
Countersunk screw M8x16-A2-70 ISO 10642 |
|
| 11 |
7.312-020.0 |
Serrated lock washer A6,4-1.4310 DIN679 |
|
| 12 |
5.116-413.0 |
Sleeve |
|
| 12 |
5.009-666.0 |
Plate suspension |
|
| 12 |
5.112-810.0 |
Sleeve VA |
|
| 12 |
5.116-354.0 |
Bush transmission BR |
|
| 12 |
6.435-844.0 |
Wheel oil resistant D300 |
|
| 12 |
6.435-738.0 |
Wheel oil resistant D300 |
|
| 12 |
6.310-180.0 |
Wing nut M6 |
|
| 12 |
5.001-987.0 |
Plate bracket fuer Kette |
|
| 13 |
5.625-494.0 |
Belt pulley 54mm |
|
| 13 |
7.304-801.0 |
Hexagonal head screw M10x25-A4-70 ISO 4 |
|
| 13 |
5.305-296.0 |
Wing screw M8x40 VA |
|
| 13 |
5.625-483.0 |
Belt pulley 57mm |
|
| 13 |
7.343-008.0 |
Locking ring 25x1,2-St-vz DIN 471 |
|
| 13 |
6.343-132.0 |
Lock washer 8 |
|
| 13 |
5.132-124.0 |
Plug |
|
| 14 |
6.343-149.0 |
Quick-fastener |
|
| 14 |
7.311-066.0 |
Hexagon nut M10-A2-70 ISO 4032 |
|
| 14 |
7.312-017.0 |
Washer 8-A2 ISO 7089 |
|
| 14 |
5.107-202.0 |
Bar |
|
| 14 |
5.110-177.0 |
Sleeve |
|
| 15 |
6.348-456.0 |
Ribbed v-belt |
|
| 15 |
7.312-066.0 |
Washer 10 -A2 ISO 7090 |
|
| 15 |
2.885-294.0 |
End piece left / right spare parts set |
|
| 15 |
6.348-442.0 |
Ribbed v-belt |
|
| 15 |
5.110-511.0 |
Sleeve |
|
| 15 |
5.048-234.0 |
Rocker suction bar |
|
| 15 |
7.303-104.0 |
Screw 5x16 -A2-70 (IN6RD) |
|
| 16 |
6.363-158.0 |
Joint ring Nilosring |
|
| 16 |
4.058-161.0 |
Lever complete BD 55+65 |
|
| 16 |
2.639-561.0 |
Add-on kit support wheels suction bar |
|
| 16 |
7.312-261.0 |
Washer 8 -100HV-A3E ISO 7094 |
|
| 16 |
5.004-931.0 |
Strap cap of a tank |
|
| 16 |
4.058-162.0 |
Lever complete BD 75 |
|
| 17 |
5.033-665.0 |
Locking part |
|
| 17 |
6.330-093.0 |
Extension spring |
|
| 17 |
7.311-422.0 |
Hexagon nut M 6-1.4305 ISO 10511 |
|
| 17 |
7.304-504.0 |
Hexagonal head screw M8x50-A2-70 ISO 40 |
|
| 17 |
5.033-206.0 |
Блокиратор |
|
| 18 |
7.401-128.0 |
Ball bearing 6202-2RS -W?lzl.St DIN 625 |
|
| 18 |
7.312-026.0 |
Washer 6 -A2 ISO 7090 |
|
| 18 |
7.401-115.0 |
Ball bearing 6002-2RS -WAELZLAGST DIN 62 |
|
| 18 |
7.304-399.0 |
Hexagonal head screw M 8x25-8.8-A2E ISO |
|
| 18 |
5.390-521.0 |
Label |
|
| 19 |
5.481-431.0 |
Pedal lever notch |
|
| 19 |
7.343-017.0 |
Locking ring 35x1,5-FST-PHR DIN 472 |
|
| 19 |
5.044-304.0 |
Holder roller |
|
| 19 |
7.343-231.0 |
Locking ring 32x1,2 -St-ph DIN 472 |
|
| 19 |
7.304-023.0 |
Hexagonal head screw M8x130-A4-70 ISO 4 |
|
| 20 |
6.388-559.0 |
Hose clip |
|
| 20 |
7.303-047.0 |
Screw M6x16 -St-R3R (In6Rd) |
|
| 20 |
7.312-052.0 |
Washer 5 -A2 ISO 7089 |
|
| 20 |
5.008-999.0 |
Plate fixing fresh water tank |
|
| 20 |
5.036-668.0 |
Belt pulley 29 mm |
|
| 20 |
5.116-355.0 |
Bolt deflector roll BR W |
|
| 20 |
5.036-678.0 |
Cover plate |
|
| 21 |
6.373-689.0 |
Pipe clamp |
|
| 21 |
5.033-664.0 |
Locking part tension rod |
|
| 21 |
7.303-037.0 |
Screw M5x10 -St-P2R (In6Rd) |
|
| 21 |
6.600-300.0 |
Сенсор двигателя |
|
| 21 |
7.306-045.0 |
Screw M2x20 -8.8-A2R (In6Rd) |
|
| 21 |
5.033-394.0 |
Замыкающая часть BR/BD 55/65/75 |
|
| 22 |
5.515-326.0 |
Roller |
|
| 22 |
5.033-241.0 |
Covering cap left |
|
| 22 |
6.435-401.0 |
Wheel D54 |
|
| 22 |
7.303-039.0 |
Screw M5x16 -St-A2R (In6Rd) |
|
| 22 |
6.631-854.0 |
Micro switch |
|
| 23 |
5.033-400.0 |
Cover BD |
|
| 23 |
7.303-037.0 |
Screw M5x10 -St-P2R (In6Rd) |
|
| 23 |
5.105-245.0 |
Axle |
|
| 23 |
6.273-196.0 |
Seal string cellular rubber |
|
| 23 |
7.312-043.0 |
Washer 3-A2 ISO 7089 |
|
| 24 |
5.009-662.0 |
Bracket deflector roll |
|
| 24 |
5.033-242.0 |
Covering cap right |
|
| 24 |
7.304-550.0 |
Hexagonal head screw M 6x45-A4-70 ISO 4 |
|
| 24 |
7.343-215.0 |
Shim ring 25x36x1,0-ST2K50 DIN 988 |
|
| 24 |
7.311-074.0 |
Hexagon nut M 2-8-A2E ISO 4032 |
|
| 25 |
6.388-408.0 |
"""T-Hose nozzle 1/2"""" """ |
|
| 25 |
5.033-403.0 |
Cover BR |
|
| 25 |
6.321-239.0 |
Star grip VA ?50x43 |
|
| 25 |
6.651-364.0 |
Junction box |
|
| 26 |
6.388-546.0 |
Hose clip |
|
| 26 |
5.515-267.0 |
Deflector roll suction bar |
|
| 26 |
5.094-231.0 |
Sleeve suction bar in VA |
|
| 26 |
6.641-463.0 |
Cable tape |
|
| 26 |
5.515-096.0 |
Roller |
|
| 27 |
6.641-460.0 |
Cable clamp |
|
| 27 |
5.383-097.0 |
Label |
|
| 27 |
5.515-267.0 |
Deflector roll suction bar |
|
| 27 |
6.600-265.0 |
Grounding tongue |
|
| 28 |
5.061-983.0 |
Brush housing R 90 |
|
| 28 |
5.061-577.0 |
Brush housing BR 75 |
|
| 28 |
6.642-111.0 |
Plug 42mm |
|
| 29 |
5.062-277.0 |
Bracket tension rod |
|
| 29 |
5.075-042.0 |
Tank refuse BR 90 |
|
| 29 |
5.075-041.0 |
Tank refuse BR 75 |
|
| 29 |
4.040-806.0 |
Ram protection B 140 |
|
| 30 |
7.303-113.0 |
Screw 6x25 -10.9-R2R (In6Rd) |
|
| 30 |
5.190-291.0 |
Strip water distributor R 90 |
|
| 30 |
7.303-112.0 |
Screw 6x20 -10.9-R2R (In6Rd) |
|
| 30 |
5.190-289.0 |
Strip water distributor BR 75 |
|
| 30 |
5.010-340.0 |
Держатель дефлекторный ролик справа |
|
| 30 |
5.190-261.0 |
Strip water distributor |
|
| 30 |
5.036-681.0 |
Lever |
|
| 31 |
5.044-867.0 |
Retainer strip splash guard |
|
| 31 |
4.623-927.0 |
Motor complete only for replacement |
|
| 31 |
4.623-993.0 |
Motor complete |
|
| 31 |
4.623-920.0 |
Motor complete nur fuer Ersatz |
|
| 31 |
5.010-341.0 |
Holder deflector roll left |
|
| 32 |
7.303-037.0 |
Screw M5x10 -St-P2R (In6Rd) |
|
| 32 |
6.610-239.0 |
Carbon brush set ATAS |
|
| 32 |
7.311-427.0 |
Hexagon nut M8 -04-A2E ISO 10511 |
|
| 32 |
6.610-216.0 |
Carbon brush set |
|
| 33 |
4.071-228.0 |
Set splash guard onesided |
|
| 33 |
6.613-025.0 |
Blower wheel |
|
| 33 |
7.306-222.0 |
Cylinder head screw M8x55 -A4-70 ISO 47 |
|
| 34 |
5.009-668.0 |
Bracket left scraper lip |
|
| 34 |
4.071-228.0 |
Set splash guard onesided |
|
| 34 |
7.311-026.0 |
Hexagon nut M12-1.4305 ISO 10511 |
|
| 34 |
5.112-381.0 |
Bush |
|
| 35 |
5.009-667.0 |
Bracket right scraper lip |
|
| 35 |
5.044-867.0 |
Retainer strip splash guard |
|
| 35 |
7.312-054.0 |
Washer 12-A2 ISO 7090 |
|
| 35 |
7.304-504.0 |
Hexagonal head screw M8x50-A2-70 ISO 40 |
|
| 36 |
5.116-339.0 |
Threaded bolt |
|
| 36 |
5.009-401.0 |
Bracket right scraper lip |
|
| 36 |
5.515-096.0 |
Roller |
|
| 36 |
6.347-084.0 |
Flanged bushing |
|
| 37 |
5.033-666.0 |
Hand wheel |
|
| 37 |
5.009-402.0 |
Bracket left scraper lip |
|
| 37 |
7.306-146.0 |
Cylinder head screw M12x70 -A4-70 ISO 4 |
|
| 37 |
5.062-138.0 |
Sheet metal component retainer |
|
| 38 |
6.330-407.0 |
Spring clip |
|
| 38 |
5.116-339.0 |
Threaded bolt |
|
| 38 |
7.304-034.0 |
Hexagonal head screw M12x120-A2-70 ISO |
|
| 39 |
6.613-288.0 |
Direct current motor |
|
| 39 |
5.033-666.0 |
Hand wheel |
|
| 39 |
7.311-074.0 |
Hexagon nut M 2-8-A2E ISO 4032 |
|
| 39 |
7.311-026.0 |
Hexagon nut M12-1.4305 ISO 10511 |
|
| 40 |
6.610-239.0 |
Carbon brush set ATAS |
|
| 40 |
6.610-216.0 |
Carbon brush set |
|
| 40 |
6.330-407.0 |
Spring clip |
|
| 40 |
6.635-560.0 |
Micro switch with roller lever IP 67 |
|
| 40 |
6.330-245.0 |
Extension spring |
|
| 40 |
6.363-234.0 |
Joint ring |
|
| 40 |
5.036-682.0 |
Washer |
|
| 40 |
5.008-369.0 |
Plate stiffener long |
|
| 41 |
6.646-329.0 |
Plug red 75A |
|
| 41 |
6.906-992.0 |
Roller brush black - BR 90 |
|
| 41 |
6.906-991.0 |
Roller brush green - BR 90 |
|
| 41 |
6.906-989.0 |
Roller brush white - BR 90 |
|
| 41 |
4.114-008.0 |
Microfibre roll complete BR 90 |
|
| 41 |
6.907-377.0 |
Roller brush red BR 90 |
|
| 41 |
6.906-990.0 |
Roller brush orange - BR 90 |
|
| 41 |
6.906-987.0 |
Roller brush green - BR 75 |
|
| 41 |
6.906-985.0 |
Roller brush white - BR 75 |
|
| 41 |
6.906-986.0 |
Roller brush orange - BR 75 |
|
| 41 |
6.906-988.0 |
Roller brush black - BR 75 |
|
| 41 |
6.907-415.0 |
Roller brush red BR 75 |
|
| 41 |
4.114-007.0 |
Microfibre roll complete BR 75 |
|
| 41 |
7.312-053.0 |
Washer 2,5-200HV-A3E ISO 7089 |
|
| 41 |
5.332-278.0 |
Helical spring |
|
| 42 |
6.646-330.0 |
Plug blue 75A |
|
| 42 |
6.646-329.0 |
Plug red 75A |
|
| 42 |
7.306-045.0 |
Screw M2x20 -8.8-A2R (In6Rd) |
|
| 42 |
7.304-097.0 |
Hexagonal head screw M8x70-8.8-A2E ISO |
|
| 43 |
5.064-269.0 |
Cover BD 750 |
|
| 43 |
6.646-330.0 |
Plug blue 75A |
|
| 43 |
5.064-308.0 |
Cover D 90 |
|
| 43 |
7.312-002.0 |
Washer 5-200HV-A3E ISO 7090 |
|
| 44 |
4.905-021.0 |
Disc brushes complete black BD75 |
|
| 44 |
4.905-020.0 |
Disc brushes complete nature BD75 |
|
| 44 |
4.905-018.0 |
Disc brushes complete red BD75 |
|
| 44 |
4.905-019.0 |
Disc brushes complete white BD75 |
|
| 44 |
7.303-107.0 |
Screw 5x16 -10.9-P2R (K-In6Rd) |
|
| 44 |
4.905-005.0 |
Disc brushes complete white BD 45/40 |
|
| 44 |
4.905-006.0 |
Disc brushes complete black BD 45/40 |
|
| 44 |
4.905-004.0 |
Disc brushes complete nature BD 45/40 |
|
| 44 |
4.905-003.0 |
Disc brush complete red 45 |
|
| 44 |
7.306-076.0 |
Screw M 5x12-ST- 8.8-A2R (IN6RD) |
|
| 45 |
6.388-248.0 |
Hose DN12,5 |
|
| 45 |
6.646-979.0 |
Switch contact |
|
| 46 |
6.390-892.0 |
Spiral hose NW12 |
|
| 46 |
6.388-482.0 |
Hose coupling |
|
| 47 |
2.885-062.0 |
Conversion kit spacer for Hubmotor |
|
| 48 |
7.303-112.0 |
Screw 6x20 -10.9-R2R (In6Rd) |
|
| 48 |
6.390-892.0 |
Spiral hose NW12 |
|
| 48 |
5.011-616.0 |
Sheet metal component spring B140R |
|
| 49 |
4.040-712.0 |
Holder brush-head |
|
| 49 |
4.481-239.0 |
Holder brush-head |
|
| 50 |
7.312-008.0 |
Washer 12-200HV-A3E ISO 7090 |
|
| 50 |
7.303-112.0 |
Screw 6x20 -10.9-R2R (In6Rd) |
|
| 50 |
7.401-134.0 |
Ball bearing 6203-2RS-WAELZLAGST DIN 625 |
|
| 50 |
5.036-685.0 |
Sleeve |
|
| 50 |
6.303-315.0 |
Screw 8 x 35 |
|
| 51 |
6.313-022.0 |
Spring clip |
|
| 51 |
4.481-261.0 |
Holder pivot point complete BR |
|
| 51 |
5.107-290.0 |
Bar brush-head |
|
| 52 |
7.343-047.0 |
Lock washer 10-FST-A2E DIN 6799 |
|
| 52 |
7.312-008.0 |
Washer 12-200HV-A3E ISO 7090 |
|
| 53 |
7.343-302.0 |
Lock washer 8 -St-ph DIN 6799 |
|
| 53 |
6.313-022.0 |
Spring clip |
|
| 54 |
4.762-447.0 |
Disk pad BD 75 |
|
| 54 |
7.343-047.0 |
Lock washer 10-FST-A2E DIN 6799 |
|
| 54 |
4.762-493.0 |
Disk pad D 90 |
|
| 55 |
6.371-253.0 |
Diamond pad yellow set 5x ?385 |
|
| 55 |
6.371-236.0 |
Diamond pad green set 5x ?385 |
|
| 55 |
6.371-252.0 |
Diamond pad white set 5x ?385 |
|
| 55 |
7.343-302.0 |
Lock washer 8 -St-ph DIN 6799 |
|
| 55 |
6.371-258.0 |
Diamond pad white set 5x ?457 |
|
| 55 |
6.371-239.0 |
Diamond pad green set 5x ?457 |
|
| 55 |
6.371-259.0 |
Diamond pad yellow set 5x ?457 |
|
| 56 |
7.303-096.0 |
Screw 4x22 -ST-10.9-R2R (IN6RD) |
|
| 56 |
6.388-545.0 |
Hose clip |
|
| 57 |
4.481-262.0 |
Holder pivot point complete BD |
|
| 57 |
5.010-121.0 |
Plate suspension |
|
| 57 |
4.481-261.0 |
Holder pivot point complete BR |
|
| 58 |
6.646-979.0 |
Switch contact |
|
| 58 |
5.035-424.0 |
Snap-fit |
|
| 59 |
7.303-107.0 |
Screw 5x16 -10.9-P2R (K-In6Rd) |
|
| 59 |
7.303-110.0 |
Screw 5x35 -10.9-R2R (In6Rd) |
|
| 60 |
6.388-482.0 |
Hose coupling |
|
| 60 |
4.035-472.0 |
Adapter set BR |
|
| 60 |
5.112-735.0 |
Sleeve |
|
| 60 |
5.036-686.0 |
Sleeve |
|
| 60 |
5.036-680.0 |
Plate |
|
| 61 |
5.035-424.0 |
Snap-fit |
|
| 62 |
4.035-473.0 |
Adapter set BD |
|
| 70 |
7.343-109.0 |
Locking ring 40x1,75 -ST-ph DIN 472 |
|
| 70 |
5.036-679.0 |
Cover plate |
|
| 80 |
5.036-670.0 |
Driveshaft PUR |
|
| 80 |
5.036-678.0 |
Cover plate |
|
| 80 |
5.070-720.0 |
Sweep drawer BR 120 |
|
| 90 |
7.343-015.0 |
Locking ring 15x1-FST-RF DIN 471 |
|
| 90 |
5.036-705.0 |
Side plate right |
|
| 90 |
5.036-713.0 |
Splash guard |
|
| 100 |
7.318-005.0 |
Parallel key 5x5x28-C45R DIN 6885 |
|
| 100 |
5.036-680.0 |
Plate |
|
| 100 |
5.036-712.0 |
Plate scraper lip left |
|
| 110 |
5.036-667.0 |
Belt pulley 69 mm |
|
| 110 |
5.036-679.0 |
Cover plate |
|
| 110 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 120 |
5.317-042.0 |
Wheel stud |
|
| 120 |
6.906-853.0 |
Roller brush red |
|
| 130 |
5.036-663.0 |
Holder-up |
|
| 130 |
5.036-713.0 |
Splash guard |
|
| 130 |
6.646-330.0 |
Plug blue 75A |
|
| 140 |
5.036-664.0 |
Lever locking part brush |
|
| 140 |
7.343-205.0 |
Lock washer 9-St-A2E DIN 6799 |
|
| 140 |
6.646-329.0 |
Plug red 75A |
|
| 150 |
7.312-277.0 |
Washer 8-200HV-A2E ISO7093-1 |
|
| 150 |
7.303-069.0 |
Screw M 8x25-ST-R3R (IN6RD) |
|
| 150 |
5.036-681.0 |
Lever |
|
| 160 |
7.306-218.0 |
Screw M 8x16-A2-70 DIN 7984 |
|
| 160 |
7.312-054.0 |
Washer 12-A2 ISO 7090 |
|
| 160 |
5.036-682.0 |
Washer |
|
| 170 |
5.036-674.0 |
Covering cap |
|
| 170 |
5.481-431.0 |
Pedal lever notch |
|
| 170 |
5.036-685.0 |
Sleeve |
|
| 180 |
7.312-017.0 |
Washer 8-A2 ISO 7089 |
|
| 180 |
5.036-683.0 |
Side plate left |
|
| 190 |
7.312-022.0 |
Serrated lock washer A8,4-1.4310 DIN679 |
|
| 190 |
4.058-468.0 |
Lever complete BD 100 |
|
| 190 |
5.036-684.0 |
Side plate right |
|
| 200 |
5.036-672.0 |
Bolt holder-up |
|
| 200 |
5.515-096.0 |
Roller |
|
| 200 |
5.036-686.0 |
Sleeve |
|
| 210 |
7.305-627.0 |
Countersunk screw M8x25-A2-70 ISO 10642 |
|
| 210 |
4.036-074.0 |
Retainer |
|
| 210 |
4.036-067.0 |
Adjusting lever complete |
|
| 220 |
7.303-037.0 |
Screw M5x10 -St-P2R (In6Rd) |
|
| 220 |
4.036-073.0 |
Adjusting lever complete |
|
| 220 |
7.303-048.0 |
Screw M6x20 -St-R3R (In6Rd) |
|
| 230 |
5.056-010.0 |
Rocker BR-VS |
|
| 230 |
7.303-108.0 |
Screw 5x20 -10.9-R2R (In6Rd) |
|
| 230 |
7.305-052.0 |
Countersunk screw M6x12 -A2-70 (In6Rd) |
|
| 240 |
5.036-699.0 |
Retainer plate transmission |
|
| 240 |
5.036-711.0 |
Plate |
|
| 240 |
5.515-326.0 |
Roller |
|
| 250 |
6.332-004.0 |
Pressure spring |
|
| 250 |
6.646-330.0 |
Plug blue 75A |
|
| 250 |
5.116-070.0 |
Bolt deflector roll |
|
| 260 |
6.646-329.0 |
Plug red 75A |
|
| 260 |
7.343-205.0 |
Lock washer 9-St-A2E DIN 6799 |
|
| 270 |
5.036-698.0 |
Locking part |
|
| 270 |
5.036-714.0 |
Brush housing R 120 |
|
| 280 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 280 |
5.190-261.0 |
Strip water distributor |
|
| 290 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 290 |
4.036-070.0 |
Holder |
|
| 300 |
7.304-406.0 |
Hexagonal head screw M 8x35-8.8-A2E IS |
|
| 300 |
5.036-723.0 |
Cover plate washer |
|
| 310 |
6.310-066.0 |
Star grip M 8 |
|
| 310 |
5.036-696.0 |
Plate |
|
| 320 |
7.303-048.0 |
Screw M6x20 -St-R3R (In6Rd) |
|
| 320 |
5.036-716.0 |
Шайба |
|
| 330 |
7.305-052.0 |
Countersunk screw M6x12 -A2-70 (In6Rd) |
|
| 330 |
7.305-053.0 |
Countersunk screw M6x16-A2-70 (IN6RD) |
|
| 340 |
7.303-128.0 |
Countersunk screw 5x20 -10.9-R2R (In6Rd |
|
| 340 |
7.312-054.0 |
Washer 12-A2 ISO 7090 |
|
| 350 |
4.036-080.0 |
Plate complete BD 100 |
|
| 350 |
5.036-698.0 |
Locking part |
|
| 360 |
5.122-470.0 |
Flange worked |
|
| 360 |
7.312-004.0 |
Washer 8 -200HV-A3E ISO 7090 |
|
| 370 |
7.343-115.0 |
Locking ring 47x1,75 -St-ph DIN 472 |
|
| 370 |
7.311-004.0 |
Hexagon nut M8 -8-A3E ISO 4032 |
|
| 380 |
6.454-075.0 |
Worm gearing |
|
| 380 |
7.304-406.0 |
Hexagonal head screw M 8x35-8.8-A2E IS |
|
| 390 |
5.122-462.0 |
Retainer transmission die casting |
|
| 390 |
6.310-066.0 |
Star grip M 8 |
|
| 400 |
5.036-715.0 |
Plate scraper lip right |
|
| 410 |
7.312-268.0 |
Washer 8 -A2 ISO 7094 |
|
| 410 |
7.306-089.0 |
Screw M6x12 -8.8-R2R (In6Rd) |
|
| 420 |
7.304-538.0 |
Hexagonal head screw M8x16-A4-70 ISO 40 |
|
| 420 |
7.303-128.0 |
Countersunk screw 5x20 -10.9-R2R (In6Rd |
|
| 430 |
6.373-689.0 |
Pipe clamp |
|
| 430 |
5.317-042.0 |
Wheel stud |
|
| 440 |
7.303-037.0 |
Screw M5x10 -St-P2R (In6Rd) |
|
| 440 |
5.036-722.0 |
Plate bolt holder R120 |
|
| 450 |
6.303-315.0 |
Screw 8 x 35 |
|
| 450 |
5.332-198.0 |
Нажимная пружина |
|
| 460 |
4.036-071.0 |
Holder complete |
|
| 460 |
6.680-084.0 |
Deflector roll set |
|
| 470 |
5.100-566.0 |
Shaft |
|
| 480 |
7.401-173.0 |
Ball bearing 6204-2RS-WAELZLAGST DIN 625 |
|
| 480 |
6.388-408.0 |
"""T-Hose nozzle 1/2"""" """ |
|
| 490 |
5.116-359.0 |
Sleeve |
|
| 490 |
5.116-106.0 |
Sleeve |
|
| 500 |
7.318-030.0 |
Parallel key 6x6x25 -C45R DIN 6885-1 |
|
| 510 |
7.303-067.0 |
Screw M8x16-ST-A3R (IN6RD) |
|
| 520 |
6.330-093.0 |
Extension spring |
|
| 530 |
6.388-559.0 |
Hose clip |
|
| 540 |
5.036-712.0 |
Plate scraper lip left |
|
| 540 |
6.388-482.0 |
Hose coupling |
|
