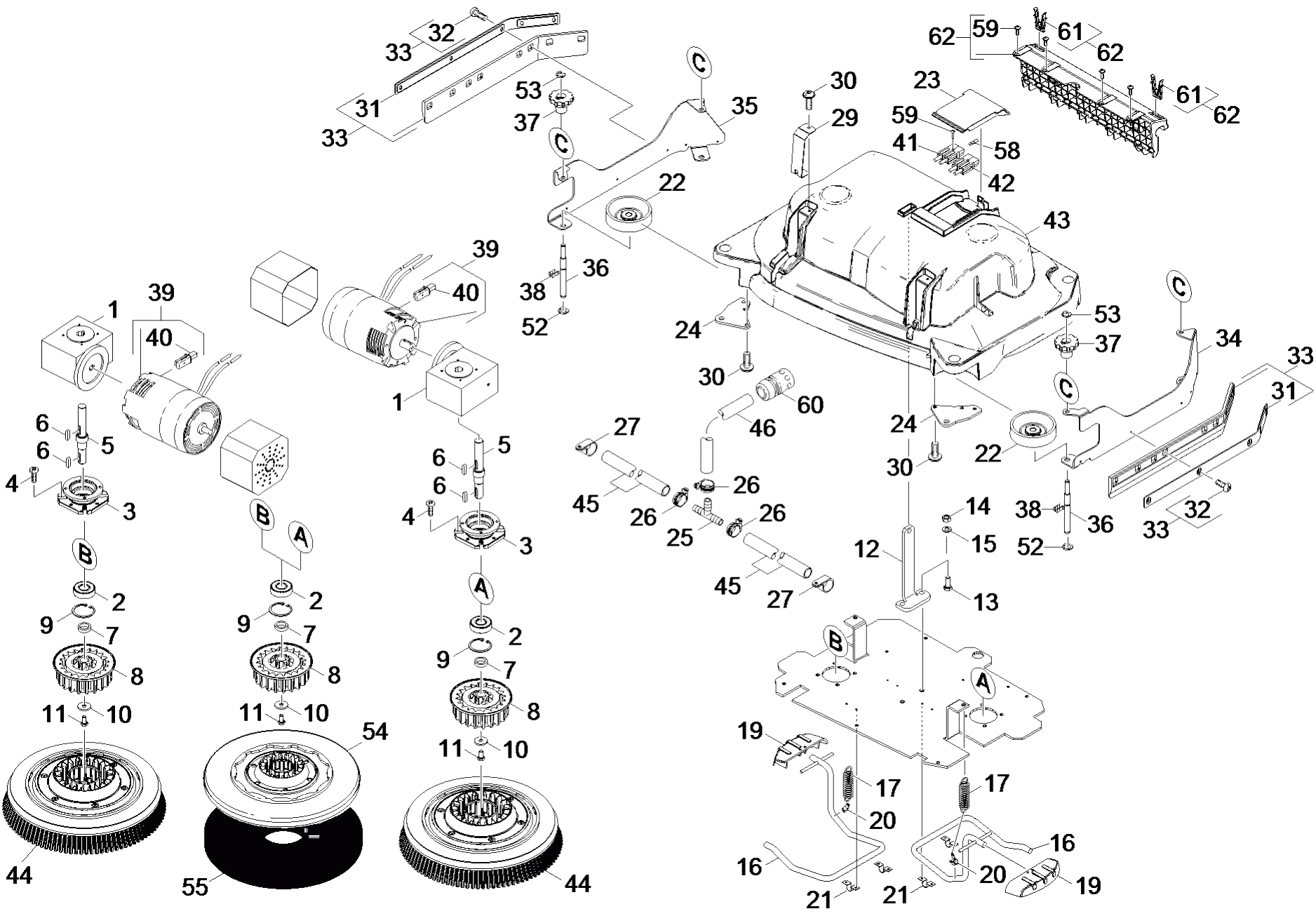

Karcher (Керхер) Верхняя часть насадки BD 90 S (0.166-783.0)

Karcher (Керхер) Верхняя часть насадки BD 90 S (0.166-783.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
REF. АРТИКУЛ ОПИСАНИЕ ЗАПРОС НАЛИЧИЯ / ЦЕНЫ
1 6.454-198.0 Worm gearing i=20
2 7.401-173.0 Ball bearing 6204-2RS-WAELZLAGST DIN 625
3 5.122-470.0 Flange worked
4 7.303-067.0 Screw M8x16-ST-A3R (IN6RD)
5 5.100-566.0 Shaft
6 7.318-030.0 Parallel key 6x6x25 -C45R DIN 6885-1
7 5.116-359.0 Sleeve
8 5.122-462.0 Retainer transmission die casting
9 7.343-115.0 Locking ring 47x1,75 -St-ph DIN 472
10 7.312-268.0 Washer 8 -A2 ISO 7094
11 7.304-538.0 Hexagonal head screw M8x16-A4-70 ISO 40
12 5.009-666.0 Plate suspension
13 7.304-801.0 Hexagonal head screw M10x25-A4-70 ISO 4
14 7.311-066.0 Hexagon nut M10-A2-70 ISO 4032
15 7.312-066.0 Washer 10 -A2 ISO 7090
16 4.058-161.0 Lever complete BD 55+65
17 6.330-093.0 Extension spring
19 5.481-431.0 Pedal lever notch
20 6.388-559.0 Hose clip
21 6.373-689.0 Pipe clamp
22 5.515-326.0 Roller
23 5.033-400.0 Cover BD
24 5.009-662.0 Bracket deflector roll
25 6.388-408.0 """T-Hose nozzle 1/2"""" """
26 6.388-546.0 Hose clip
27 6.641-460.0 Cable clamp
29 5.062-277.0 Bracket tension rod
30 7.303-113.0 Screw 6x25 -10.9-R2R (In6Rd)
30 7.303-112.0 Screw 6x20 -10.9-R2R (In6Rd)
31 5.044-867.0 Retainer strip splash guard
32 7.303-037.0 Screw M5x10 -St-P2R (In6Rd)
33 4.071-228.0 Set splash guard onesided
34 5.009-668.0 Bracket left scraper lip
35 5.009-667.0 Bracket right scraper lip
36 5.116-339.0 Threaded bolt
37 5.033-666.0 Hand wheel
38 6.330-407.0 Spring clip
39 6.613-288.0 Direct current motor
40 6.610-239.0 Carbon brush set ATAS
40 6.610-216.0 Carbon brush set
41 6.646-329.0 Plug red 75A
42 6.646-330.0 Plug blue 75A
43 5.064-269.0 Cover BD 750
43 5.064-308.0 Cover D 90
44 4.905-021.0 Disc brushes complete black BD75
44 4.905-020.0 Disc brushes complete nature BD75
44 4.905-018.0 Disc brushes complete red BD75
44 4.905-019.0 Disc brushes complete white BD75
44 4.905-005.0 Disc brushes complete white BD 45/40
44 4.905-006.0 Disc brushes complete black BD 45/40
44 4.905-004.0 Disc brushes complete nature BD 45/40
44 4.905-003.0 Disc brush complete red 45
45 6.388-248.0 Hose DN12,5
46 6.390-892.0 Spiral hose NW12
48 7.303-112.0 Screw 6x20 -10.9-R2R (In6Rd)
50 7.312-008.0 Washer 12-200HV-A3E ISO 7090
51 6.313-022.0 Spring clip
52 7.343-047.0 Lock washer 10-FST-A2E DIN 6799
53 7.343-302.0 Lock washer 8 -St-ph DIN 6799
54 4.762-447.0 Disk pad BD 75
54 4.762-493.0 Disk pad D 90
55 6.371-253.0 Diamond pad yellow set 5x ?385
55 6.371-236.0 Diamond pad green set 5x ?385
55 6.371-252.0 Diamond pad white set 5x ?385
55 6.371-258.0 Diamond pad white set 5x ?457
55 6.371-239.0 Diamond pad green set 5x ?457
55 6.371-259.0 Diamond pad yellow set 5x ?457
56 7.303-096.0 Screw 4x22 -ST-10.9-R2R (IN6RD)
57 4.481-262.0 Holder pivot point complete BD
58 6.646-979.0 Switch contact
59 7.303-107.0 Screw 5x16 -10.9-P2R (K-In6Rd)
60 6.388-482.0 Hose coupling
61 5.035-424.0 Snap-fit
62 4.035-473.0 Adapter set BD
