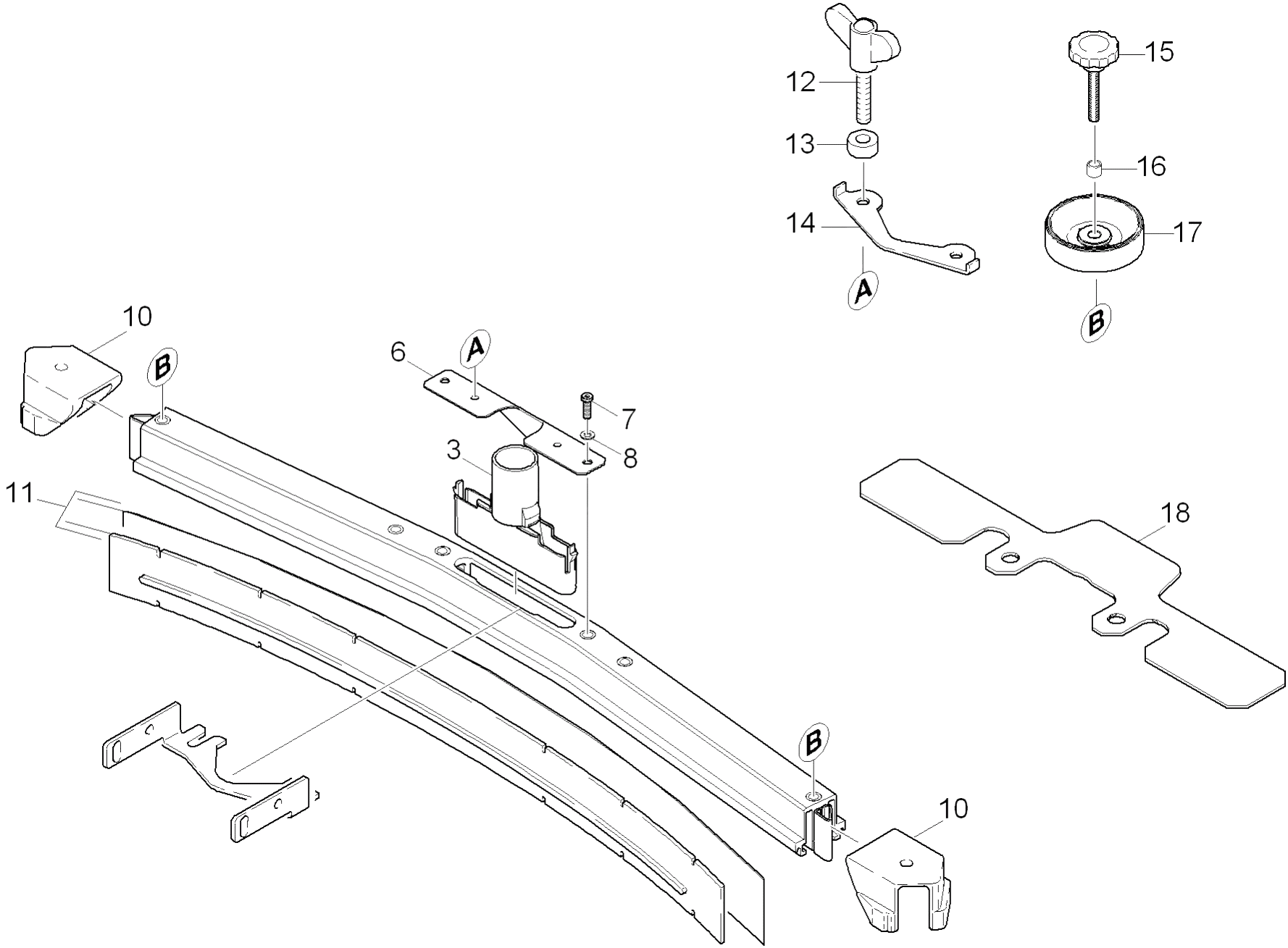

Karcher (Керхер) Всасывающая планка изогнутый 850mm (0.165-980.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

REF.	АРТИКУЛ	ОПИСАНИЕ
1	7.343-300.0	Lock washer 7-A2 DIN 6799
1	6.273-207.0	Rubber lip set oil resistant BR-BD530,55
1	6.273-290.0	BLADES FOR TEXTURED FLOORS
1	6.273-229.0	Rubber lip set anti stripe oil resistant
2	6.435-873.0	Piece of tube
3	5.033-601.0	Suction nipple
5	5.033-601.0	Suction nipple
6	5.100-559.0	Suction bar support plate
6	7.306-142.0	Cylinder head screw M 8x25-A4-70 ISO 47
7	7.306-142.0	Cylinder head screw M 8x25-A4-70 ISO 47
7	7.312-017.0	Washer 8-A2 ISO 7089
8	7.312-017.0	Washer 8-A2 ISO 7089
8	4.035-502.0	Gear complete synchronous run
9	5.035-403.0	Strip water distributor R 55
9	5.100-559.0	Suction bar support plate
10	2.885-294.0	End piece left / right spare parts set
10	5.035-393.0	Brushes retainer
11	6.273-229.0	Rubber lip set anti stripe oil resistant
11	6.273-213.0	Rubber lip set standard
11	6.273-207.0	Rubber lip set oil resistant BR-BD530,55
11	6.273-290.0	BLADES FOR TEXTURED FLOORS
11	5.035-389.0	Housing bottom part R 55
11	2.885-294.0	End piece left / right spare parts set
12	5.305-296.0	Wing screw M8x40 VA
12	5.035-399.0	Sweep tank R 55
13	5.112-810.0	Sleeve VA
14	5.007-217.0	Plate
14	5.035-447.0	Plug
15	6.321-239.0	Star grip VA ?50x43
16	5.094-231.0	Sleeve suction bar in VA
16	5.035-458.0	Brushes locking part
17	5.515-346.0	Deflector roll suction bar D120
17	5.515-267.0	Deflector roll suction bar
17	5.035-405.0	Housing top part locking part
18	5.128-339.0	Additional weight suction bar
18	7.303-113.0	Screw 6x25 -10.9-R2R (In6Rd)
19	4.035-339.0	Roller suction bar
19	5.035-394.0	Bolt deflector roll
20	5.304-098.0	Bolt
20	5.035-395.0	Deflector roll
21	7.311-431.0	Hexagon nut M 5-1.4305 ISO 10511
21	7.312-066.0	Washer 10 -A2 ISO 7090
22	6.321-240.0	Star grip with inscription VA ?50x43
23	5.332-504.0	Pressure spring
24	5.100-560.0	Additional weight suction bar 300 g
25	7.306-185.0	Screw M5x 35-A2-70 (IN6RD)
25	6.330-450.0	Pressure spring
26	7.343-303.0	Locking ring 8-A2 DIN 6799
26	4.035-417.0	Motor replacement
27	6.435-401.0	Wheel D54
27	7.312-026.0	Washer 6 -A2 ISO 7090
28	7.306-196.0	Screw M 6x30-A2-70 (IN6RD)
30	6.612-764.0	Blower wheel
31	6.343-149.0	Quick-fastener
33	7.303-039.0	Screw M5x16 -St-A2R (In6Rd)
34	5.035-385.0	Cover gear
35	4.035-425.0	Toothed belt replacement
36	7.401-115.0	Ball bearing 6002-2RS -WAELZLAGST DIN 62
38	4.035-423.0	Shaft replacement synchronous run
39	5.035-384.0	Carrier motor worked R
40	7.306-089.0	Screw M6x12 -8.8-R2R (In6Rd)
41	5.035-684.0	Covering cap gear
42	5.101-104.0	Приводной вал
43	5.110-686.0	Spacer sleeve
44	7.343-231.0	Locking ring 32x1,2 -St-ph DIN 472
45	5.056-010.0	Rocker BR-VS
46	5.625-507.0	Belt pulley 56Z
47	7.312-276.0	Washer 6 -200HV-A2E ISO7093-1
48	6.304-180.0	Screw M6X12-A2/70-ISO7045 (IN6RD)
49	6.363-469.0	Joint ring stainless steel Nilos 6002
50	6.288-095.0	Viscous oil
51	4.762-410.0	Roller brush complete orange BR 55/40
51	4.762-409.0	Roller brush complete white BR 55/40
51	4.762-412.0	Roller brush complete black BR 55/40
51	4.762-411.0	Roller brush complete green BR 55/40
51	4.762-393.0	Roller brush complete red BR 55/40
52	5.035-390.0	Housing top part R 55
53	5.332-114.0	Helical spring
55	5.035-424.0	Snap-fit
56	5.035-448.0	Wire protecting sleeve
57	6.648-064.0	Cable bushing
58	5.035-386.0	Cover electric box
59	5.035-604.0	Suspension seal brush-head BD
60	7.303-037.0	Screw M5x10 -St-P2R (In6Rd)
65	6.390-892.0	Spiral hose NW12
66	6.388-482.0	Hose coupling
67	7.303-186.0	Saucer-head screw M8x40 -St-A0P DIN 603
68	4.250-083.0	Tension roller D = 33,5
69	5.110-700.0	Sleeve
70	7.312-017.0	Washer 8-A2 ISO 7089
71	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
72	5.035-401.0	Rubberlip synchronous run R 55
73	4.035-459.0	Holder complete
74	7.303-112.0	Screw 6x20 -10.9-R2R (In6Rd)
75	5.035-673.0	Sliding shoe
76	6.343-261.0	Quick-fastener
77	2.882-737.0	Conversion kit R55-Kopf B40
