Karcher (Керхер) боковая щетка (2.640-720.3)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

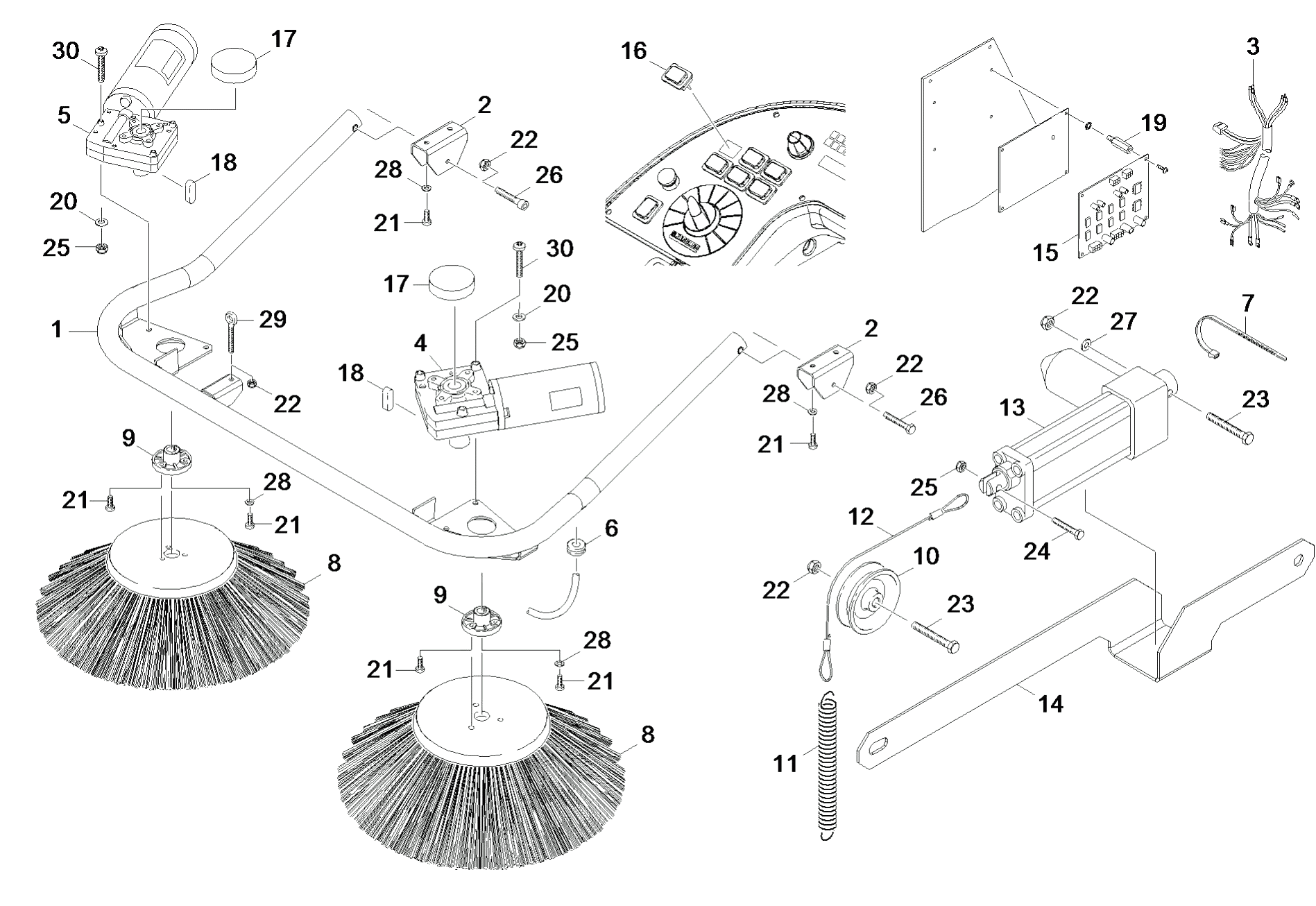

REF.	АРТИКУЛ	ОПИСАНИЕ
1	4.034-127.0	Retaining bracket side broom
2	5.044-722.0	Holder side broom
3	4.822-363.0	Cable harness side broom
4	6.454-166.0	Gear motor side broom left
5	6.454-140.0	Gear motor side broom
6	6.647-365.0	Cable gland
7	6.641-464.0	Cable tie
8	6.905-986.0	Side broom
9	5.120-343.0	Hub
10	6.431-151.0	Rope roller D70
11	6.413-393.0	Extension spring
12	6.431-160.0	Rope
13	6.613-334.0	Hoisting motor side broom BR 100 - 250 R
14	5.008-812.0	Plate hoisting motor
15	6.682-747.0	Control circuit board lifting module
16	6.632-486.0	Switch two-pole pre-sweep
17	6.368-399.0	Protecting cap
18	7.318-002.0	Parallel key 5x5x16 -C45R DIN 6885-1
19	6.316-135.0	Bolt hexagon L40,M3
20	7.312-003.0	Washer 6 -200HV-A3E ISO 7090
21	7.306-031.0	Screw M 6x16-A2-70 DIN 7984
22	7.311-427.0	Hexagon nut M8 -04-A2E ISO 10511
23	7.304-407.0	Hexagonal head screw M 8x45-8.8-A2E ISO
24	7.306-094.0	Screw M6x25 -8.8-R3R (In6Rd)
25	7.311-425.0	Hexagon nut M6 -04-A2E ISO 10511
26	7.304-096.0	Hexagonal head screw M8x60-8.8-A2E ISO
27	7.312-004.0	Washer 8 -200HV-A3E ISO 7090
28	7.312-260.0	Washer 6 -100HV-A3E ISO 7094
29	7.303-259.0	Eye screw BM 8x40-4.6-A2E DIN 444
30	7.306-201.0	Screw M 6x55-A2-70 (IN6RD)
