Karcher (Керхер) Корпус (0.207-329.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

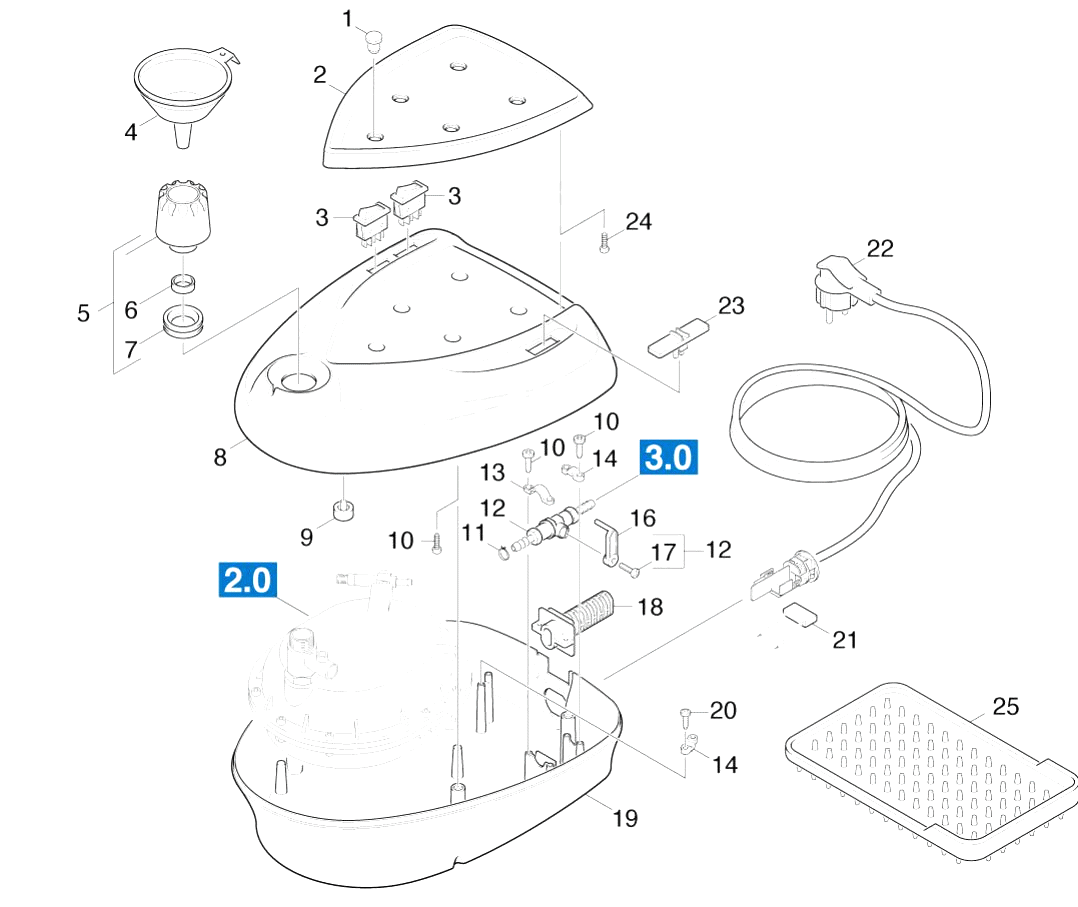

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.998-011.0	Plug
2	6.648-034.0	Cable white 1,0mm?x350mm
2	6.998-012.0	Rubber mating
3	6.686-006.0	Control valve mechanical
3	6.998-013.0	Switch
3	6.412-280.0	Pressure controller
4	6.686-008.0	Solenoid valve
4	6.962-097.0	Filling funnel
4	6.389-862.0	Hose silicon DN4
5	5.767-006.0	Rubber buffer
5	6.370-831.0	Safety lock -POLTI SLDB0198
5	6.389-882.0	Hose clip 8,5-10,0
6	5.028-765.0	Tube hotwater
6	6.370-936.0	Seal safety valve -POLTI M0001610
6	6.686-077.0	Solenoid valve without regulation
7	6.648-438.0	Cable set repair
7	6.370-832.0	Rubber ring safety valve
8	6.412-280.0	Pressure controller
8	6.998-062.0	Housing top part with label K 1801 B
9	6.998-020.0	Plug
10	6.303-318.0	Screw 3,5x12-10.9-R2R (IN6RD)
11	5.673-119.0	Insulating
11	7.311-001.0	Hexagon nut M4 -8-A2E ISO 4032
11	6.389-882.0	Hose clip 8,5-10,0
12	7.312-230.0	Serrated lock washer A4,3-FSt-A3E DIN67
12	6.998-021.0	Tap complete
13	2.881-023.0	Set of gaskets
13	6.362-922.0	O-Ring seal 8,73x1,78
13	6.630-052.0	Thermostat
13	6.630-154.0	Thermostat
13	6.998-022.0	Прижимная скоба
14	6.641-239.0	Tab
14	6.998-023.0	Clamp clip
15	6.362-186.0	O-Ring seal 7,65X 1,78
15	5.110-652.0	Spacer sleeve
16	4.744-110.0	Spare parts set thermostat
16	4.744-122.0	Conversion kit thermostat
16	5.048-140.0	Holder INTERCONTROL
16	6.998-024.0	Lever
17	6.630-051.0	SAFETY THERMOSTAT
17	6.303-013.0	Self-tapping screw M3x 8-St-A2E
18	5.316-867.0	Distance pin M4
18	6.998-025.0	Bend protection
19	5.048-127.0	Sheet metal component
19	6.998-026.0	Housing bottom part
20	6.998-027.0	Screw 2,9X19
21	6.998-028.0	Capacitor 0,033MF
22	6.998-014.0	Cable complete
23	6.998-015.0	Slider
25	6.277-569.0	Side extension for smoothing iron
