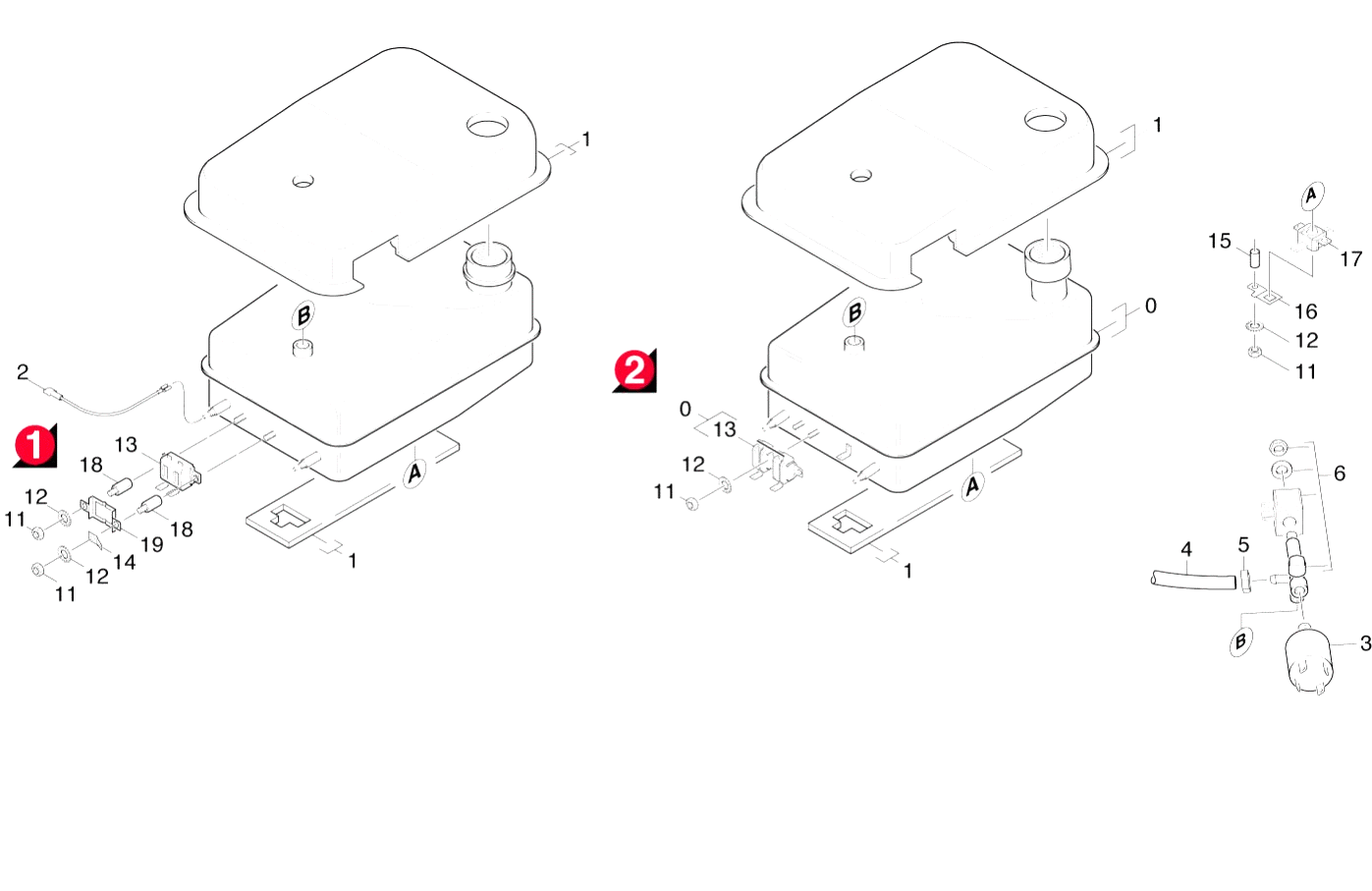

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 4.070-315.0 | Boiler complete | |
| 0 | 4.070-316.0 | Котёл комплектный только для замены * A | |
| 1 | 4.673-003.0 | Insulating complete only for replacement | |
| 2 | 6.648-034.0 | Cable white 1,0mm?x350mm | |
| 3 | 6.412-280.0 | Pressure controller | |
| 4 | 6.389-862.0 | Hose silicon DN4 | |
| 5 | 6.389-882.0 | Hose clip 8,5-10,0 | |
| 6 | 5.326-013.0 | Push button | |
| 6 | 5.326-022.0 | Push button RAL 9005 | |
| 6 | 6.686-077.0 | Solenoid valve without regulation | |
| 7 | 5.481-234.0 | Lever notch | |
| 8 | 6.343-170.0 | Retaining clip | |
| 9 | 4.031-049.0 | Plug socket | |
| 9 | 4.031-029.0 | Plug socket | |
| 11 | 5.031-584.0 | Moulded part | |
| 11 | 7.311-001.0 | Hexagon nut M4 -8-A2E ISO 4032 | |
| 12 | 5.767-010.0 | Rubber buffer | |
| 12 | 7.312-230.0 | Serrated lock washer A4,3-FSt-A3E DIN67 | |
| 13 | 5.060-977.0 | Housing bottom part | |
| 13 | 5.060-714.0 | Housing bottom part | |
| 13 | 6.630-052.0 | Thermostat | |
| 13 | 6.630-154.0 | Thermostat | |
| 14 | 6.435-348.0 | Castor | |
| 14 | 6.641-239.0 | Tab | |
| 15 | 7.303-108.0 | Screw 5x20 -10.9-R2R (In6Rd) | |
| 15 | 5.110-652.0 | Spacer sleeve | |
| 16 | 6.649-080.0 | Cable with plug *AUS | |
| 16 | 6.647-841.0 | Cable with plug *GB | |
| 16 | 6.647-653.0 | Кабель с штепсель *CH | |
| 16 | 6.647-498.0 | Cable with plug *EU | |
| 16 | 5.048-140.0 | Holder INTERCONTROL | |
| 17 | 6.643-555.0 | Strip terminal | |
| 17 | 6.630-051.0 | SAFETY THERMOSTAT | |
| 18 | 5.316-867.0 | Distance pin M4 | |
| 19 | 6.389-862.0 | Hose silicon DN4 | |
| 19 | 5.048-127.0 | Sheet metal component | |
| 20 | 6.389-993.0 | Hose clip 7,5 - 9,0 | |
| 21 | 4.039-041.0 | Cable set K 1102 | |
| 23 | 6.363-277.0 | O-Ring seal yellow |
