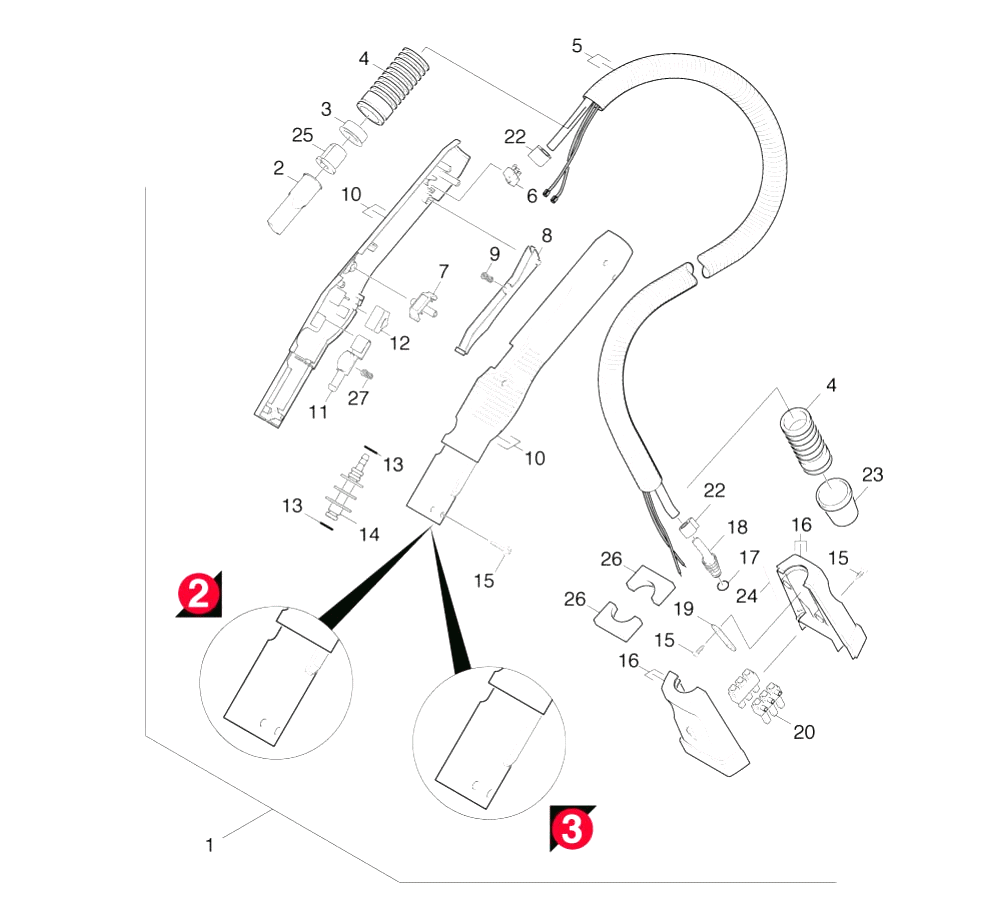

Karcher (Керхер) Шланг (0.206-608.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 0 |
4.130-115.0 |
Window nozzle |
|
| 1 |
4.321-091.0 |
Steam hose complete grey RAL 7004 |
|
| 1 |
4.321-085.0 |
Шланг подачи пара |
|
| 1 |
7.306-182.0 |
Pan head screw M5x16 -A2-70 ISO 14583 |
|
| 1 |
5.768-035.0 |
Top part nozzle |
|
| 2 |
5.367-024.0 |
Diaphragm |
|
| 2 |
6.362-922.0 |
O-Ring seal 8,73x1,78 |
|
| 3 |
5.367-025.0 |
Ring diaphragm |
|
| 3 |
6.960-005.0 |
O-Ring seal 6 ST. |
|
| 3 |
4.768-016.0 |
Nozzle body only for replacement |
|
| 4 |
2.863-058.0 |
Bristle rink set |
|
| 4 |
5.394-374.0 |
Protection part |
|
| 4 |
6.960-055.0 |
Поэзия |
|
| 5 |
6.362-924.0 |
O-Ring seal 6,02X 2,62 |
|
| 5 |
4.440-603.0 |
Hose complete black nur fuer Ersatz |
|
| 5 |
6.273-140.0 |
Rubber lip |
|
| 6 |
6.631-802.0 |
Micro switch |
|
| 6 |
6.960-046.0 |
Зажим для трубок |
|
| 6 |
6.960-098.0 |
Fuse RUECKST. |
|
| 6 |
6.303-058.0 |
Oval head screw 2,9X 13-ST-VERZ |
|
| 7 |
5.063-705.0 |
Cover pistol grey RAL 7004 |
|
| 7 |
6.960-045.0 |
Шланг |
|
| 7 |
6.960-057.0 |
Thermostat W.MANGEL |
|
| 8 |
5.324-029.0 |
Pushbutton |
|
| 8 |
6.960-161.0 |
Sheet metal component |
|
| 9 |
5.332-168.0 |
Pressure spring |
|
| 9 |
7.303-102.0 |
Screw 3,5x12 -A2-70-bk (In6Rd) |
|
| 10 |
5.321-468.0 |
Захватная пара |
|
| 10 |
5.321-510.0 |
Handhold few grey RAL 7004 |
|
| 10 |
7.312-234.0 |
Serrated lock washer A3,2 -FSt-A3E DIN6 |
|
| 11 |
5.037-102.0 |
Hook |
|
| 11 |
7.306-203.0 |
Screw M 3X 8-A2-70 (IN6RD) |
|
| 12 |
5.031-064.0 |
Slider |
|
| 12 |
6.960-146.0 |
Торсионная пружина |
|
| 13 |
6.362-922.0 |
O-Ring seal 8,73x1,78 |
|
| 13 |
6.960-170.0 |
Connection steam |
|
| 14 |
4.471-001.0 |
Coupling element complete only for repla |
|
| 14 |
6.960-172.0 |
Flat gasket |
|
| 15 |
6.303-058.0 |
Oval head screw 2,9X 13-ST-VERZ |
|
| 15 |
6.960-171.0 |
Seal screw |
|
| 16 |
5.031-060.0 |
Plug shells |
|
| 16 |
7.313-032.0 |
Spring washer A 5-Edelstahl DIN 128 |
|
| 17 |
6.362-923.0 |
O-Ring seal 6,75X 1,78 |
|
| 17 |
7.303-071.0 |
Sheet metal screw ST4,2X9,5 -St-A2K (In |
|
| 18 |
5.409-515.0 |
Nipple for steam hose |
|
| 19 |
6.647-513.0 |
Strain relief |
|
| 19 |
6.960-158.0 |
Поэзия |
|
| 20 |
6.646-325.0 |
Plug element |
|
| 20 |
7.306-183.0 |
Screw M5x20 -A2-70 (In6Rd) |
|
| 21 |
6.960-160.0 |
Труба |
|
| 21 |
6.960-162.0 |
Sheet metal component |
|
| 22 |
6.389-884.0 |
Hose clip 11,8 |
|
| 23 |
7.303-062.0 |
Sheet metal screw ST3,5X 9,5-ST-A2R (IN |
|
| 24 |
5.363-354.0 |
Seal |
|
| 24 |
7.312-230.0 |
Serrated lock washer A4,3-FSt-A3E DIN67 |
|
| 25 |
5.031-123.0 |
Strain relief |
|
| 25 |
6.600-105.0 |
Plug socket element black |
|
| 25 |
6.960-152.0 |
Обогрев |
|
| 26 |
5.364-174.0 |
Flat gasket |
|
| 26 |
6.960-153.0 |
Seal |
|
| 27 |
5.332-373.0 |
Helical spring |
|
