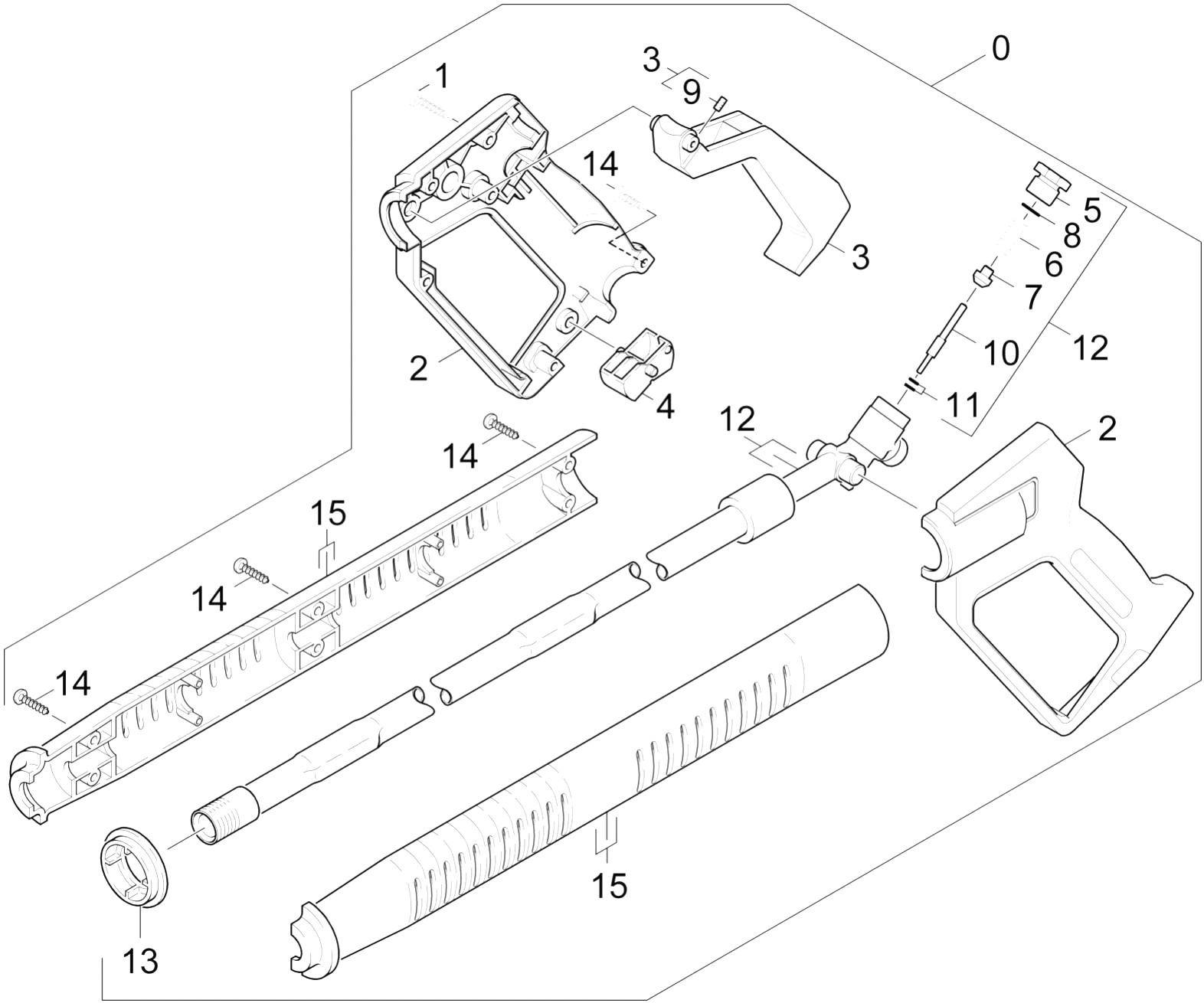

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 1 | 7.303-096.0 | Screw 4x22 -ST-10.9-R2R (IN6RD) | |
| 2 | 7.312-277.0 | Washer 8-200HV-A2E ISO7093-1 | |
| 2 | 5.321-230.0 | Handhold few | |
| 3 | 5.110-760.0 | Sleeve | |
| 3 | 4.481-050.0 | Lever | |
| 4 | 7.304-097.0 | Hexagonal head screw M8x70-8.8-A2E ISO | |
| 4 | 5.481-052.0 | Lever | |
| 5 | 7.312-166.0 | Toothed lock washer A8,4-FSt-A3E DIN 67 | |
| 5 | 5.411-067.0 | Screw plug | |
| 6 | 7.312-004.0 | Washer 8 -200HV-A3E ISO 7090 | |
| 6 | 5.332-157.0 | Helical spring | |
| 7 | 6.310-081.0 | Cage nut M 8 | |
| 7 | 5.582-117.0 | Valve disc | |
| 8 | 5.050-111.0 | Frame | |
| 8 | 6.362-584.0 | O-Ring seal 12,42X 1,78 | |
| 9 | 6.303-031.0 | Screw M8x16-ST-A2R DIN 7500-1 | |
| 9 | 7.307-417.0 | Threaded pin M8x16 -45H-A2E ISO 4026 | |
| 10 | 6.343-161.0 | Lock washer | |
| 10 | 5.107-259.0 | Bar | |
| 11 | 7.303-037.0 | Screw M5x10 -St-P2R (In6Rd) | |
| 11 | 6.362-571.0 | O-Ring seal complete /1ST.-R | |
| 12 | 4.822-098.0 | Cable green/yellow 2,5mm?x900mm | |
| 12 | 4.427-184.0 | Manifold | |
| 12 | 4.822-102.0 | Cable green/yellow 1,5mm?x830mm | |
| 13 | 5.031-259.0 | Moulded part | |
| 14 | 5.316-400.0 | Bolt | |
| 14 | 6.303-025.0 | Oval head screw 4,2x16-St-vz | |
| 15 | 4.421-275.0 | Adapter pipelines | |
| 15 | 5.322-083.0 | Handhold few extended Low End | |
| 16 | 4.037-013.0 | Hook | |
| 17 | 5.110-596.0 | Sleeve | |
| 18 | 6.362-992.0 | O-Ring seal complete 2,6X1,9 | |
| 19 | 5.115-661.0 | Washer | |
| 20 | 4.363-691.0 | O-Ring seal kpl. -nur fuer Ersatz- | |
| 21 | 6.362-486.0 | O-Ring seal 4,7 X 1,9 -NBR 70 |
