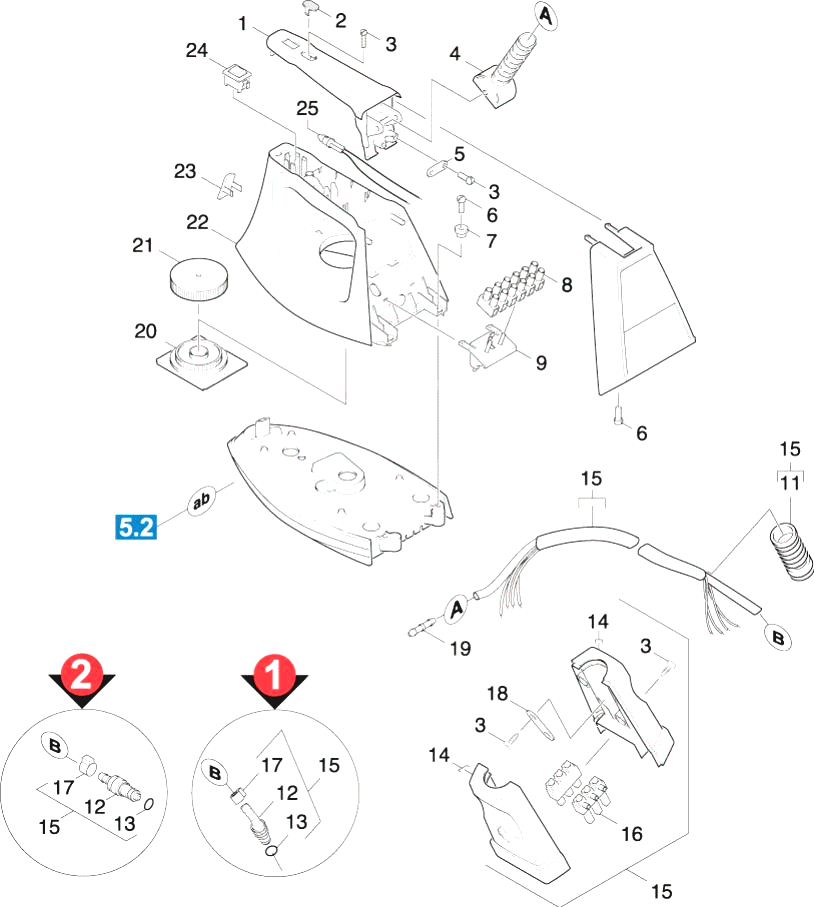

| REF. | АРТИКУЛ | ОПИСАНИЕ | ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
|---|---|---|---|
| 0 | 2.884-503.0 | BE with packing I 6002 | |
| 0 | 4.321-114.0 | Steam hose complete black RAL 9005 | |
| 0 | 4.321-088.0 | Steam hose complete grey RAL 7004 | |
| 1 | 5.321-596.0 | Handhold few black | |
| 1 | 6.960-104.0 | Covering cap handhold LGR | |
| 1 | 6.473-370.0 | Motor pump | |
| 1 | 5.066-824.0 | Cover | |
| 1 | 5.364-199.0 | Flat gasket DE 4002 | |
| 1 | 5.321-510.0 | Handhold few grey RAL 7004 | |
| 2 | 5.367-024.0 | Diaphragm | |
| 2 | 5.363-365.0 | Joint ring 30 | |
| 2 | 5.363-432.0 | Joint ring 30 | |
| 2 | 5.063-724.0 | Крышка | |
| 2 | 6.647-513.0 | Strain relief | |
| 3 | 6.303-058.0 | Oval head screw 2,9X 13-ST-VERZ | |
| 3 | 5.367-025.0 | Ring diaphragm | |
| 3 | 6.389-993.0 | Hose clip 7,5 - 9,0 | |
| 3 | 5.332-343.0 | Torsion spring cover | |
| 3 | 5.031-369.0 | Plug shells | |
| 4 | 6.960-106.0 | Kink-protection sleeve | |
| 4 | 5.394-374.0 | Protection part | |
| 4 | 5.363-366.0 | Joint ring 21 | |
| 4 | 4.066-225.0 | Комплект корпуса | |
| 4 | 4.066-307.0 | Комплект корпуса | |
| 4 | 6.303-275.0 | Винт 3x13-ST-A2R (Kombi-IN6RD 15) | |
| 5 | 4.440-603.0 | Hose complete black nur fuer Ersatz | |
| 5 | 6.389-862.0 | Hose silicon DN4 | |
| 5 | 6.303-200.0 | Screw 5x25-IN6RD | |
| 5 | 6.390-162.0 | Hose clip | |
| 6 | 7.303-363.0 | Sheet metal screw ST3,5X16,0-A2-70 ISO | |
| 6 | 6.631-802.0 | Micro switch | |
| 6 | 6.389-799.0 | Hose D 3 x 1,35 | |
| 6 | 6.390-287.0 | Hose D 3 x 1,35 | |
| 6 | 5.031-405.0 | Cap | |
| 6 | 5.409-515.0 | Nipple for steam hose | |
| 7 | 5.324-029.0 | Pushbutton | |
| 7 | 6.906-024.0 | Hose sheathed | |
| 7 | 6.631-989.0 | Switch | |
| 7 | 6.362-923.0 | O-Ring seal 6,75X 1,78 | |
| 8 | 5.332-168.0 | Pressure spring | |
| 8 | 6.390-162.0 | Hose clip | |
| 8 | 5.031-375.0 | Retainer accessories | |
| 8 | 6.646-325.0 | Plug element | |
| 9 | 4.580-368.0 | Valve complete | |
| 9 | 6.414-439.0 | Filter fine dust | |
| 9 | 4.840-015.0 | Switch desk complete NEU | |
| 9 | 4.840-008.0 | Коммутационная консоль комплектный ALT | |
| 9 | 6.647-599.0 | Brigde | |
| 10 | 5.322-010.0 | Hand wheel | |
| 10 | 6.362-411.0 | O-Ring seal 25,0 X 2,0 -NBR 70 | |
| 10 | 5.394-400.0 | Protection part | |
| 11 | 5.394-374.0 | Protection part | |
| 11 | 5.031-064.0 | Slider | |
| 11 | 6.423-064.0 | Temperature gauge pointer | |
| 12 | 5.409-515.0 | Nipple for steam hose | |
| 12 | 5.553-339.0 | Piston | |
| 12 | 5.031-125.0 | Notch | |
| 12 | 5.321-529.0 | Turning knob | |
| 12 | 6.962-243.0 | Hose complete | |
| 13 | 6.362-923.0 | O-Ring seal 6,75X 1,78 | |
| 13 | 6.362-922.0 | O-Ring seal 8,73x1,78 | |
| 13 | 6.362-522.0 | O-Ring seal 24,0 X 2,0 | |
| 13 | 6.962-244.0 | Protection part | |
| 14 | 5.031-060.0 | Plug shells | |
| 14 | 5.037-102.0 | Hook | |
| 14 | 5.037-155.0 | Hook yellow | |
| 14 | 5.321-485.0 | Handhold turret | |
| 14 | 6.962-245.0 | Handhold few | |
| 15 | 4.400-009.0 | Hose BE | |
| 15 | 4.471-001.0 | Coupling element complete only for repla | |
| 15 | 5.363-371.0 | Seal | |
| 15 | 5.363-537.0 | Seal | |
| 15 | 6.962-246.0 | Micro switch | |
| 16 | 6.646-325.0 | Plug element | |
| 16 | 4.590-086.0 | """Safety lock 3/4"""" """ | |
| 17 | 6.389-992.0 | Hose clip | |
| 17 | 5.031-262.0 | Plug socket | |
| 17 | 6.962-247.0 | Pushbutton | |
| 18 | 6.647-513.0 | Strain relief | |
| 18 | 6.303-058.0 | Oval head screw 2,9X 13-ST-VERZ | |
| 18 | 6.600-105.0 | Plug socket element black | |
| 19 | 5.031-060.0 | Plug shells | |
| 19 | 5.032-780.0 | Plug shells | |
| 19 | 5.409-514.0 | Nipple | |
| 20 | 6.362-923.0 | O-Ring seal 6,75X 1,78 | |
| 20 | 5.363-364.0 | Seal | |
| 20 | 6.962-249.0 | Locking part | |
| 21 | 5.409-515.0 | Nipple for steam hose | |
| 21 | 5.047-352.0 | Sheet metal component | |
| 22 | 6.647-513.0 | Strain relief | |
| 22 | 6.641-402.0 | Wire protecting sleeve | |
| 22 | 6.962-096.0 | Nipple | |
| 23 | 6.646-325.0 | Plug element | |
| 23 | 6.647-881.0 | Cable gland | |
| 23 | 6.962-171.0 | Screw | |
| 24 | 6.960-125.0 | Switch | |
| 24 | 6.362-927.0 | O-Ring seal 21,89X 2,62 -EPDM | |
| 25 | 6.389-884.0 | Hose clip 11,8 | |
| 25 | 6.280-175.0 | Heat master paste | |
| 25 | 6.962-106.0 | O-Ring seal | |
| 26 | 5.031-123.0 | Strain relief | |
| 26 | 7.303-095.0 | Screw 4x 12-ST-10.9-R2R (IN6RD) | |
| 27 | 5.332-373.0 | Helical spring | |
| 27 | 5.363-347.0 | Seal | |
| 28 | 5.364-174.0 | Flat gasket |
