Karcher (Керхер) Верхняя часть (0.196-409.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

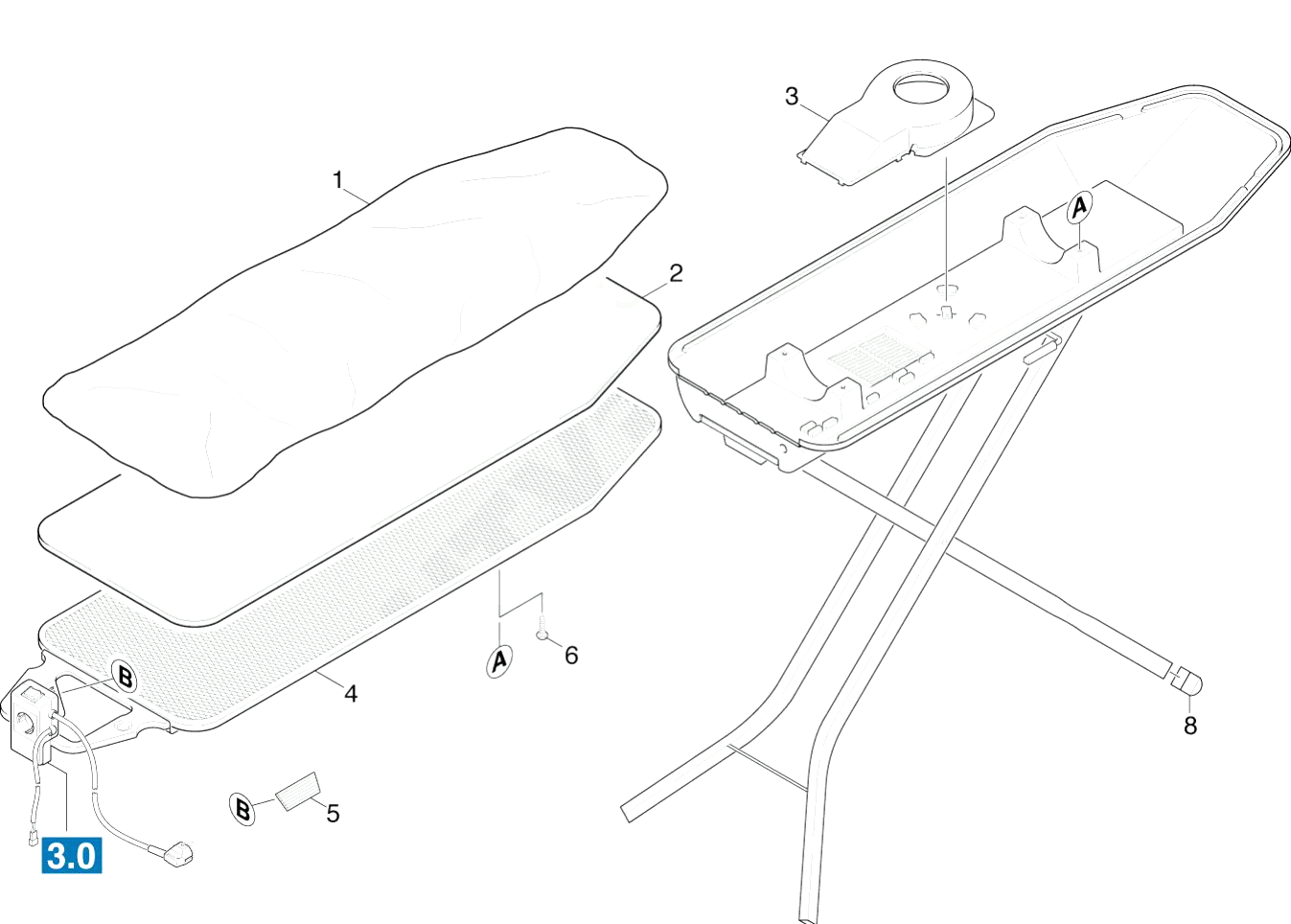

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.906-003.0	Ironing board cover
2	6.884-017.0	Heating surface complete NEU n.f.Ersatz
2	6.906-004.0	Support ironing board
2	6.884-002.0	Heating surface complete AB 1000
3	6.976-001.0	Предохранительная крышка
3	6.044-001.0	Holder cable AB 1000
4	6.976-002.0	Spacer
4	4.884-001.0	Strip insulating AB 1000
5	6.976-003.0	Фасонная деталь
5	5.033-135.0	Cover ironing board AB 1000
6	6.976-004.0	Шестигранный винт
6	4.518-006.0	Tray complete AB 1000
8	6.976-005.0	Protecting cap HAILO- 1040339
8	6.884-011.0	Blower replacement AB 1000
9	6.884-004.0	Switch complete AB 1000
10	6.884-016.0	Covering cap NEU n.f.Ersatz AB 1000
10	6.884-001.0	Covering cap for replacement AB 1000
11	6.884-013.0	Cable with strain relief AB1000 *CH
11	6.884-009.0	Cable with strain relief AB 1000
12	6.884-003.0	Holder AB 1000
12	6.884-018.0	Holder 16 St., n.f.Ersatz AB
13	6.884-010.0	Plug socket AB 1000
13	6.884-014.0	Plug socket AB 1000 *CH
14	6.884-007.0	Torsion spring AB 1000
15	6.884-006.0	Handhold AB 1000
16	6.884-008.0	Cap for frame AB 1000
17	6.343-132.0	Lock washer 8
