Karcher (Керхер) Детали (0.164-603.0)

Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85

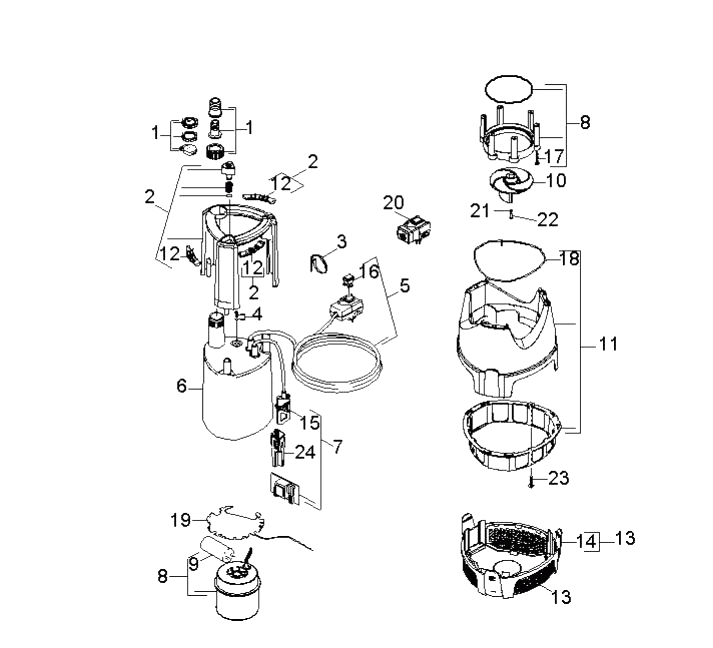

REF.	АРТИКУЛ	ОПИСАНИЕ
1	6.997-418.0	"""Connection for suction hose 1 1/4"""" """
2	4.645-070.0	Handhold complete for replacement
3	6.375-479.0	Strap /Velcro-Strap
4	4.645-061.0	Screw with O-Ring seal f.Ersatz
5	4.645-077.0	Cable with fixing f.Ersatz
5	4.645-089.0	Cable with fixing f.Ersatz *GB
5	4.645-088.0	Кабель с крепление f.Ersatz *CH
6	4.645-068.0	Housing neutrally for replacement
7	4.645-253.0	Sensor for replacement
8	4.645-076.0	Motor complete for replacement
9	4.645-276.0	Capacitor for replacement 16µF
10	5.645-040.0	Impeller /impeller dirt best
11	4.645-069.0	Chamber with covering cap f.Ersatz
12	4.645-021.0	Cover handhold complete / handle cap cpl
13	6.997-353.0	Prefilter immersion pumps Better
14	5.645-025.0	Clamp /filter clamp
15	4.645-156.0	Clamp replacement /clamp sensor
16	4.645-157.0	Switch replacement /switch
17	6.303-496.0	Screw 3,5x30
18	5.645-592.0	Seal SxP better/best
19	4.645-030.0	Plate complete / sheet metal earth w. wi
20	4.645-305.0	Штепсель для заменитель *CH
21	9.086-023.0	Зубчатый диск и5 A2
22	9.086-207.0	Винт M5x10 A2
23	6.645-543.0	Oval head screw 3,5x12-10.9-R2R
24	5.645-421.0	Housing Levelsensor
