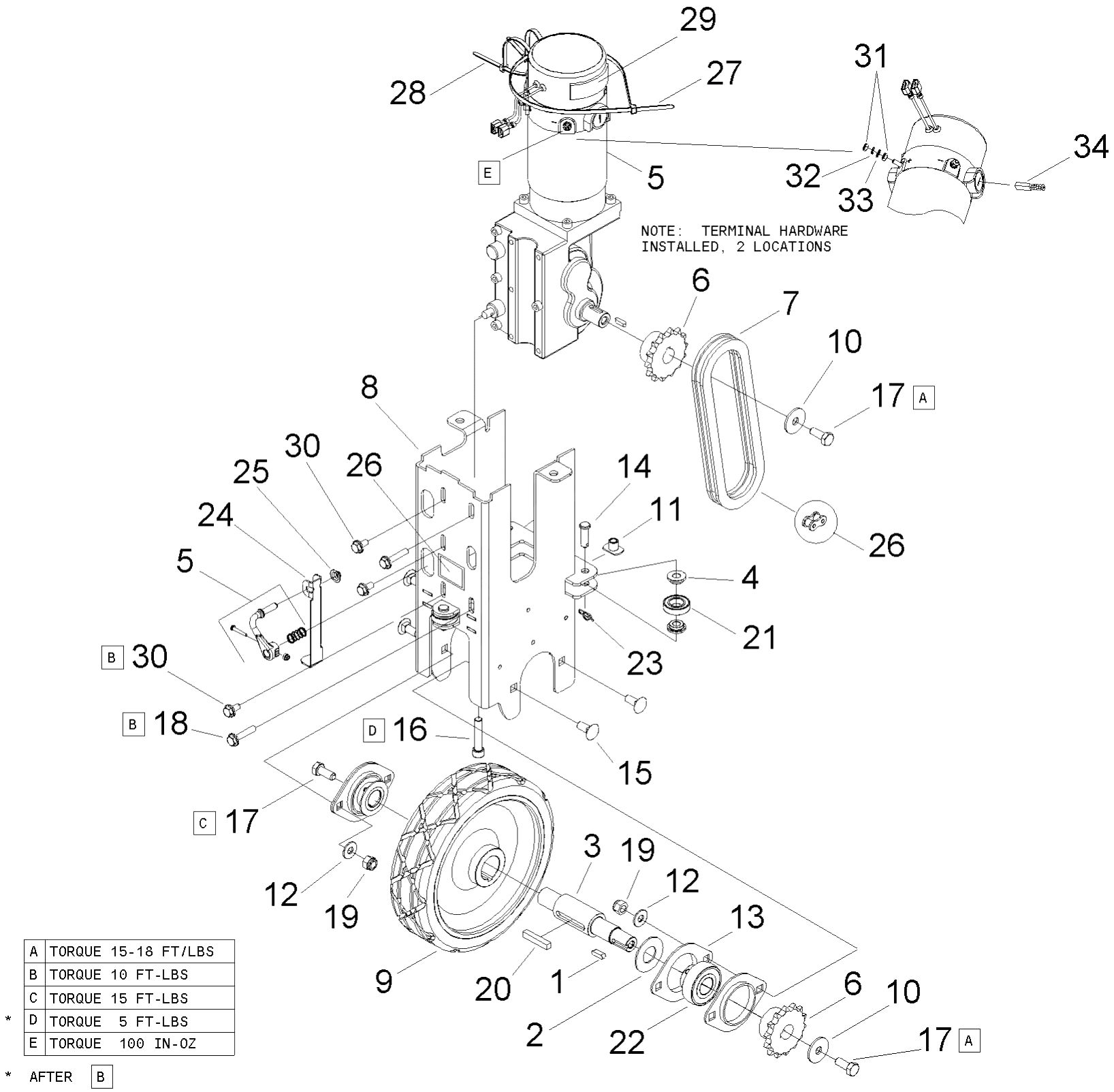

Karcher (Керхер) Привод переднее колесо (0.165-526.0)
Не нашли подходящую запчасть? Позвоните +7 (843) 503-04-85
| REF. |
АРТИКУЛ |
ОПИСАНИЕ |
ЗАПРОС НАЛИЧИЯ / ЦЕНЫ |
| 1 |
8.632-671.0 |
KEY, 5 X 5 X 16 |
|
| 2 |
8.632-167.0 |
Washer wheel spacer |
|
| 3 |
8.631-981.0 |
Axle drive wheel |
|
| 4 |
8.631-967.0 |
SLEEVE, BEARING |
|
| 5 |
8.636-401.0 |
MOTOR, TRACTION |
|
| 6 |
8.631-965.0 |
SPROCKET, DRIVE, 14T |
|
| 7 |
8.631-964.0 |
CHAIN, ISO 08B, 12.7MM PITCH |
|
| 8 |
8.631-962.0 |
FRAME, LOWER DRIVE |
|
| 9 |
8.631-689.0 |
X-REF TO 8.636-917.0 5-13 |
|
| 10 |
8.627-963.0 |
WASHER, 5/16 X 1.13 X .09 FLT |
|
| 11 |
8.634-849.0 |
NUT, WELD 5/16-18 X .38, TAB BASE, STL |
|
| 12 |
8.601-067.0 |
Washer 5/16 FLAT SS |
|
| 13 |
8.600-861.0 |
Flanged bearing PRESS STEEL |
|
| 14 |
8.627-255.0 |
PIN, CLEVIS, 5/16 X 1.00 PLTD |
|
| 15 |
8.627-607.0 |
SCR, 5/16-18 X 3/4 CARRIAGE SS |
|
| 16 |
8.636-213.0 |
SCR, 5/16 - 18 X 1.50 SHCS, SS, FT |
|
| 17 |
8.613-664.0 |
SCR, M8-1.25 X 20 HHMS PLTD |
|
| 18 |
8.636-215.0 |
SCREW, M6 X 30MM, HEX FLANGE, PLTD |
|
| 19 |
8.627-083.0 |
Nut 5/16-18 HEX NYLOCK SS |
|
| 20 |
8.621-964.0 |
Parallel key 1/4 SQ X 1.5 |
|
| 21 |
8.633-238.0 |
ROLLER, 1.1 OD |
|
| 22 |
8.600-103.0 |
Bearing BALL 3/4 BORE SPHERED |
|
| 23 |
8.600-866.0 |
"""Cotter 5/16"""" RING """ |
|
| 24 |
8.633-387.0 |
LEVER, DRIVE ENGAGEMENT |
|
| 25 |
8.627-124.0 |
NUT, CAP 1/4 DIA RETAINING PLT |
|
| 26 |
8.633-499.0 |
Этикетка вкл./выкл. |
|
| 27 |
8.600-283.0 |
Cable tie .375 X 24.7 |
|
| 28 |
8.626-492.0 |
"""CABLE TIE, 7"""" UL/CSA """ |
|
| 29 |
8.636-204.0 |
TAPE CLOSED CELL 1/8 X 3/4 X 2 1/2 PSA |
|
| 30 |
8.636-214.0 |
Hexagonal head screw M6x12mm |
|
| 31 |
8.628-850.0 |
NUT, M4 HEX |
|
| 32 |
8.613-485.0 |
WASHER,SPRNG LK,M4,DIN127B,SST |
|
| 33 |
8.637-223.0 |
WASHER, EXT TOOTH STAR |
|
| 34 |
8.633-199.0 |
BRUSH SET, SMALL RIDER, DRIVE MTR |
|
